Sound & Heat Control - Heat Insulation, Vehicle Fit

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Sound & Heat Control - Heat Insulation, Vehicle Fit

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

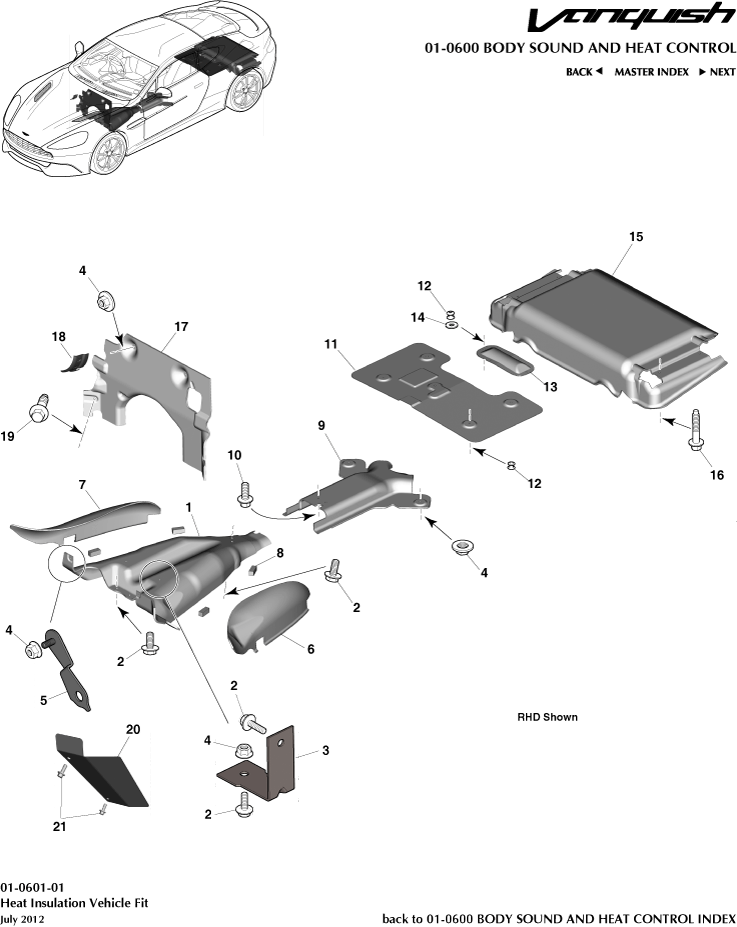

Sound & Heat Control - Heat Insulation, Vehicle Fit of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- HD335290AA
SHLD MFLR HT
'S' models 		- 1 Enquire
- 4G43017A16AG
HEATSHIELD - FRONT BULKHEAD - LHD
- 		- 1 Enquire
1 DG4311398AB
Heat Shield-Deflector, Front Floor
- 		- 1 Enquire
3 4G433962CD
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET
- 		- 2 Enquire
4 703612
Nut & Washer, M6, HVAC to XCB
- 		- 8 Enquire
5 4G433962GA
Bracket, Heat Deflector Support
- 		- 2 Enquire
6 CD3311398BB
Heat Shield, Cat Blister, LH
- 		- 1 Enquire
7 CD3311398AB
Heat Shield, Cat Blister RH
- 		- 1 Enquire
8 4G4346660AA
Foam Block, Parcel Shelf
- 		- 4 Enquire
11 4G439A032AG
Heat Shield, Fuel Tank
- 		- 1 Enquire
12 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 9 Enquire
13 4G439B184AB
Heat Shield, Fuel Tank, Auxiliary
- 		- 1 Enquire
14 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 4 Enquire
15 CD335290AC
Heat Shield, Rear Silencer
- 		- 1 Enquire
16 703145
M6 x 30 WSHR HO BOLT ASSY CHROME FREE
- 		- 4 Enquire
17 4G43017A16BG
HEATSHIELD - FRONT BULKHEAD - RHD
- 		- 1 Enquire
19 703155
SCREW/WASHER M8x25 CHROME FREE
- 		- 2 Enquire
20 ED3311399AA
DEFL FRT FLR HT
15MY 		- 1 Enquire
21 703265
Screw, M6 x 16, Hex Flange Head
15MY 		- 2 Enquire
22 22AA088GP
ASSY FNDR RR LH GT
'S' models 		- 1 Enquire
23 703612
Nut & Washer, M6, HVAC to XCB
'S' models 		- 1 Enquire
