Body Sealing - Door Weatherstrips, Coupe

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Body Sealing - Door Weatherstrips, Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

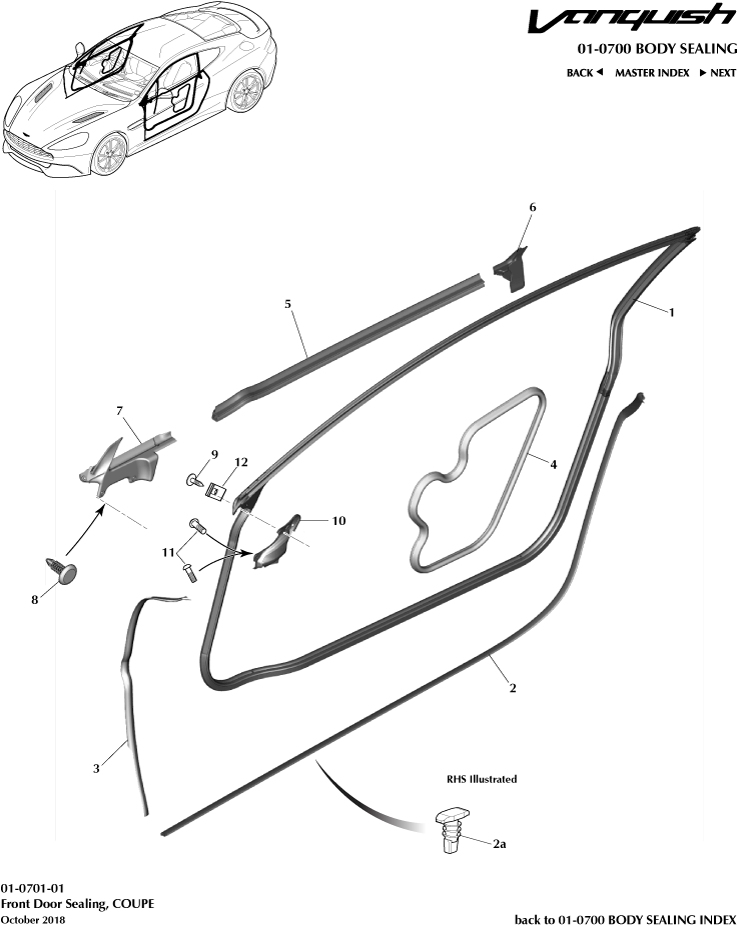

Body Sealing - Door Weatherstrips, Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33C20709AC
DR PRIM SEAL LH -CPE
- 		- 1 Enquire
- CD33C25325BA
MARGIN SEAL LWR RR
- 		- 1 Enquire
- CD33F20556AB
Seal, Margin, Front Door, RH
14.5MY 		- 1 Enquire
- 4G43F20557AF
Seal, Margin, Front Door, LH
- 		- 1 Enquire
- CD33F20557AB
Seal, Margin, Front Door, LH
14.5MY 		- 1 Enquire
- CD33F20571AB
Weather Strip, Door Inner Panel, LH
- 		- 1 Enquire
- 4G43F20921AC
Moulding Assembly, Front Door Trim Rear, LH
- 		- 1 Enquire
- CD33C20921BB
Moulding, Front Door Trim, LH
- 		- 1 Enquire
- CD33C02565AD
RET ASY FRT PLR LH
- 		- 1 Enquire
- 4G4320126AA
FELT-DR UPPER WINDOW SEAL
- 		- 2 Enquire
1 CD33C20708AC
DR PRIM SEAL RH CPE
- 		- 1 Enquire
2 CD33C25324BA
MARGIN W/STRP LWR RR
- 		- 1 Enquire
2a 4G43L25324BA
Clip, Weather Strip Retention
- 		- 2 Enquire
3 4G43F20556AF
Seal Margin Front Door RH
- 		- 1 Enquire
4 4G4354237A04AC
WEATHER STRIP DOOR INNER PANEL - DOOR TRIM
- 		- 2 Enquire
5 CD33F20570AB
Weather Strip, Door Inner Panel, RH
- 		- 1 Enquire
6 4G43F20920AC
Moulding Assembly, Front Door Trim Rear, RH
- 		- 1 Enquire
7 CD33C20920BB
Moulding, Front Door Trim, RH
- 		- 1 Enquire
8 702213
Pin, Push-in
- 		- 6 Enquire
10 CD33C02564AD
RET ASY FRT PLR RH
- 		- 1 Enquire
11 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head
- 		- 4 Enquire
12 702511
NUT SPG 4.8 x 0.70
- 		- 2 Enquire
