Body Sealing - Door Weatherstrips, Volante

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Body Sealing - Door Weatherstrips, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

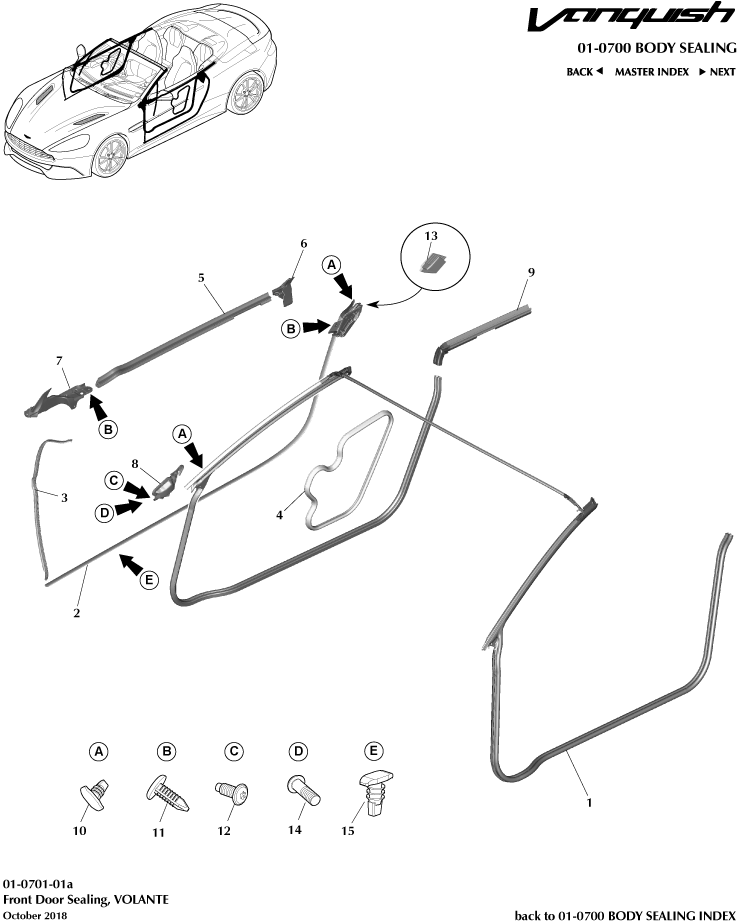

Body Sealing - Door Weatherstrips, Volante of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- ED33L25325AC
MARG SL ASY FRT DR
Includes Items 10 and 11 		- 1 Enquire
- CD33F20557AB
Seal, Margin, Front Door, LH
- 		- 1 Enquire
- ED33F20571AA
Weather Strip, Door Inner Panel, LH
- 		- 1 Enquire
- 4G43F20921AC
Moulding Assembly, Front Door Trim Rear, LH
- 		- 1 Enquire
- CD33C20921BB
Moulding, Front Door Trim, LH
Includes Item 11 		- 1 Enquire
- CD33C02565AD
RET ASY FRT PLR LH
- 		- 1 Enquire
- 4G43L29731AA
Weather Strip, Quarter Window Inner, LH
- 		- 1 Enquire
- ED3329123AA
Rear Quarter Seal Extn LH
- 		- 1 Enquire
1 ED33F20708AD
DR PRIM SEAL CONV
Includes Item 10 		- 1 Enquire
2 ED33L25324AC
MRG SEAL ASY FRT DR
Includes Items 10 and 11 		- 1 Enquire
3 CD33F20556AB
Seal, Margin, Front Door, RH
- 		- 1 Enquire
4 4G4354237A04AC
WEATHER STRIP DOOR INNER PANEL - DOOR TRIM
- 		- 2 Enquire
5 ED33F20570AA
Weather Strip, Door Inner Panel, RH
- 		- 1 Enquire
6 4G43F20920AC
Moulding Assembly, Front Door Trim Rear, RH
- 		- 1 Enquire
7 CD33C20920BB
Moulding, Front Door Trim, RH
Includes Item 11 		- 1 Enquire
8 CD33C02564AD
RET ASY FRT PLR RH
- 		- 1 Enquire
9 4G43L29730AD
Weather Strip, Quarter Window Inner, RH
- 		- 1 Enquire
11 702213
Pin, Push-in
-
IN STOCK 		- 14 Enquire
13 ED3329122AA
Rear Quarter Seal Extn RH
-
IN STOCK 		- 1 Enquire
14 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head
-
IN STOCK 		- 4 Enquire
15 4G43L25324BA
Clip, Weather Strip Retention
-
IN STOCK 		- 2 Enquire
