Instrument and Console Panels - Centre Stack Trim Panel of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Instrument and Console Panels - Centre Stack Trim Panel

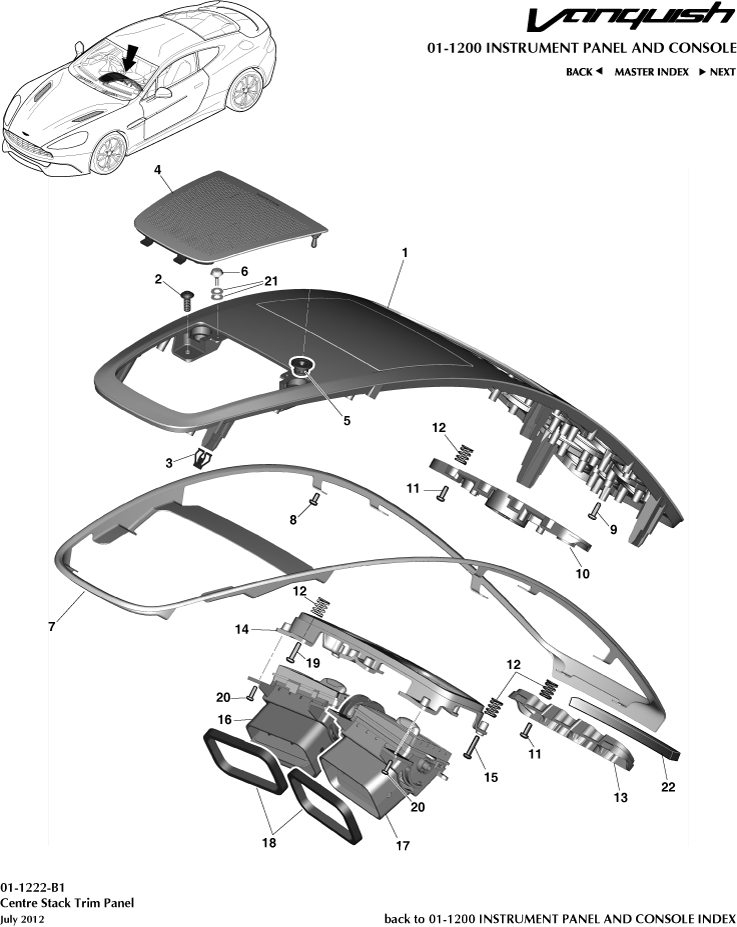

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

1 - 7 ED33-043C38-AA Bezel, Outer Air Register, RH 1 Satin Chrome - ED33-043C38-BA Bezel, Outer Air Register, RH 1 Dark Chrome 8 ED33-043C39-AA Bezel, Outer Air Register, LH 1 Satin Chrome - ED33-043C39-BA Bezel, Outer Air Register, LH 1 Dark Chrome 9 4G43 1 - 7 ED33-043C38-AA Bezel, Outer Air Register, RH 1 Satin Chrome - ED33-043C38-BA Bezel, Outer Air Register, RH 1 Dark Chrome 8 ED33-043C39-AA Bezel, Outer Air Register, LH 1 Satin Chrome - ED33-043C39-BA Bezel, Outer Air Register, LH 1 Dark Chrome 9 4G43
-

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33045J10BB	VNR ASY SAT NAV AUTO	CD33045J10BB VNR ASY SAT NAV AUTO Piano Red	-	1	Enquire
-	CD33045J10CB	VNR ASY SAT NAV AUTO	CD33045J10CB VNR ASY SAT NAV AUTO Piano Ice Mocha	-	1	Enquire
-	CD33045J10DB	VNR ASSY SAT NAV AUT	CD33045J10DB VNR ASSY SAT NAV AUT Iridium	-	1	Enquire
-	CD33045J10EC	VNR ASY SAT NAV AUTO	CD33045J10EC VNR ASY SAT NAV AUTO Twill Carbon Fibre	-	1	Enquire
-	CD33045J10FB	VNR ASY SAT NAV AUTO	CD33045J10FB VNR ASY SAT NAV AUTO Herringbone Carbon Fibre	-	1	Enquire
-	GD33045J10GA	VENEER ASSY SAT NAV	GD33045J10GA VENEER ASSY SAT NAV Cuprum Carbon	-	1	Enquire
-	HD33045J10AA	VNR ASY ST NV AUTO	HD33045J10AA VNR ASY ST NV AUTO Chopped Carbon	-	1	Enquire
-	CD33C046A26BA	Speaker Grille, Centre	CD33C046A26BA Speaker Grille, Centre Iridium	-	1	Enquire
-	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE -	-	1	Enquire
-	CD3314853AE	CENTRE STACK VNR	CD3314853AE CENTRE STACK VNR Black, 15MY on	-	1	Enquire
-	CD3314853CC	CTR STACK VNR FIN	CD3314853CC CTR STACK VNR FIN Iridium	-	1	Enquire
-	CD3314853CD	CTR STACK VNR FIN	CD3314853CD CTR STACK VNR FIN Iridium, 15MY on	-	1	Enquire
-	CD3319F648BD	Bezel, Air Register, Centre Stack	CD3319F648BD Bezel, Air Register, Centre Stack Shadow Bronze	-	1	Enquire
1	CD33045J10AB	VNR ASY SAT NAV AUTO	CD33045J10AB VNR ASY SAT NAV AUTO Piano Black	-	1	Enquire
2	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX -	-	2	Enquire
3	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	6	Enquire
4	CD33C046A26AA	Speaker Grille, Centre	CD33C046A26AA Speaker Grille, Centre Black	-	1	Enquire
5	DD3388420AA	Striker Catch, Centre Speaker	DD3388420AA Striker Catch, Centre Speaker -	-	2	Enquire
6	DD338C813AA	Bumper, Rubber	DD338C813AA Bumper, Rubber -	-	2	Enquire
7	CD3314853AD	CENTRE STACK VNR	CD3314853AD CENTRE STACK VNR Black	-	1	Enquire
8	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE -	-	12	Enquire
9	00RA374	SCREW - TORX - 3.5X12	00RA374 SCREW - TORX - 3.5X12 -	-	2	Enquire
10	DD3314A462AA	Switch Carrier, PRND & Starter Button	DD3314A462AA Switch Carrier, PRND & Starter Button -	-	1	Enquire
11	DD330863AA	Screw, M4 x12, Pan Hd, Patch Lock	DD330863AA Screw, M4 x12, Pan Hd, Patch Lock -	-	14	Enquire
12	DD3311A090AB	Compression Spring, Centre Stack Veneer	DD3311A090AB Compression Spring, Centre Stack Veneer -	-	18	Enquire
13	DD3314A462BA	LOWER SWITCH CARRIER	DD3314A462BA LOWER SWITCH CARRIER -	-	1	Enquire
14	CD3319F648AD	CTR STK AIR REG BZL	CD3319F648AD CTR STK AIR REG BZL Satin Chrome	-	1	Enquire
15	DD330816AA	Screw, M4 x 20, Pan Hd, Patch Lock	DD330816AA Screw, M4 x 20, Pan Hd, Patch Lock -	-	2	Enquire
16	CD33046B30AB	Register Assembly, IP, Air Con, RH	CD33046B30AB Register Assembly, IP, Air Con, RH -	-	1	Enquire
17	CD33046B31AB	Register Assembly, IP Air Con, LH
CD33046B31AB Register Assembly, IP Air Con, LH
-	1		Enquire
18	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS -	-	2	Enquire
19	DD330838AA	Screw, M4 x 16, Pan Hd, Patch Lock	DD330838AA Screw, M4 x 16, Pan Hd, Patch Lock -	-	2	Enquire
20	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw -	-	6	Enquire
21	DD33MRC1980AA	Washer, Nylon, 4.3x8.0x0.5	DD33MRC1980AA Washer, Nylon, 4.3x8.0x0.5 2 per Buffer	-	4	Enquire
