Aston Martin GT VANQUISH (2013-2018) - Body Structure - Body Rear End, Volante

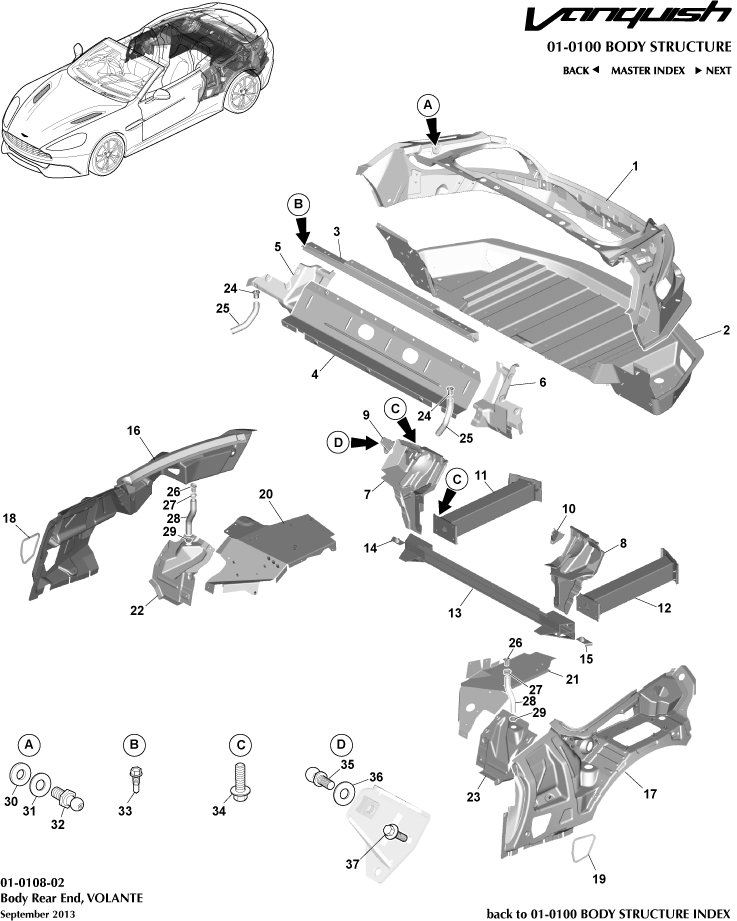

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	HD33L47124AA	PANEL-FLR TRUNK-VOL	HD33L47124AA PANEL-FLR TRUNK-VOL Structural. Cat A Only. 'S' model	-	1	Enquire
-	HD3317F035AA	ABS ASY BMPR RR LH	HD3317F035AA ABS ASY BMPR RR LH Structural. Cat A Only. 'S' model	-	1	Enquire
-	HD3317F034AA	ABS ASY BMPR RR RH	HD3317F034AA ABS ASY BMPR RR RH Structural. Cat A Only. 'S' model	-	1	Enquire
-	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind Not Illustrated	-	A/R	Enquire
1	ED33L45108AE	TRUNK LID SURROUND	ED33L45108AE TRUNK LID SURROUND Structural. Cat A Only	-	1	Enquire
2	ED33L47124AE	PANEL FLOOR TRUNK	ED33L47124AE PANEL FLOOR TRUNK Structural. Cat A Only. Non 'S' model	-	1	Enquire
3	ED33L41623AD	REINF DECKLID SUPT B	ED33L41623AD REINF DECKLID SUPT B Structural. Cat A Only	-	1	Enquire
4	22MA145GP	TAILGATE CLOSE SWITCH	22MA145GP TAILGATE CLOSE SWITCH Structural. Cat A Only	-	1	Enquire
5	ED33L10514AB	Panel, Rear Floor Side Outer, RH	ED33L10514AB Panel, Rear Floor Side Outer, RH Structural. Cat A Only	-	1	Enquire
6	ED33L10515AB	Panel, Rear Floor Side Outer, LH	ED33L10515AB Panel, Rear Floor Side Outer, LH Structural. Cat A Only	-	1	Enquire
7	GOED33L416W20AD	REINF DECKLID SPRT B	GOED33L416W20AD REINF DECKLID SPRT B Structural. Cat A Only	-	1	Enquire
8	GOED33L416W21AD	REINF DECKLID SUPRT	GOED33L416W21AD REINF DECKLID SUPRT Structural. Cat A Only	-	1	Enquire
9	ED33L46302AD	Reinforcement, Tonneau Actuator, RH	ED33L46302AD Reinforcement, Tonneau Actuator, RH -	-	1	Enquire
10	ED33L46303AD	Reinforcement, Tonneau Actuator, LH	ED33L46303AD Reinforcement, Tonneau Actuator, LH -	-	1	Enquire
11	CD3317F035BA	Absorber Assembly, Bumper Rear, LH	CD3317F035BA Absorber Assembly, Bumper Rear, LH Structural. Cat A Only. Non 'S' model	-	1	Enquire
12	CD3317F034BA	Absorber Assembly, Bumper Rear, RH	CD3317F034BA Absorber Assembly, Bumper Rear, RH Structural. Cat A Only. Non 'S' model	-	1	Enquire
13	CD3340338AD	Reinforced Lower Back Centre Panel	CD3340338AD Reinforced Lower Back Centre Panel Structural. Cat A Only	-	1	Enquire
14	DG43501B0AA	Nut Plate, Rear Sub Frame, RH	DG43501B0AA Nut Plate, Rear Sub Frame, RH -	-	1	Enquire
15	DG43501B1AA	Nut Plate, Rear Sub Frame, LH	DG43501B1AA Nut Plate, Rear Sub Frame, LH -	-	1	Enquire
16	ED33L41038AC	PNL RR CORNER RH	ED33L41038AC PNL RR CORNER RH Structural. Cat A Only	-	1	Enquire
17	ED33L41033AC	RR CORNER ASSY LH	ED33L41033AC RR CORNER ASSY LH Structural. Cat A Only	-	1	Enquire
18	ED33280C02AA	Gasket, Rear Corner Panel, RH	ED33280C02AA Gasket, Rear Corner Panel, RH -	-	1	Enquire
19	ED33280C03AA	Gasket, Rear Corner Panel, LH	ED33280C03AA Gasket, Rear Corner Panel, LH -	-	1	Enquire
20	ED33L279A54AE	Panel, Quarter Wheel Housing Inner Rear, RH	ED33L279A54AE Panel, Quarter Wheel Housing Inner Rear, RH Structural. Cat A Only	-	1	Enquire
21	ED33L279A55AB	Panel, Quarter Wheel Housing Inner Rear, LH	ED33L279A55AB Panel, Quarter Wheel Housing Inner Rear, LH Structural. Cat A Only	-	1	Enquire
22	ED33L41036AA	Panel, Rear Quarter Infill Rear, RH	ED33L41036AA Panel, Rear Quarter Infill Rear, RH Structural. Cat A Only	-	1	Enquire
23	ED33L41037AA	Nut Plate, Rear Subframe, RH	ED33L41037AA Nut Plate, Rear Subframe, RH Structural. Cat A Only	-	1	Enquire
25	GOED33L36282AB	Drain Pipe, TLS	GOED33L36282AB Drain Pipe, TLS -	-	2	Enquire
26	6G33L80840AD	Drain Plug, Rear Quarter	6G33L80840AD Drain Plug, Rear Quarter -	-	2	Enquire
27	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25 -	-	2	Enquire
28	ED33L82844AA	Drain Pipe, Rear Quarter	ED33L82844AA Drain Pipe, Rear Quarter -	-	2	Enquire
29	6G3358500W04AB	Grommet, Drain Hose	6G3358500W04AB Grommet, Drain Hose -	-	2	Enquire
30	CD3328614AA	Sealing Washer, Foam	CD3328614AA Sealing Washer, Foam -	-	2	Enquire
31	CD3343422AA	Washer, 81 x 21 x 1.6	CD3343422AA Washer, 81 x 21 x 1.6 -	-	2	Enquire
33	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	2	Enquire
34	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	14	Enquire
35	4G435867827AB	GAS STRUT BALL STUD M8	4G435867827AB GAS STRUT BALL STUD M8 -	-	2	Enquire
36	703131	WASHER PLAIN FORM A M8 CHROME FREE	703131 WASHER PLAIN FORM A M8 CHROME FREE -	-	2	Enquire
37	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	6	Enquire
