Body Structure - Front Bumper Structure, Federal

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Body Structure - Front Bumper Structure, Federal

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

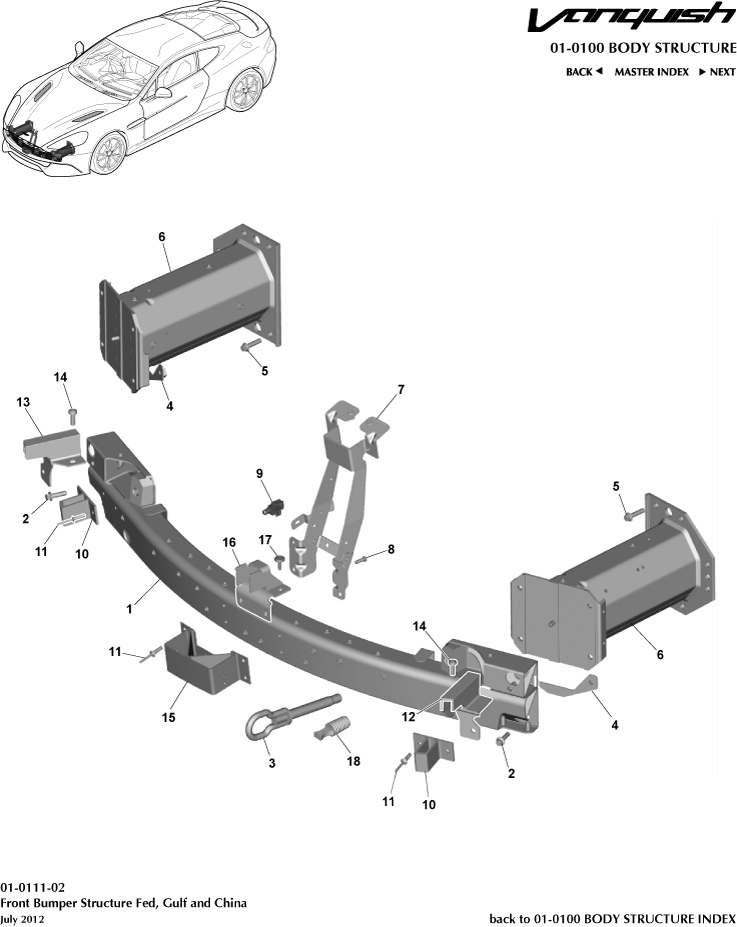

Body Structure - Front Bumper Structure, Federal of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3317B804BA
TOWING EYE-M16X 2-G
See SA-01-0247V2, RH Thread 		- 1 Enquire
1 DG4317757CA
Bumper Beam Assembly, Front
See SA-01-0247V2 		- 1 Enquire
2 703155
SCREW/WASHER M8x25 CHROME FREE
- 		- 6 Enquire
3 CD3317B804AC
Towing Eye
See SA-01-0247V2, LH Thread 		- 1 Enquire
4 4G436367912AC
NUT PLT ASY FRT CRSH
- 		- 2 Enquire
5 704495
Screw, M8 x 35, Hex Flange Head
- 		- 12 Enquire
6 DD43V17N800BA
Crash Can, Bumper Front
Structural. Cat A Only 		- 2 Enquire
7 CD333804AC
Bracket, Bonnet Latch Mounting
-
ARRIVING SOON 		- 1 Enquire
8 703265
Screw, M6 x 16, Hex Flange Head
- 		- 4 Enquire
9 7G3319E642AA
Sensor, Ambient Air
- 		- 1 Enquire
10 DG4317E898BA
Isolator, Front Bumper Outboard Lower
- 		- 2 Enquire
11 6G3368676AC
Rivet Structural 6.5 x 14, Blind
- 		- 8 Enquire
12 DG4317E937BB
Insert, Front Bumper Isolator, LH
- 		- 1 Enquire
13 DG4317E936BB
Insert, Front Bumper Isolator, RH
- 		- 1 Enquire
14 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
Pack of 10 		- 4 Enquire
15 DG4317E952BA
Over Rider, Central, Front Bumper
- 		- 1 Enquire
16 DG4317752AB
Bracket, Bumper Beam Front
- 		- 1 Enquire
17 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 4 Enquire
18 DG4317K906AA
Plug & Grip, 15mm
- 		- 1 Enquire
