Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Rear Quarter Trim Panel, Volante

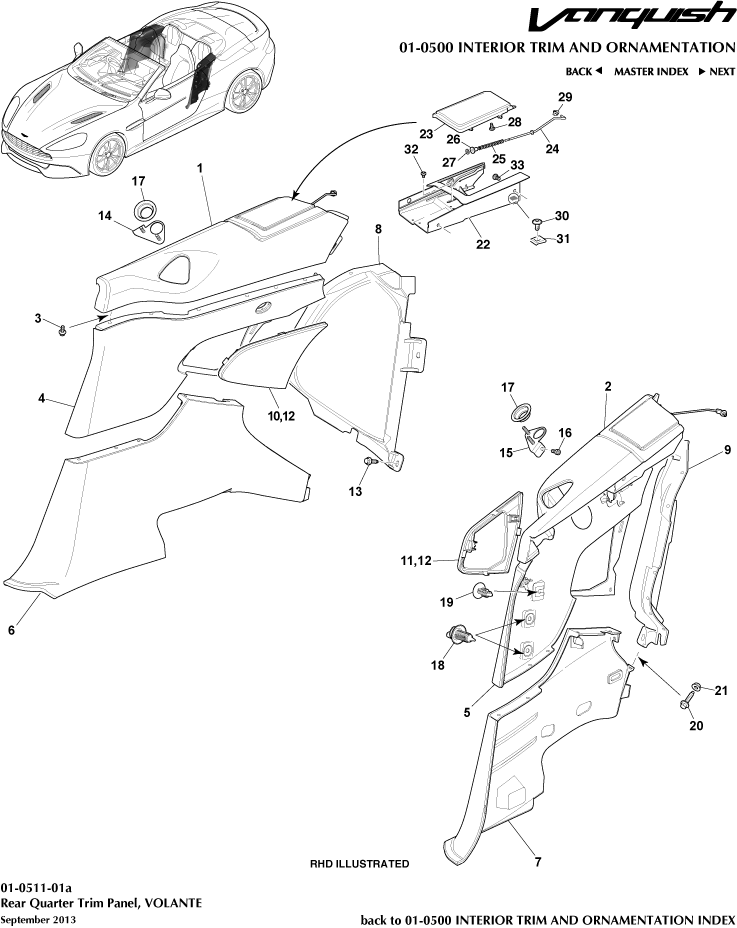

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	13A1472CP	OUTRIGGER - FRONT - RH	13A1472CP OUTRIGGER - FRONT - RH -	-	1	Enquire
-	22AD488GP	ASSY FNDR FRT LH	22AD488GP ASSY FNDR FRT LH -	-	1	Enquire
-	ED33L312A94FA	Grille, Rear Quarter, RH	ED33L312A94FA Grille, Rear Quarter, RH Iridium From VIN K01281	-	1	Enquire
-	9D33L312A94BA	REAR QUARTER SPEAKER RHS BLACK	9D33L312A94BA REAR QUARTER SPEAKER RHS BLACK Black	-	1	Enquire
-	22AD489GP	ASSY FNDR FRT RH	22AD489GP ASSY FNDR FRT RH Iridium From VIN K01281	-	1	Enquire
-	9D33L312A95BA	REAR QUARTER SPEAKER LHS BLACK	9D33L312A95BA REAR QUARTER SPEAKER LHS BLACK Black	-	1	Enquire
-	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH Satin Chrome	-	1	Enquire
-	ED33LB605H21AA	Frame and Finisher Assembly, C-Flap, LH	ED33LB605H21AA Frame and Finisher Assembly, C-Flap, LH Shadow Bronze	-	1	Enquire
-	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH Satin Chrome	-	1	Enquire
-	4G43539A36AEW	Flap Assembly, Flip Top, RH	4G43539A36AEW Flap Assembly, Flip Top, RH Satin Chrome (Includes 24-28)	-	1	Enquire
-	ED33539A37ABW	Flap Assembly, Flip Top, LH	ED33539A37ABW Flap Assembly, Flip Top, LH Shadow Bronze (Includes 24-28)	-	1	Enquire
-	4G43539A37AEW	Flap Assembly, Flip Top, LH	4G43539A37AEW Flap Assembly, Flip Top, LH Satin Chrome (Includes 24-28)	-	1	Enquire
-	4G43L53297AA	Link Rod, Flap Top LH	4G43L53297AA Link Rod, Flap Top LH -	-	1	Enquire
1	ED33L31112ACW	Trim Panel, Rear Quarter Upper, RH	ED33L31112ACW Trim Panel, Rear Quarter Upper, RH -	-	1	Enquire
2	ED33L31113ACW	Trim Panel, Rear Quarter Upper, LH	ED33L31113ACW Trim Panel, Rear Quarter Upper, LH -	-	1	Enquire
3	W500002S440	Screw, M5 X 12, Hex Flange Head	W500002S440 Screw, M5 X 12, Hex Flange Head -	-	12	Enquire
4	ED33L31486ABW	Panel Assembly, Rear Quarter Middle, RH	ED33L31486ABW Panel Assembly, Rear Quarter Middle, RH Includes Items 10 and 12	-	1	Enquire
5	ED33L31487ABW	Panel Assembly, Rear Quarter Middle, LH	ED33L31487ABW Panel Assembly, Rear Quarter Middle, LH Includes Items 11 and 12	-	1	Enquire
6	ED33L312A06AAW	Trim Panel, Rear Quarter Lower, RH	ED33L312A06AAW Trim Panel, Rear Quarter Lower, RH -	-	1	Enquire
7	ED33L312A07AAW	Trim Panel, Rear Quarter Lower, LH	ED33L312A07AAW Trim Panel, Rear Quarter Lower, LH -	-	1	Enquire
8	ED33L60594ABW	Panel Assembly, Rear Seat Back, RH	ED33L60594ABW Panel Assembly, Rear Seat Back, RH -	-	1	Enquire
9	ED33L60595ABW	Panel Assembly, Rear Seat Back, LH	ED33L60595ABW Panel Assembly, Rear Seat Back, LH -	-	1	Enquire
10	9G43L312A94BD	Speaker Grille, Rear Quarter, RH	9G43L312A94BD Speaker Grille, Rear Quarter, RH Silver Up to VIN K01280	-	1	Enquire
11	9G43L312A95BD	Speaker Grille, Rear Quarter, LH	9G43L312A95BD Speaker Grille, Rear Quarter, LH Silver Up to VIN K01280	-	1	Enquire
12	700986PK	Nut-M4 HEX FLG Pack of 20	700986PK Nut-M4 HEX FLG Pack of 20 Pack of 20	-	6	Enquire
13	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	4	Enquire
14	ED33L24858AB	Bezel Assembly, Front Seat Belt, RH	ED33L24858AB Bezel Assembly, Front Seat Belt, RH -	-	1	Enquire
15	ED33L24859AB	Bezel Assembly, Front Seat Belt, LH	ED33L24859AB Bezel Assembly, Front Seat Belt, LH -	-	1	Enquire
16	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd -	-	2	Enquire
17	DD3361236AA	Bezel, Seat Belt Gap Hider Moulding	DD3361236AA Bezel, Seat Belt Gap Hider Moulding -	-	2	Enquire
18	4G43STC3710BA	Fir Tree, Key Hole	4G43STC3710BA Fir Tree, Key Hole -	-	4	Enquire
20	703732	Screw, M5 x 20, Hex Flange Head	703732 Screw, M5 x 20, Hex Flange Head -	-	16	Enquire
21	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	18	Enquire
22	ED33LB605H20AA	Frame and Finisher Assembly, C-Flap, RH	ED33LB605H20AA Frame and Finisher Assembly, C-Flap, RH Shadow Bronze	-	1	Enquire
23	ED33539A36ABW	Flap Assembly, Flip Top, RH	ED33539A36ABW Flap Assembly, Flip Top, RH Shadow Bronze (Includes 24-28)	-	1	Enquire
24	4G43L53296AA	Link Rod, Flap Top RH	4G43L53296AA Link Rod, Flap Top RH -	-	1	Enquire
25	4G4317431AA	SPRING	4G4317431AA SPRING -	-	2	Enquire
26	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) -	-	2	Enquire
28	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP -	-	4	Enquire
29	4G431861AA	CLIP	4G431861AA CLIP -	-	2	Enquire
30	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5 -	-	2	Enquire
31	701653	Spring Nut, U Type, 4.2 x 0.7-2	701653 Spring Nut, U Type, 4.2 x 0.7-2 -	-	2	Enquire
32	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD -	-	2	Enquire
33	703081	SCREW M5x10 PAN HEAD	703081 SCREW M5x10 PAN HEAD -	-	4	Enquire
