Aston Martin GT VANQUISH (2013-2018) - Body Structure - Ancillary Parts, Volante, page 2

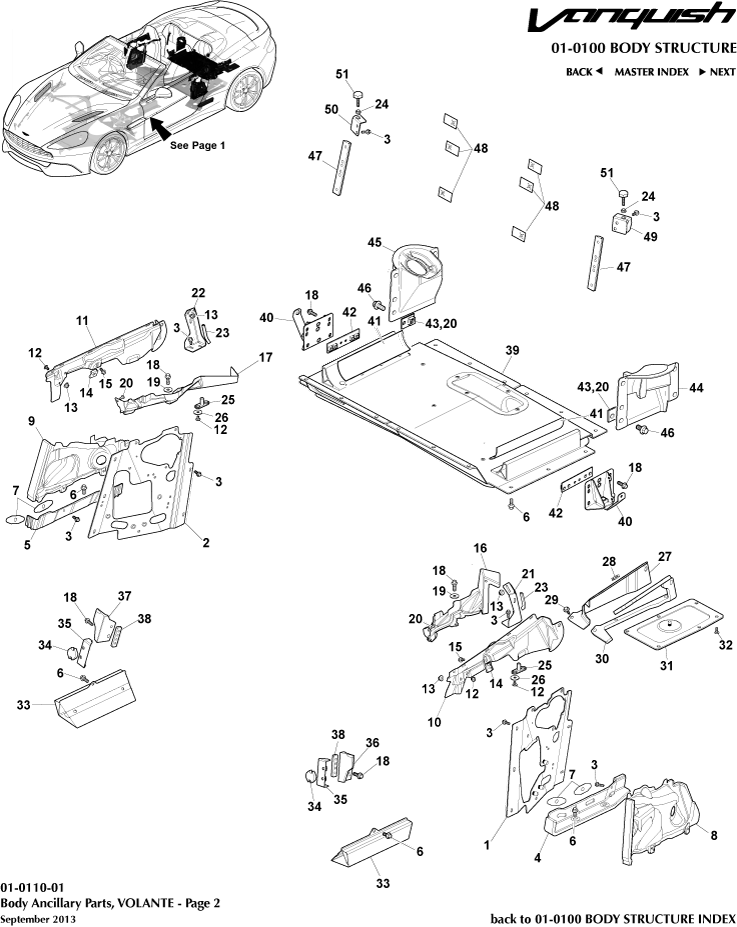

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	-	A/R	Enquire
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	-	A/R	Enquire
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm	-	A/R	Enquire
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm	-	A/R	Enquire
1	ED33L04703AB	Panel, Window Regulator Opening Cover, LH	ED33L04703AB Panel, Window Regulator Opening Cover, LH Structural Cat. A Only	-	1	Enquire
2	ED33L04702AB	Panel, Window Regulator Opening Cover, RH	ED33L04702AB Panel, Window Regulator Opening Cover, RH Structural Cat. A Only	-	1	Enquire
4	ED33303A93AA	Bracket, Quarter Window Regulator Mounting, LH	ED33303A93AA Bracket, Quarter Window Regulator Mounting, LH Structural Cat. A Only	-	1	Enquire
5	ED33303A92AA	Bracket, Quarter Window Regulator Mounting, RH	ED33303A92AA Bracket, Quarter Window Regulator Mounting, RH Structural Cat. A Only	-	1	Enquire
6	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	27	Enquire
7	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	4G4314A573AA Plate Assembly, Window Regulator Rear Switch Cover -	-	4	Enquire
8	9G4328035AB	Panel, Rear Quarter Shedder, LH	9G4328035AB Panel, Rear Quarter Shedder, LH Structural Cat. A Only	-	1	Enquire
9	9G4328034AB	Panel, Rear Quarter Shedder, RH	9G4328034AB Panel, Rear Quarter Shedder, RH Structural Cat. A Only	-	1	Enquire
10	ED33A410K25AC	Panel, Rear Body Pillar Closing, LH	ED33A410K25AC Panel, Rear Body Pillar Closing, LH Structural Cat. A Only	-	1	Enquire
11	ED33A410K24AC	Panel, Rear Body Pillar Closing, RH	ED33A410K24AC Panel, Rear Body Pillar Closing, RH Structural Cat. A Only	-	1	Enquire
12	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx -	-	6	Enquire
13	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head -	-	4	Enquire
14	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
15	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	2	Enquire
16	ED335423AA	Bearing Casting, Water Shedder, LH	ED335423AA Bearing Casting, Water Shedder, LH Structural Cat. A Only	-	1	Enquire
17	ED335422AA	Bearing Casting, Water Shedder, RH	ED335422AA Bearing Casting, Water Shedder, RH Structural Cat. A Only	-	1	Enquire
18	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	16	Enquire
19	AG4332692AA	Washer, M8, Large OD	AG4332692AA Washer, M8, Large OD -	-	4	Enquire
20	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	4	Enquire
21	ED33L277A61AC	Bracket, Reinforcement Rear Quarter Inner, LH	ED33L277A61AC Bracket, Reinforcement Rear Quarter Inner, LH -	-	1	Enquire
22	ED33L277A60AC	Bracket, Reinforcement Rear Quarter Inner, RH	ED33L277A60AC Bracket, Reinforcement Rear Quarter Inner, RH -	-	1	Enquire
23	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm -	-	2	Enquire
24	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	2	Enquire
25	ED43L243A70AA	Alignment Pin, Main Bearing Bracket	ED43L243A70AA Alignment Pin, Main Bearing Bracket -	-	2	Enquire
26	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) Pack of 10	-	4	Enquire
27	ED33507A62AA	Cover Plate, Tonneau Pump	ED33507A62AA Cover Plate, Tonneau Pump -	-	1	Enquire
28	ED33EM7243AA	Clip, Tonneau Pump Cover Plate	ED33EM7243AA Clip, Tonneau Pump Cover Plate -	-	1	Enquire
29	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	4	Enquire
30	ED33P8K141AA	Gasket, Tonneau Pump Closing Panel	ED33P8K141AA Gasket, Tonneau Pump Closing Panel -	-	1	Enquire
31	ED33507A63AA	Plate Assembly, Pump Closing	ED33507A63AA Plate Assembly, Pump Closing -	-	1	Enquire
32	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	6	Enquire
33	GOCD3310230AA	Reinforcement Extrusion, Rear Floor Side	GOCD3310230AA Reinforcement Extrusion, Rear Floor Side -	-	2	Enquire
34	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	-	A/R	Enquire
35	DG43393126AA	Nutplate Assembly, Striker	DG43393126AA Nutplate Assembly, Striker -	-	2	Enquire
36	GOED3320E801AA	Body Mount Catcher, LH	GOED3320E801AA Body Mount Catcher, LH -	-	1	Enquire
37	GOED3320E800AA	Body Mount Catcher, RH	GOED3320E800AA Body Mount Catcher, RH -	-	1	Enquire
38	CD33393126AC	Mounting Plate, Catcher	CD33393126AC Mounting Plate, Catcher -	-	2	Enquire
39	22AA129GP	SERVICE HATCH FOAM SEAL RR	22AA129GP SERVICE HATCH FOAM SEAL RR -	-	1	Enquire
40	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER -	-	2	Enquire
41	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT -	-	2	Enquire
42	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper -	-	2	Enquire
44	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH -	-	1	Enquire
45	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH -	-	1	Enquire
46	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE -	-	8	Enquire
47	4G43L24556AB	Nutplate, Pillar Centre Body Inner Rear	4G43L24556AB Nutplate, Pillar Centre Body Inner Rear -	-	2	Enquire
48	7G432943707AA	Plate, Weld Nut, Centre	7G432943707AA Plate, Weld Nut, Centre -	-	6	Enquire
49	ED334S019AB	Bracket, Tonneau Bump Stop, LH	ED334S019AB Bracket, Tonneau Bump Stop, LH -	-	1	Enquire
50	ED334S018AB	Bracket, Tonneau Bump Stop, RH	ED334S018AB Bracket, Tonneau Bump Stop, RH -	-	1	Enquire
51	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top -	-	2	Enquire
