Body Exterior Trim & Ornamentation - Lower Exterior Finishers

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Body Exterior Trim & Ornamentation - Lower Exterior Finishers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

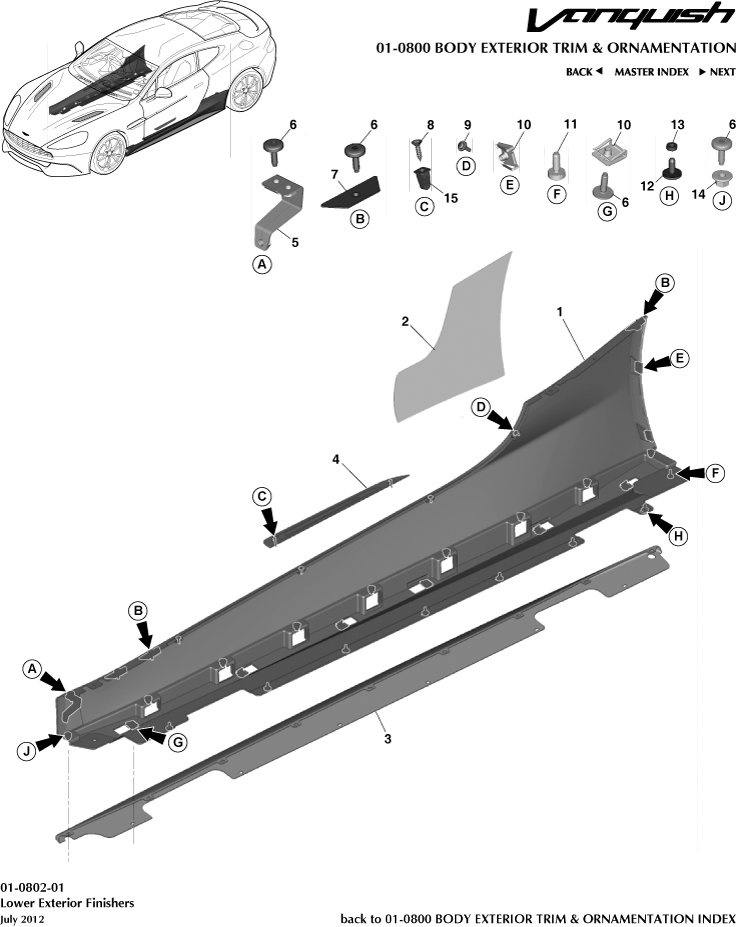

Body Exterior Trim & Ornamentation - Lower Exterior Finishers of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- FD3310608AA
SILL APPLIQUE RH
From 15MY, VIN J02768 		- 1 Enquire
- CD3310609AD
SILL APPLIQUE LH
Up To 15MY 		- 1 Enquire
- FD3310609AA
SILL APPLIQUE LH
From 15MY, VIN J02768 		- 1 Enquire
- CD3310625AB
Tape, Sill Rear, LH
- 		- 1 Enquire
- CD3310611CA
SILL BLADE CARBON LH
- 		- 1 Enquire
- CD33132A49AB
Tread Plate Exterior, LH
Up To 16MY 		- 1 Enquire
1 CD3310608AD
SILL APPLIQUE RH
Up To 15MY 		- 1 Enquire
2 CD3310624AB
Tape, Sill Rear, RH
- 		- 1 Enquire
3 CD3310610CA
SILL BLADE CARBON RH
- 		- 1 Enquire
4 CD33132A48AB
Tread Plate Exterior, RH
Up To 16MY 		- 1 Enquire
5 CD3316586AB
Support Bracket, Wheel Arch Liner
- 		- 2 Enquire
6 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 42 Enquire
7 9G33102B24BA
PLT RR FLR SD SL MTG
- 		- 8 Enquire
8 CD33132A46BA
Screw, 4.2 x 16, Self Tapping
- 		- 4 Enquire
9 701573
Screw and Washer, M4 x 16, Pan Head
- 		- 8 Enquire
10 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
ARRIVING SOON 		- 16 Enquire
11 701567
Screw, M6 x 16
- 		- 2 Enquire
12 6G430516BBA
Screw, M6 x 16, Self Tapping
- 		- 14 Enquire
14 703749
Nut, M6, Hex Flange Head
- 		- 18 Enquire
15 DD33V82027AA
Nut, 4.2 Exp Plastic
- 		- 4 Enquire
