Body Closures - Front Door Assembly

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Body Closures - Front Door Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

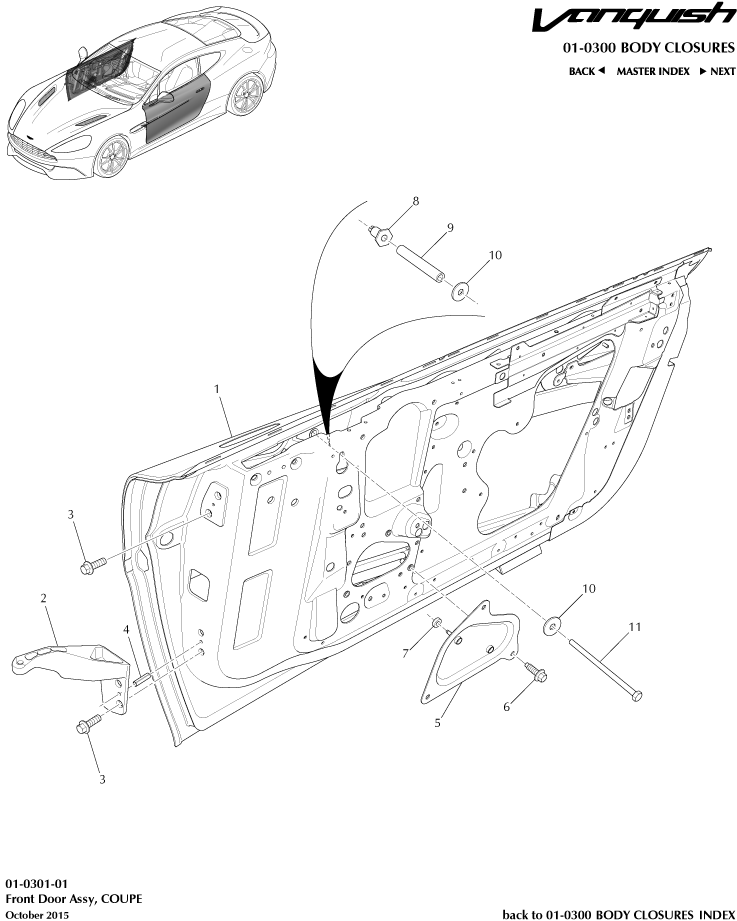

Body Closures - Front Door Assembly of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- ED33C20122AE
DR ASM COMPLETE RH
From VIN J02110, Coupe, Includes Items 2 to 4. 3Fixing 1/4Light 		- 1 Enquire
- ED3320122AD
DR ASY COMPLETE RH
Up To VIN K02114, Volante, Includes Items 2 to 4. See SB-01-1001v2 		- 1 Enquire
- ED3320122AE
DR ASY COMPLETE RH
From VIN K02116, Volante, Includes Items 2 to 4. 3Fixing 1/4Light 		- 1 Enquire
- ED33C20123AD
DR ASM COMPLETE LH
Up To VIN J02109, Coupe, Includes Items 2 to 4. See SB-01-1001v2 		- 1 Enquire
- ED33C20123AE
DR ASM COMPLETE LH
From VIN J02110, Coupe, Includes Items 2 to 4. 3Fixing 1/4Light 		- 1 Enquire
- ED3320123AD
DR ASY COMPLETE LH
Up To VIN K02114, Volante, Includes Items 2 to 4. See SB-01-1001v2 		- 1 Enquire
- ED3320123AE
DR ASY COMPLETE LH
From VIN K02116, Volante, Includes Items 2 to 4. 3Fixing 1/4Light 		- 1 Enquire
- CD3337521AA
Blanking Plug, 12.7mm
Up To VIN J02109/K02114. 3Fixing (Later) Door with 2Fixing 1/4Light. 		- 1 Enquire
- NSS
 Seat Belt Loops Frt/ Rear and Left/Right
See Item 1 		- 1 Enquire
- 4G4313283BA
Cover, Door Access Opening, LH
- 		- 1 Enquire
1 ED33C20122AD
DR ASM COMPLETE RH
Up To VIN J02109, Coupe, Includes Items 2 to 4. See SB-01-1001v2 		- 1 Enquire
2 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
See Item 1 		- 1 Enquire
3 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 4 Enquire
4 4G4340176AB
Pin, Door Locating
- 		- 2 Enquire
5 4G4313282BA
Cover, Door Access Opening, RH
- 		- 1 Enquire
6 703265
Screw, M6 x 16, Hex Flange Head
- 		- 6 Enquire
7 4G43702961AA
CVR DR ACC OPNG - ALUMINIUM SPACER
- 		- 4 Enquire
8 22AB760GP
ASSY BRACKET MTG LUGGAGE HOOK RR
- 		- 2 Enquire
9 ED33102K94AB
TUBE SPACER
- 		- 2 Enquire
10 697517
WASHER M6 LGE OD BLK
- 		- 4 Enquire
11 CD33100129AA
M6X110 HEX HEAD SRW
- 		- 2 Enquire
