Front End Structure - Grille Opening Panel of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

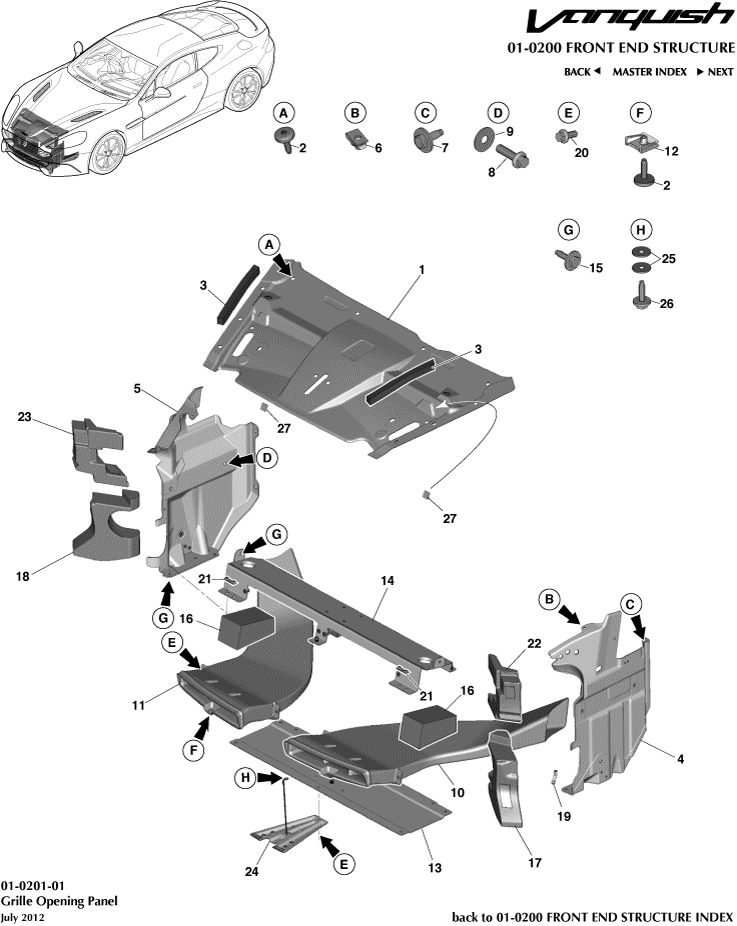

Aston Martin GT VANQUISH (2013-2018) - Front End Structure - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD338136BB	GRL ASSY RAD CTR	CD338136BB GRL ASSY RAD CTR From VIN J02446	-	1	Enquire
-	FD33F01991AA	PNL VENT AIR LH	FD33F01991AA PNL VENT AIR LH From 15MY	-	1	Enquire
-	707269	SCREW-M8x30 HEX-BLK	707269 SCREW-M8x30 HEX-BLK 17MY on	-	4	Enquire
--	703069	Screw, M6 x 16, Hex Flange Hd	703069 Screw, M6 x 16, Hex Flange Hd Black	-	11	Enquire
1	CD338136BA	GRL ASSY RAD CTR	CD338136BA GRL ASSY RAD CTR Up to and incl VIN J02445	-	1	Enquire
3	CG43403D62AA	Seal, Upper Panel, Air Vent	CG43403D62AA Seal, Upper Panel, Air Vent -	-	2	Enquire
4	DG43F01991AC	PNL VEN AIR LH	DG43F01991AC PNL VEN AIR LH Up To 15MY	-	1	Enquire
5	DG43F01990AC	Panel, Air Vent, RH	DG43F01990AC Panel, Air Vent, RH -	-	1	Enquire
6	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG -	-	2	Enquire
8	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	4	Enquire
10	8D332D207AB	DCT BRK CNTR COOL LH	8D332D207AB DCT BRK CNTR COOL LH -	-	1	Enquire
11	8D332D206AB	DCT BRK CNTR COOL RH	8D332D206AB DCT BRK CNTR COOL RH -	-	1	Enquire
12	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
13	8G432943751AB	Beam, Radiator Support Lower	8G432943751AB Beam, Radiator Support Lower -	-	1	Enquire
14	DG438052AA	Cover Assembly, Radiator Support Lower	DG438052AA Cover Assembly, Radiator Support Lower -	-	1	Enquire
15	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	6	Enquire
16	8D3342761AA	Foam Pad, Cover Assy Radiator Support	8D3342761AA Foam Pad, Cover Assy Radiator Support -	-	2	Enquire
17	CD33334611AA	Foam, Bumper, LH	CD33334611AA Foam, Bumper, LH -	-	1	Enquire
18	CD33334610AA	Foam, Bumper, RH	CD33334610AA Foam, Bumper, RH -	-	1	Enquire
19	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 -	-	1	Enquire
20	703729	Screw, M6 x 16, Flange Hex Head	703729 Screw, M6 x 16, Flange Hex Head Bright	-	11	Enquire
21	CD338K070AA	Nut Plate, Radiator Support Lower	CD338K070AA Nut Plate, Radiator Support Lower -	-	2	Enquire
22	CD3317E671AA	Foam, Bumper, Upper, LH	CD3317E671AA Foam, Bumper, Upper, LH -	-	1	Enquire
23	CD3317E670AA	Foam Bumper Upper RH	CD3317E670AA Foam Bumper Upper RH -	-	1	Enquire
24	DG4338B30AB	CNTR CHN STF	DG4338B30AB CNTR CHN STF -	-	1	Enquire
25	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
26	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	1	Enquire
27	DG4318B944AA	Pad, Anti Rattle, 20 x 20	DG4318B944AA Pad, Anti Rattle, 20 x 20 -	-	2	Enquire
