Front Lightweight Seats

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Front Lightweight Seats

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

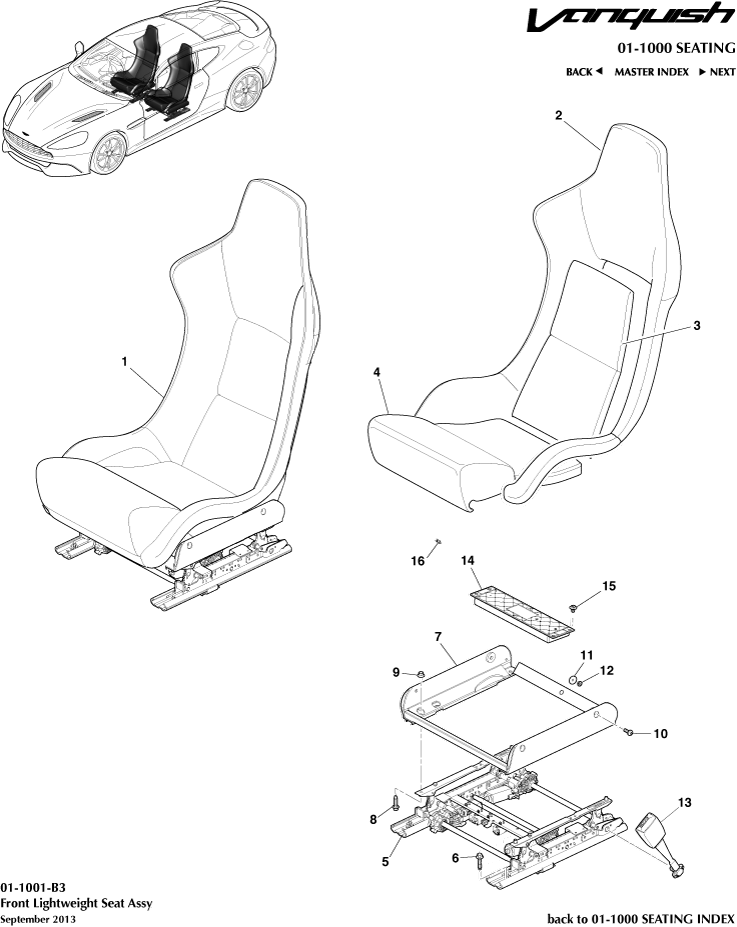

Front Lightweight Seats of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- ED3360009AAW
Front Seat Assembly Complete, Trimmed, LH
- 		- 1 Enquire
- CG43600C14AA
Front Seat and Track Assembly, Not Trimmed
- 		- 2 Enquire
- 7784981PK
Tape, Anti Rattle Rear Quarter Wheel
Pack of 10 		- A/R Enquire
1 ED3360008AAW
Front Seat Assembly Complete, Trimmed, RH
- 		- 1 Enquire
2 ED3364572AAW
Cover Assembly, Seat Outer
- 		- 2 Enquire
3 ED3360136AAW
Squab Assembly, Trimmed
Includes Foam 		- 2 Enquire
4 ED3360050AAW
Cushion Assembly, Trimmed
Includes Foam 		- 2 Enquire
5 4G437410116
Track Assembly, Front Lightweight Seat
- 		- 2 Enquire
6 22AA653GP
PNL WHL ARCH LINER COVER LH
- 		- 8 Enquire
7 8D33617B94AD
Bracket Assembly, Front Seat Adaptor
- 		- 2 Enquire
8 W500624S303
Bolt, M8 x 25, Hex Flange Head
- 		- 8 Enquire
9 701342PK
NUT M8 HEX P/T PLAS8 PACK OF 5
Pack of 5 		- 8 Enquire
10 W505593S307
Screw, M8 x 20, Pan Head
- 		- 4 Enquire
11 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 2 Enquire
12 703266
Screw M6 x 10 Pan Head Torx
- 		- 2 Enquire
13 4G43613K22BD
Buckle Assembly, Front Seatbelt
Includes Fixings 		- 2 Enquire
14 CD3314C249AE
SEAT ECU
- 		- 2 Enquire
15 701581
FIRTREE FLAT HEAD
- 		- 8 Enquire
16 8D3360302BB
Clip, Fir Tree, Flat Head
- 		- 8 Enquire
