Interior Trim & Ornamentation - Front Door Trim Panel of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Front Door Trim Panel

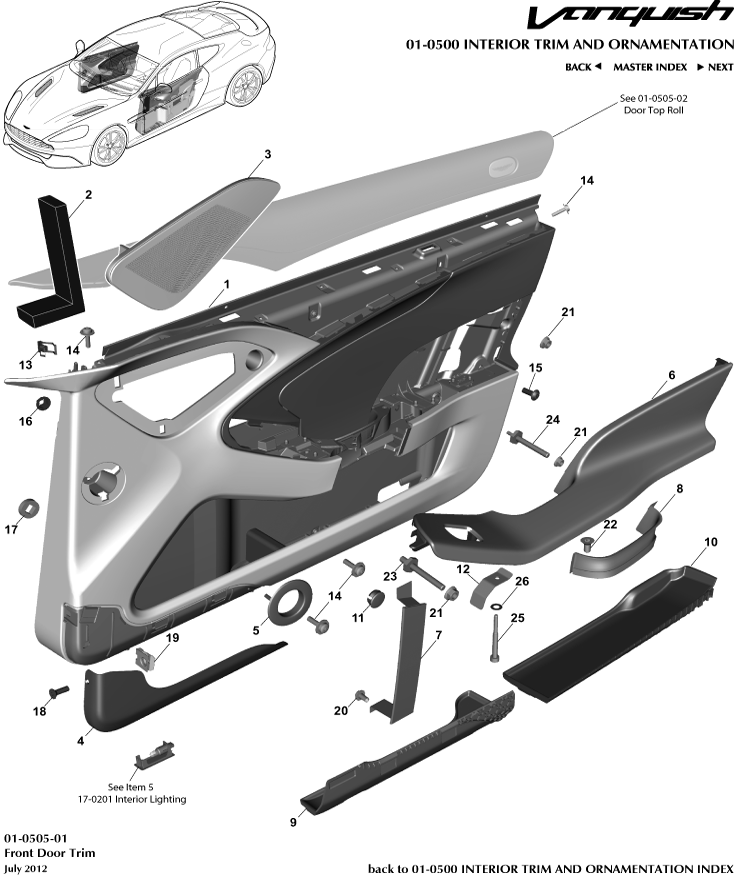

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3323942ECW	Panel Assembly Front Door Complete, RH	CD3323942ECW Panel Assembly Front Door Complete, RH Coupe, Up to 14.5MY	-	1	Enquire
-	ED3323942BAW	Panel Assembly Front Door Complete, RH	ED3323942BAW Panel Assembly Front Door Complete, RH Coupe, From 14.5MY To 15MY	-	1	Enquire
-	13A3519CP	BRACKET - FENDER TO DOP - RH	13A3519CP BRACKET - FENDER TO DOP - RH Coupe, From 15MY	-	1	Enquire
-	HD3323942AAW	PNL ASY FRT DR TR QL	HD3323942AAW PNL ASY FRT DR TR QL Coupe, Vanquish 'S'	-	1	Enquire
-	ED3323942ABW	Panel Assembly Front Door Complete, RH	ED3323942ABW Panel Assembly Front Door Complete, RH Volante, From 14.5MY To 15MY	-	1	Enquire
-	13A3518CP	BRACKET - FENDER TO DOP - LH	13A3518CP BRACKET - FENDER TO DOP - LH Volante, From 15MY	-	1	Enquire
-	HD3323942CAW	PNL ASY FRT DR TR RH	HD3323942CAW PNL ASY FRT DR TR RH Volante, Vanquish 'S'	-	1	Enquire
-	CD3323943ECW	Panel Assembly Front Door Complete, LH	CD3323943ECW Panel Assembly Front Door Complete, LH Coupe, Up to 14.5MY	-	1	Enquire
-	ED3323943BAW	Panel Assembly Front Door Complete, LH	ED3323943BAW Panel Assembly Front Door Complete, LH Coupe, From 14.5MY To 15MY	-	1	Enquire
-	FD3323943ABW	PANEL ASSY FRT DOOR	FD3323943ABW PANEL ASSY FRT DOOR Coupe, From 15MY	-	1	Enquire
-	HD3323943AAW	PNL ASSY DR TR QUILT	HD3323943AAW PNL ASSY DR TR QUILT Coupe, Vanquish 'S'	-	1	Enquire
-	ED3323943ABW	Panel Assembly Front Door Complete, LH	ED3323943ABW Panel Assembly Front Door Complete, LH Volante, From 14.5MY To 15MY	-	1	Enquire
-	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Volante, From 15MY	-	1	Enquire
-	HD3323943CAW	PNL ASY FRT DR TR	HD3323943CAW PNL ASY FRT DR TR Volante, Vanquish 'S'	-	1	Enquire
-	ED3320160BAW	Door Trim Assembly, RH	ED3320160BAW Door Trim Assembly, RH From 14.5MY To 15MY, Coupe	-	1	Enquire
-	FD3320160BBW	DOOR ASY TRIM RH	FD3320160BBW DOOR ASY TRIM RH From 15MY Coupe	-	1	Enquire
-	ED3320160ABW	Door Trim Assembly, RH	ED3320160ABW Door Trim Assembly, RH From 14.5MY To 15MY, Volante	-	1	Enquire
-	FD3320160CCW	DOOR ASY TRIM RH	FD3320160CCW DOOR ASY TRIM RH From 15MY Volante	-	1	Enquire
-	HD3320160CAW	DOOR ASY TRIM RH	HD3320160CAW DOOR ASY TRIM RH Volante, Vanquish 'S'	-	1	Enquire
-	CD3320161BCW	Door Trim Assembly, LH	CD3320161BCW Door Trim Assembly, LH Up To 14.5MY, Coupe	-	1	Enquire
-	ED3320161BAW	Door Trim Assembly, LH	ED3320161BAW Door Trim Assembly, LH From 14.5MY To 15MY, Coupe	-	1	Enquire
-	FD3320161BBW	DOOR ASSY TRIM LH	FD3320161BBW DOOR ASSY TRIM LH From 15MY, Coupe	-	1	Enquire
-	ED3320161ABW	Door Trim Assembly, LH	ED3320161ABW Door Trim Assembly, LH From 14.5MY To 15MY, Volante	-	1	Enquire
-	FD3320161CCW	DOOR ASSY TRIM LH	FD3320161CCW DOOR ASSY TRIM LH From 15MY Volante	-	1	Enquire
-	HD3320161CAW	DOOR ASSY TRIM LH	HD3320161CAW DOOR ASSY TRIM LH Volante, Vanquish 'S'	-	1	Enquire
-	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	4G4302276AB Seal Venair Outlet Duct Door Lower LH -	-	1	Enquire
-	CD3318978AA	Speaker Grille, Door Trim, RH, Black	CD3318978AA Speaker Grille, Door Trim, RH, Black -	-	1	Enquire
-	AD4318979AB	Speaker Grille, Door Trim, LH, Iridium	AD4318979AB Speaker Grille, Door Trim, LH, Iridium -	-	1	Enquire
-	CD3318979AA	Speaker Grille, Door Trim, LH, Black	CD3318979AA Speaker Grille, Door Trim, LH, Black -	-	1	Enquire
-	CD3323805AB	Kick Panel, Door, LH	CD3323805AB Kick Panel, Door, LH -	-	1	Enquire
-	9G43C237898BA	Bezel Door Trim, Iridium Silver	9G43C237898BA Bezel Door Trim, Iridium Silver Iridium	-	2	Enquire
-	FD3324002BAW	DR ARMRST TR RH	FD3324002BAW DR ARMRST TR RH From 15MY	-	1	Enquire
-	CD3324002ACW	Door Armrest Trim Assembly, RH, LHD	CD3324002ACW Door Armrest Trim Assembly, RH, LHD Up To 15MY	-	1	Enquire
-	FD3324002AAW	DR ARMREST TR RH	FD3324002AAW DR ARMREST TR RH From 15MY	-	1	Enquire
-	CD3324003BCW	Door Armrest Trim Assembly, LH, RHD	CD3324003BCW Door Armrest Trim Assembly, LH, RHD Up To 15MY	-	1	Enquire
-	22AA531GP	ASSY PNL RR FENDER SUPPORT RH	22AA531GP ASSY PNL RR FENDER SUPPORT RH From 15MY	-	1	Enquire
-	CD3324003ACW	Door Armrest Trim Assembly, LH, LHD	CD3324003ACW Door Armrest Trim Assembly, LH, LHD Up To 15MY	-	1	Enquire
-	FD3324003AAW	ASSY PAD ARMREST LH	FD3324003AAW ASSY PAD ARMREST LH From 15MY	-	1	Enquire
-	CD33434A31ACW	Door Pocket Strap Assembly, LH	CD33434A31ACW Door Pocket Strap Assembly, LH -	-	1	Enquire
-	CD3324105ACW	Finisher, Door Pull, Trimmed, LH	CD3324105ACW Finisher, Door Pull, Trimmed, LH -	-	1	Enquire
-	CD3310397AB	Mat, Pocket Front, LH	CD3310397AB Mat, Pocket Front, LH -	-	1	Enquire
-	CD3310397BB	Mat, Pocket Rear, LH	CD3310397BB Mat, Pocket Rear, LH -	-	1	Enquire
1	CD3320160BCW	Door Trim Assembly, RH	CD3320160BCW Door Trim Assembly, RH Up to 14.5MY, Coupe	-	1	Enquire
2	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH -	-	1	Enquire
3	AD4318978AB	Speaker Grille, Door Trim, RH, Iridium	AD4318978AB Speaker Grille, Door Trim, RH, Iridium -	-	1	Enquire
4	CD3323804AB	Kick Panel, Door, RH	CD3323804AB Kick Panel, Door, RH -	-	1	Enquire
5	13A3455CP	BRACKET - COWL TO FRONT OUTRIGGER - RH	13A3455CP BRACKET - COWL TO FRONT OUTRIGGER - RH Black	-	2	Enquire
6	CD3324002BCW	Door Armrest Trim Assembly, RH, RHD	CD3324002BCW Door Armrest Trim Assembly, RH, RHD Up To 15MY	-	1	Enquire
7	CD33434A30ACW	Door Pocket Strap Assembly, RH	CD33434A30ACW Door Pocket Strap Assembly, RH -	-	1	Enquire
8	CD3324104ACW	Finisher, Door Pull, Trimmed, RH	CD3324104ACW Finisher, Door Pull, Trimmed, RH -	-	1	Enquire
9	CD3310398AB	Mat, Pocket Front, RH	CD3310398AB Mat, Pocket Front, RH -	-	1	Enquire
10	CD3310398BB	Mat, Pocket Rear, RH	CD3310398BB Mat, Pocket Rear, RH -	-	1	Enquire
11	CD3358868AA	Plug, Window Regulator	CD3358868AA Plug, Window Regulator -	-	2	Enquire
12	DD3324228AB	Bracket Clamp, Front Armrest	DD3324228AB Bracket Clamp, Front Armrest -	-	2	Enquire
13	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	2	Enquire
14	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head -	-	X	Enquire
15	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	4	Enquire
16	4G4383000BB	Nut - Speed M5	4G4383000BB Nut - Speed M5 Bezel	-	4	Enquire
17	9G4320272AA	Seal, Door Inside Panel	9G4320272AA Seal, Door Inside Panel -	-	4	Enquire
18	704779	Screw, M4 x 12, Flat Csk Skt Head	704779 Screw, M4 x 12, Flat Csk Skt Head Kick Panel	-	6	Enquire
19	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 Kick Panel	-	6	Enquire
20	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5 Phone Strap	-	4	Enquire
21	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	6	Enquire
22	AD4310137501AA	Screw, M4x8, Countersunk	AD4310137501AA Screw, M4x8, Countersunk Finisher, Door Pull	-	4	Enquire
23	CD33E804537AB	Stud, M4 x 1.0 x M6 x 1.0	CD33E804537AB Stud, M4 x 1.0 x M6 x 1.0 Forward	-	2	Enquire
24	CD33E804159AB	Stud, M6 x 1.0 x M6 x 1.0	CD33E804159AB Stud, M6 x 1.0 x M6 x 1.0 Rear	-	2	Enquire
25	1R12834616AA	Screw M6x50 Stainless Steel Socket Head Cap Screw	1R12834616AA Screw M6x50 Stainless Steel Socket Head Cap Screw -	-	2	Enquire
26	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL -	-	2	Enquire
