Body Sealing - Static Sealing of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Body Sealing - Static Sealing

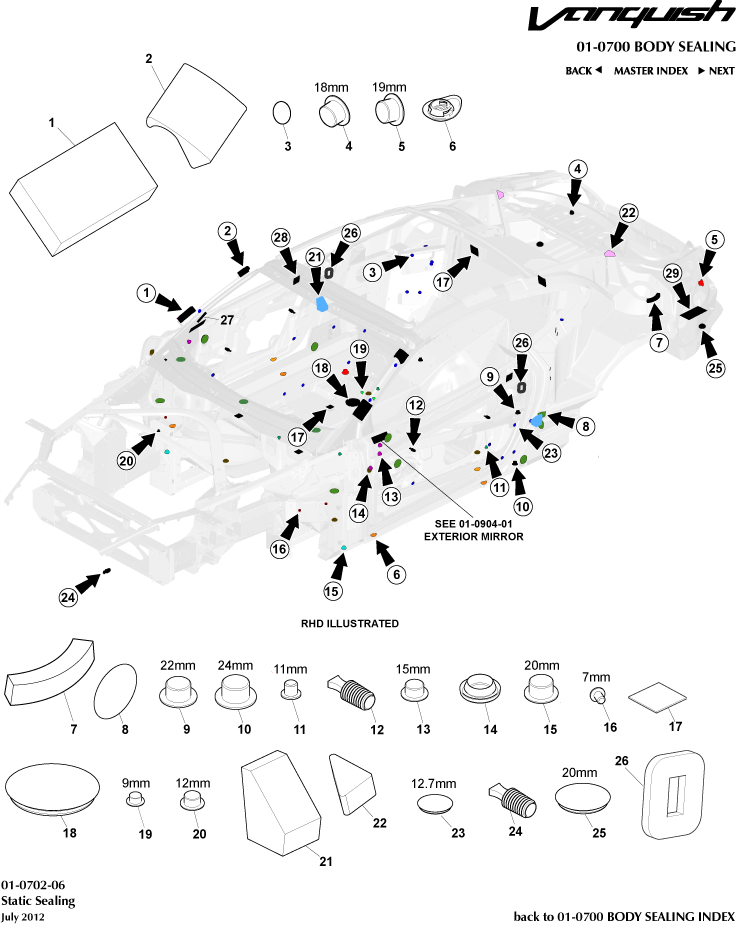

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DD3324562AB	Pad, Centre Body Inner to Outer	DD3324562AB Pad, Centre Body Inner to Outer Volante	-	2	Enquire
3	4G43L20222AA	Small Seal Patch for Door Mod	4G43L20222AA Small Seal Patch for Door Mod -	-	24	Enquire
4	4G43N804138AA	Rubber Plug, 18mm, Black Thermoplastic	4G43N804138AA Rubber Plug, 18mm, Black Thermoplastic -	-	1	Enquire
5	4G43N808070AA	Rubber Plug, 19mm, Black Thermoplastic	4G43N808070AA Rubber Plug, 19mm, Black Thermoplastic -	-	2	Enquire
6	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In -	-	6	Enquire
7	4G43M4D4515BA	FOAM	4G43M4D4515BA FOAM -	-	1	Enquire
8	4G43L20220AA	Seal Patch, Large 50mm	4G43L20220AA Seal Patch, Large 50mm -	-	25	Enquire
9	6G33N804263AA	Rubber Plug, 22mm, Black Thermoplastic	6G33N804263AA Rubber Plug, 22mm, Black Thermoplastic -	-	1	Enquire
10	6G33N804814AA	Rubber Plug, 24mm, Black Thermoplastic	6G33N804814AA Rubber Plug, 24mm, Black Thermoplastic -	-	2	Enquire
11	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic -	-	3	Enquire
12	4G43N805935AA	Flangeless Plug, Black PVC, 17mm	4G43N805935AA Flangeless Plug, Black PVC, 17mm -	-	4	Enquire
13	CD33536343AA	Rubber Plug, Black Thermoplastic, 15mm	CD33536343AA Rubber Plug, Black Thermoplastic, 15mm -	-	4	Enquire
14	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm -	-	6	Enquire
15	6G33N806457AA	Rubber Plug, 20mm, Black Thermoplastic	6G33N806457AA Rubber Plug, 20mm, Black Thermoplastic -	-	2	Enquire
16	4G43N811191AA	Rubber Plug, 7mm, Black Thermoplastic	4G43N811191AA Rubber Plug, 7mm, Black Thermoplastic -	-	A/R	Enquire
17	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35 -	-	5	Enquire
18	CD337N280AA	Blanking Plug, 52mm	CD337N280AA Blanking Plug, 52mm -	-	1	Enquire
19	CD33536337AA	Rubber Plug, Black Thermoplastic, 9mm	CD33536337AA Rubber Plug, Black Thermoplastic, 9mm -	-	2	Enquire
20	6G3325919AA	Rubber Plug, 12mm, Black Thermoplastic	6G3325919AA Rubber Plug, 12mm, Black Thermoplastic -	-	1	Enquire
21	DD33504668AA	Sealing Block, Rear Side Member	DD33504668AA Sealing Block, Rear Side Member -	-	2	Enquire
22	DD3324562AB	Pad, Centre Body Inner to Outer	DD3324562AB Pad, Centre Body Inner to Outer Coupe	-	2	Enquire
23	CD3337521AA	Blanking Plug, 12.7mm	CD3337521AA Blanking Plug, 12.7mm -	-	4	Enquire
24	DG4317K906AA	Plug & Grip, 15mm	DG4317K906AA Plug & Grip, 15mm -	-	1	Enquire
25	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm -	-	2	Enquire
26	CD339184AB	Gasket, Foam, Door Catcher	CD339184AB Gasket, Foam, Door Catcher -	-	2	Enquire
27	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE -	-	1	Enquire
28	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON -	-	2	Enquire
29	7G33114C00AA	Damper Pad	7G33114C00AA Damper Pad 17MY on	-	1	Enquire
