Rear Bumper, 'S' of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

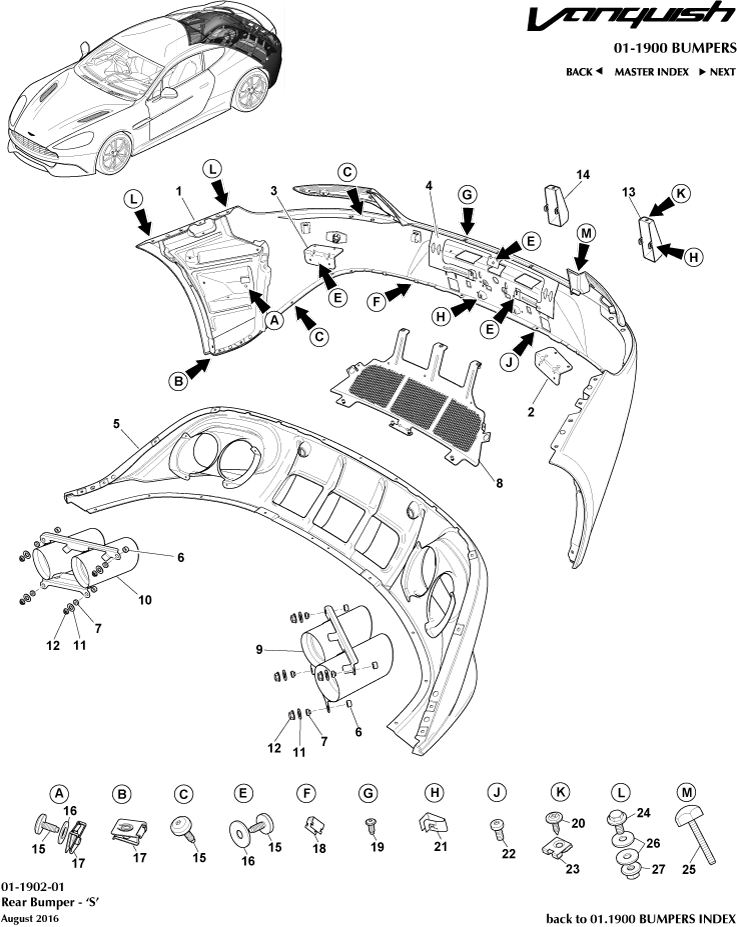

Aston Martin GT VANQUISH (2013-2018) - Rear Bumper, 'S'

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3317K835DG	COVR ASSY RR BUMPR	CD3317K835DG COVR ASSY RR BUMPR Federal	-	1	Enquire
-	HD335K239BB	TAILPIPE FINISHER LH	HD335K239BB TAILPIPE FINISHER LH Zircotec	-	1	Enquire
-	HD335K238BB	TAIL PIPE FINISHER R	HD335K238BB TAIL PIPE FINISHER R Zircotec	-	1	Enquire
1	CD3317K835CG	COVER ASY RR BUMPER	CD3317K835CG COVER ASY RR BUMPER RoW	-	1	Enquire
2	CD3317B931AA	Bracket, Rear Bumper Mounting, LH	CD3317B931AA Bracket, Rear Bumper Mounting, LH -	-	1	Enquire
3	CD3317B930AA	Bracket, Rear Bumper Mounting, RH	CD3317B930AA Bracket, Rear Bumper Mounting, RH -	-	1	Enquire
4	CD33F17B681AB	Bracket, Rear Bumper Mounting, Centre	CD33F17B681AB Bracket, Rear Bumper Mounting, Centre -	-	1	Enquire
5	HD3317E955AC	DIFF RR BUMPER CARBO	HD3317E955AC DIFF RR BUMPER CARBO -	-	1	Enquire
6	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) Pack of 10	-	8	Enquire
7	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) Pack of 10	-	8	Enquire
8	HD33501T2AA	MESH RR LWR ASSY CTR	HD33501T2AA MESH RR LWR ASSY CTR -	-	1	Enquire
9	HD335K239AB	TAIL PIPE FINSHR LH	HD335K239AB TAIL PIPE FINSHR LH Bright	-	1	Enquire
10	HD335K238AB	TL PP FNSHR RH STNLS	HD335K238AB TL PP FNSHR RH STNLS Bright	-	1	Enquire
11	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK -	-	8	Enquire
12	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	8	Enquire
13	CD3317C773AB	Moulding, Rear Bumper, LH	CD3317C773AB Moulding, Rear Bumper, LH Federal	-	1	Enquire
14	CD3317C772AB	Moulding, Rear Bumper, RH	CD3317C772AB Moulding, Rear Bumper, RH Federal	-	1	Enquire
16	6G3328614AA	SE CABLE FU/FILL FLP	6G3328614AA SE CABLE FU/FILL FLP -	-	7	Enquire
17	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	12	Enquire
18	704383	Clip, Edge	704383 Clip, Edge -	-	6	Enquire
20	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Federal, Pack of 10	-	2	Enquire
21	6G437210059	RET.FRT.BMP.MLDG	6G437210059 RET.FRT.BMP.MLDG Federal	-	4	Enquire
23	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 Federal	-	2	Enquire
24	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	4	Enquire
25	CD337J290AA	Screw, M6 x 45, Rubber Headed	CD337J290AA Screw, M6 x 45, Rubber Headed -	-	2	Enquire
26	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) Pack of 10	-	4	Enquire
27	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head -	-	4	Enquire
