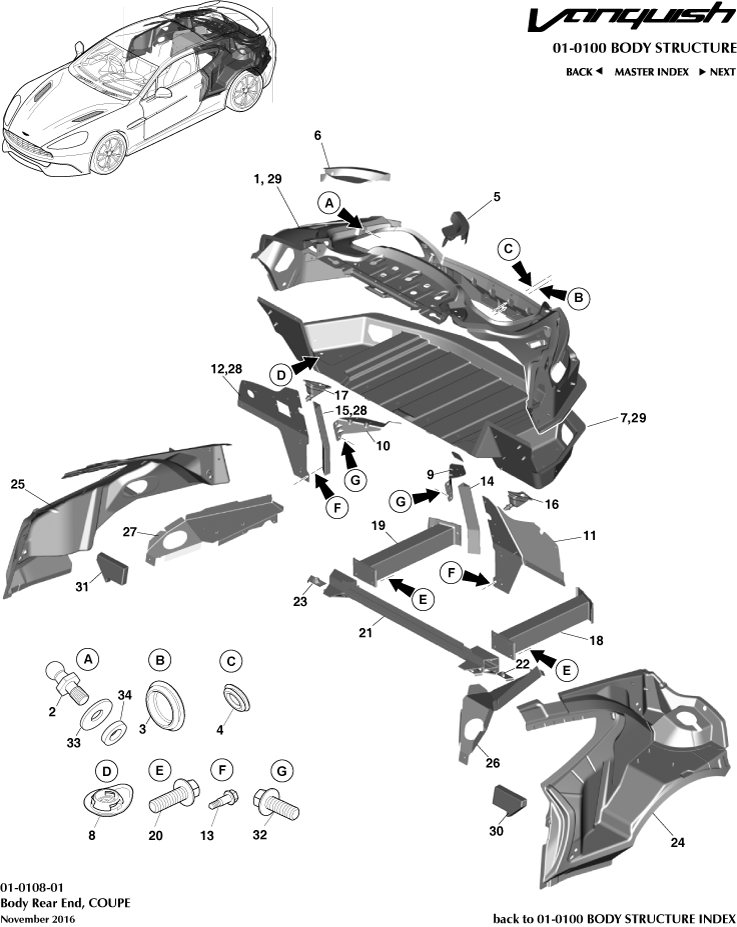

Aston Martin GT VANQUISH (2013-2018) - Body Structure - Body Rear End, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	HD3347124AA	PNL FLR TRNK	HD3347124AA PNL FLR TRNK Structural. Cat A Only. 'S' model	-	1	Enquire
-	HD3317F035AA	ABS ASY BMPR RR LH	HD3317F035AA ABS ASY BMPR RR LH Structural. Cat A Only. 'S' model	-	1	Enquire
-	HD3317F034AA	ABS ASY BMPR RR RH	HD3317F034AA ABS ASY BMPR RR RH Structural. Cat A Only. 'S' model	-	1	Enquire
1	CD33C45108AF	TRGH L/C DR OPG DRN	CD33C45108AF TRGH L/C DR OPG DRN Structural. Cat A Only	-	1	Enquire
3	CD3311027AA	Blanking Plug	CD3311027AA Blanking Plug -	-	1	Enquire
4	DD33F37521AA	Blanking Plug, 14mm ID	DD33F37521AA Blanking Plug, 14mm ID -	-	1	Enquire
5	CD3324443AB	Panel, Closer, LH	CD3324443AB Panel, Closer, LH Structural. Cat A Only	-	1	Enquire
6	CD3324442AB	Panel, Closer, RH	CD3324442AB Panel, Closer, RH Structural. Cat A Only	-	1	Enquire
7	CD3347124AE	Floor Panel, Trunk	CD3347124AE Floor Panel, Trunk Structural. Cat A Only. Non 'S' model	-	1	Enquire
8	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In -	-	4	Enquire
9	CD33C416W21AA	Reinforcement, Tail Gate Hinge, LH	CD33C416W21AA Reinforcement, Tail Gate Hinge, LH Structural. Cat A Only	-	1	Enquire
10	CD33C416W20AA	Reinforcement, Tail Gate Hinge, RH	CD33C416W20AA Reinforcement, Tail Gate Hinge, RH Structural. Cat A Only	-	1	Enquire
11	CD33C10515AB	Panel, Reinforced Rear Quarter, LH	CD33C10515AB Panel, Reinforced Rear Quarter, LH Structural. Cat A Only	-	1	Enquire
12	CD33C10514AD	PNL REINF RR QTR RH	CD33C10514AD PNL REINF RR QTR RH Structural. Cat A Only	-	1	Enquire
13	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	4	Enquire
14	CD33101C83AA	Extrusion Bracket, Side Member Rear, LH	CD33101C83AA Extrusion Bracket, Side Member Rear, LH Structural. Cat A Only	-	1	Enquire
15	CD33101C82AA	Extrusion Bracket, Side Member Rear, RH	CD33101C82AA Extrusion Bracket, Side Member Rear, RH Structural. Cat A Only	-	1	Enquire
16	CD3343025AA	Gaiter, Decklid Hinge, LH	CD3343025AA Gaiter, Decklid Hinge, LH -	-	1	Enquire
17	CD3343024AA	Gaiter, Decklid Hinge, RH	CD3343024AA Gaiter, Decklid Hinge, RH -	-	1	Enquire
18	CD3317F035BA	Absorber Assembly, Bumper Rear, LH	CD3317F035BA Absorber Assembly, Bumper Rear, LH Structural. Cat A Only. Non 'S' model	-	1	Enquire
19	CD3317F034BA	Absorber Assembly, Bumper Rear, RH	CD3317F034BA Absorber Assembly, Bumper Rear, RH Structural. Cat A Only. Non 'S' model	-	1	Enquire
20	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	12	Enquire
21	CD3340338AD	Reinforced Lower Back Centre Panel	CD3340338AD Reinforced Lower Back Centre Panel Structural. Cat A Only	-	1	Enquire
22	DG43501B1AA	Nut Plate, Rear Sub Frame, LH	DG43501B1AA Nut Plate, Rear Sub Frame, LH Structural. Cat A Only	-	1	Enquire
23	DG43501B0AA	Nut Plate, Rear Sub Frame, RH	DG43501B0AA Nut Plate, Rear Sub Frame, RH Structural. Cat A Only	-	1	Enquire
24	CD33C41033AC	Rear Quarter Inner Assembly, LH	CD33C41033AC Rear Quarter Inner Assembly, LH Structural. Cat A Only	-	1	Enquire
25	CD33C41038AB	Rear Quarter Inner Assembly, RH	CD33C41038AB Rear Quarter Inner Assembly, RH Structural. Cat A Only	-	1	Enquire
26	CD33C279A55AB	Panel, Quarter Wheelhouse Inner Rear, LH	CD33C279A55AB Panel, Quarter Wheelhouse Inner Rear, LH Structural. Cat A Only	-	1	Enquire
27	CD33C279A54AC	Panel, Quarter Wheelhouse Inner Rear RH	CD33C279A54AC Panel, Quarter Wheelhouse Inner Rear RH Structural. Cat A Only	-	1	Enquire
28	6G3368676AA	MONOBOLT 6.5x14 BLND	6G3368676AA MONOBOLT 6.5x14 BLND -	-	A/R	Enquire
29	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET -	-	6	Enquire
30	CD3341037AA	Infill, Rear Quarter Panel, LH	CD3341037AA Infill, Rear Quarter Panel, LH Structural. Cat A Only	-	1	Enquire
31	CD3341036AA	Infill, Rear Quarter Panel, RH	CD3341036AA Infill, Rear Quarter Panel, RH Structural. Cat A Only	-	1	Enquire
32	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	4	Enquire
33	CD3343422AA	Washer, 81 x 21 x 1.6	CD3343422AA Washer, 81 x 21 x 1.6 Up to 17.5MY	-	2	Enquire
34	GD3328614AA	FOAM SEALING WASHER	GD3328614AA FOAM SEALING WASHER 17.5MY on	-	2	Enquire
