Aston Martin GT VANQUISH (2013-2018) - Instrument and Console Panels - Centre Console Armrest, page2

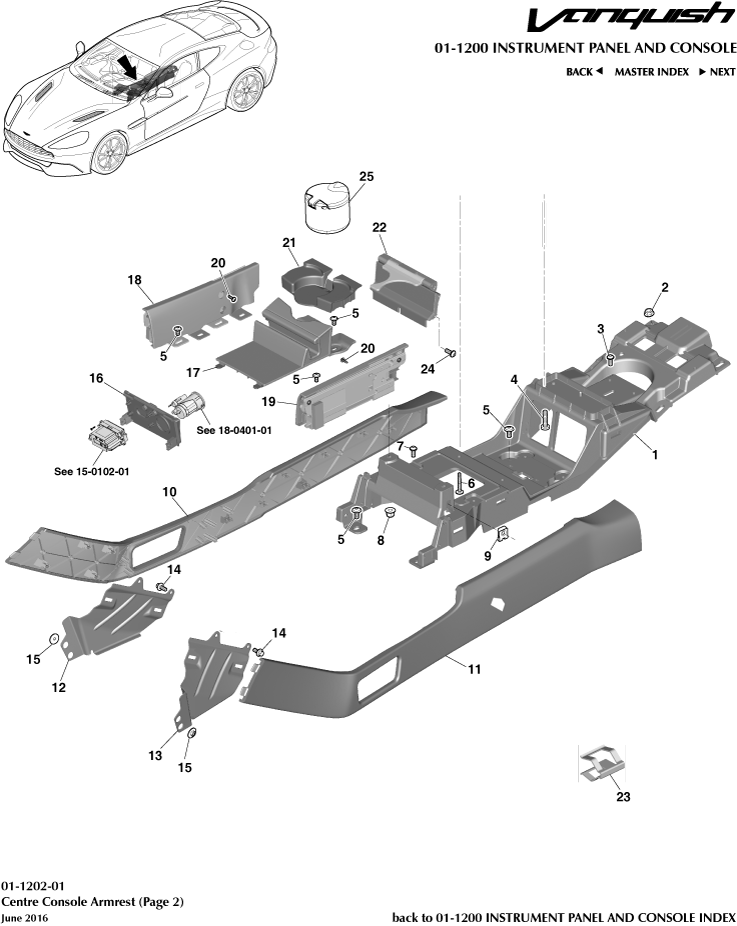

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3367446ABW	Panel Assembly, Console Lower, LHS	CD3367446ABW Panel Assembly, Console Lower, LHS Non-Height Adjustable Seat. Includes Item 23	-	1	Enquire
-	HD33045R19AAW	FRT LWR CNSL TRM ASY	HD33045R19AAW FRT LWR CNSL TRM ASY 17MY on. Includes Item 23	-	1	Enquire
-	DD33044G38BBW	Cup Holder Assembly, Front	DD33044G38BBW Cup Holder Assembly, Front Jewellery Pack	-	1	Enquire
1	DD33519F22AB	Centre Console Main Carrier	DD33519F22AB Centre Console Main Carrier -	-	1	Enquire
2	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	4	Enquire
3	13A5573CP	GASKET - SERVICE PANEL - DOOR LATCH - LH	13A5573CP GASKET - SERVICE PANEL - DOOR LATCH - LH -	-	2	Enquire
4	699842	SCREW M6x25 PAN HD	699842 SCREW M6x25 PAN HD -	-	5	Enquire
5	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8 -	-	14	Enquire
6	W714509S442	Screw, M4 x 30	W714509S442 Screw, M4 x 30 -	-	2	Enquire
7	703170	SCREW 4x8 PAN T/H CHROME FREE	703170 SCREW 4x8 PAN T/H CHROME FREE -	-	2	Enquire
8	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
10	CD3367445ABW	Panel Assembly, Console Lower, RHS	CD3367445ABW Panel Assembly, Console Lower, RHS Includes Item 23	-	1	Enquire
11	CD3367446AAW	Panel Assembly, Console Lower, LHS	CD3367446AAW Panel Assembly, Console Lower, LHS Height Adjustable Seat. Includes Item 23	-	1	Enquire
12	DD332943752AB	Support Bracket, Front Carpet, RH	DD332943752AB Support Bracket, Front Carpet, RH -	-	1	Enquire
13	DD332943751AB	Support Bracket, Front Carpet, LH	DD332943751AB Support Bracket, Front Carpet, LH -	-	1	Enquire
14	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	4	Enquire
15	13A5572CP	SERVICE PANEL - DOOR LATCH - LH	13A5572CP SERVICE PANEL - DOOR LATCH - LH -	-	4	Enquire
16	DD33045R19ACW	ASSY-SOCKET AUX	DD33045R19ACW ASSY-SOCKET AUX Includes Item 23	-	1	Enquire
17	DD3311648ACW	Mat Assembly, Front Stowage	DD3311648ACW Mat Assembly, Front Stowage -	-	1	Enquire
18	DD33281B04ABW	Panel Assembly, Front Side Stowage Brace, RH	DD33281B04ABW Panel Assembly, Front Side Stowage Brace, RH -	-	1	Enquire
19	DD33281B05ABW	Panel Assembly, Front Side Stowage Brace, LH	DD33281B05ABW Panel Assembly, Front Side Stowage Brace, LH -	-	1	Enquire
20	701559	Screw, M4 Self Tapping	701559 Screw, M4 Self Tapping -	-	4	Enquire
21	CD33F04704AB	Mat, Front Console Stowage	CD33F04704AB Mat, Front Console Stowage -	-	1	Enquire
22	DD33044G38ABW	Cup Holder Assembly, Front	DD33044G38ABW Cup Holder Assembly, Front -	-	1	Enquire
24	00RA374	SCREW - TORX - 3.5X12	00RA374 SCREW - TORX - 3.5X12 -	-	2	Enquire
25	AD43F7159AA	ASHTRAY	AD43F7159AA ASHTRAY Smoker's Kit	-	1	Enquire
