Handles & Locks Mechanisms - Tonneau Latches

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Handles & Locks Mechanisms - Tonneau Latches

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

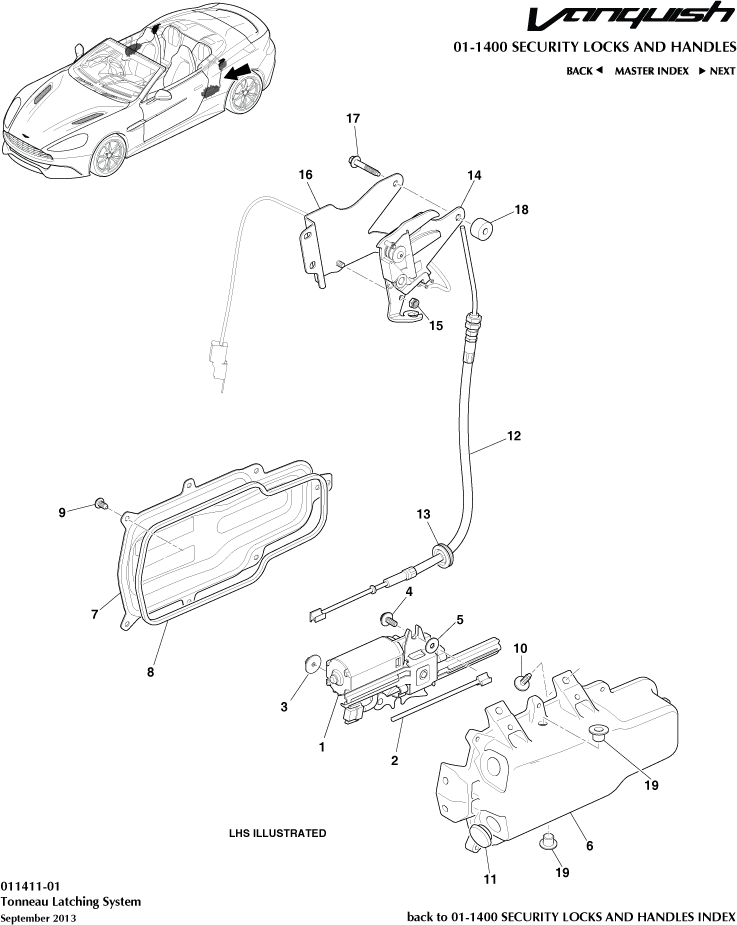

Handles & Locks Mechanisms - Tonneau Latches of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G439611273
TON LTCH ENCLSR RH
Includes Item 7 		- 2 Enquire
- 702290
Screw, M06 x 20, Thread Forming
From 15MY 		- 14 Enquire
- GD3354796AA
TON LTCH ASY-RH-VANQ
Stamped "L" 		- 1 Enquire
- 4G43N02091AB
Tie, Wrap
Wire to Harness fixing 		- 4 Enquire
1 4G433710477
Motor Tonneau Latch
- 		- 2 Enquire
2 4G4353923AA
WORM CABLE
- 		- 2 Enquire
3 702944
Nut, M6, Hex Flanged Head
- 		- 2 Enquire
4 703151
Screw M6x16 Washer Hex HD Chrome Free
- 		- 6 Enquire
5 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 6 Enquire
6 4G439611272
Enclosure, Tonneau Latch Motor Assy
Includes Item 7 		- 2 Enquire
9 701574
Screw, M6 x 12, Pan Head
Up to 15MY 		- 14 Enquire
10 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 8 Enquire
11 4G43301347AA
BLACK TPR BODY PLUG 20mm
- 		- 2 Enquire
14 GD3354797AA
TON LTCH ASY-LH-VANQ
Stamped "R" 		- 1 Enquire
15 702994
Nut, M6, Hex Head Thin
- 		- 2 Enquire
17 704075
Screw M6 x 25 Hex Flange
Plate to Body 		- 8 Enquire
18 ED33L43165AA
Spacer, Tonneau Latch Mounting Plate
- 		- 2 Enquire
19 6G3325919AA
Rubber Plug, 12mm, Black Thermoplastic
- 		- A/R Enquire
