Front Seats of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Front Seats

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

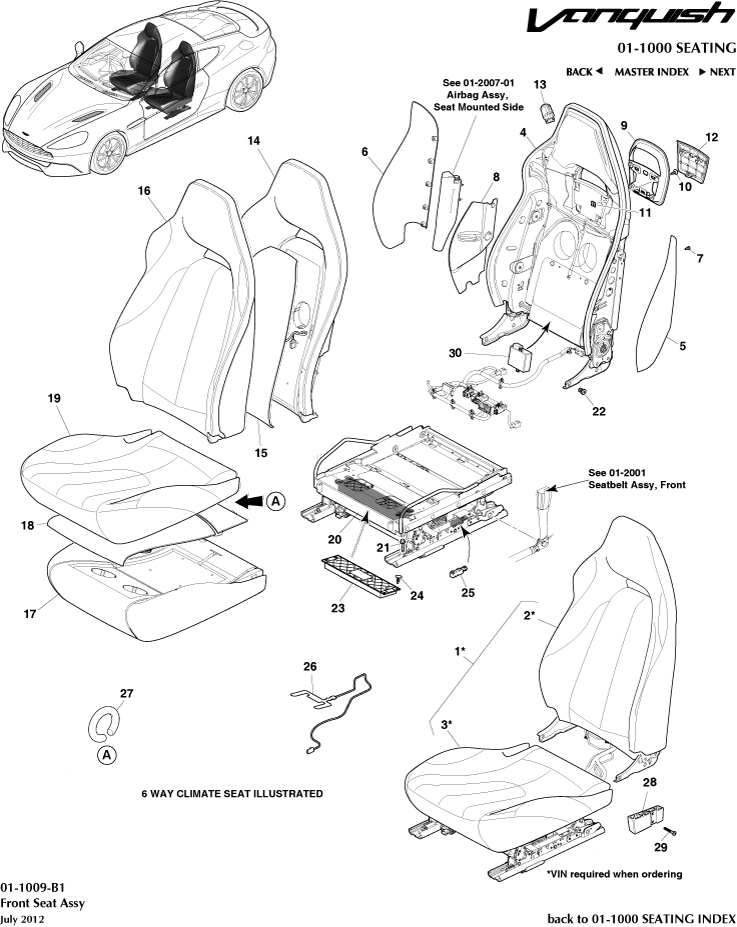

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD3360008AAW	ASSY FRONT SEAT RHS	FD3360008AAW ASSY FRONT SEAT RHS From 15MY	-	1	Enquire
-	CD3360009ABW	Front Seat Assembly Complete, Trimmed, LH	CD3360009ABW Front Seat Assembly Complete, Trimmed, LH Up To 15MY	-	1	Enquire
-	FD3360009ABW	ASSY FRONT SEAT LHS	FD3360009ABW ASSY FRONT SEAT LHS From 15MY	-	1	Enquire
-	FD3360136ACW	ASY FRT ST SQB RH	FD3360136ACW ASY FRT ST SQB RH From 15MY	-	1	Enquire
-	CD3360137AEW	ASY FRT ST SQB LH	CD3360137AEW ASY FRT ST SQB LH Up To 15MY	-	1	Enquire
-	FD3360137ACW	ASY FRT ST SQB LH	FD3360137ACW ASY FRT ST SQB LH From 15MY	-	1	Enquire
-	CD3364801ADW	ASSY FRT ST SQB FRM	CD3364801ADW ASSY FRT ST SQB FRM Includes Seat Back Leather	-	1	Enquire
-	CD33110003BA	Panel, Seat Back Extension Side, Inboard, LH	CD33110003BA Panel, Seat Back Extension Side, Inboard, LH -	-	1	Enquire
-	CD33110003AB	Panel, Seat Back Extension Side, Outboard, LH	CD33110003AB Panel, Seat Back Extension Side, Outboard, LH -	-	1	Enquire
-	CD33M2D456BA	Vac Form, Seat Airbag, LH	CD33M2D456BA Vac Form, Seat Airbag, LH -	-	1	Enquire
-	CD33644B20BB	Panel, Seat Back Finisher, Outer	CD33644B20BB Panel, Seat Back Finisher, Outer Dark Chrome	-	2	Enquire
-	ED33044H12AAW	Panel, Seat Back Finisher, Outer	ED33044H12AAW Panel, Seat Back Finisher, Outer Leather Wrapped	-	2	Enquire
-	CD33605W00AC	ST REL STRAP	CD33605W00AC ST REL STRAP Black, woven	-	2	Enquire
-	AD33062A00BB	SEAT TILT SWITCH	AD33062A00BB SEAT TILT SWITCH Satin Chrome, From 15MY	-	2	Enquire
-	DD33062A00CA	SEAT TILT SWITCH	DD33062A00CA SEAT TILT SWITCH Dark Chrome, Up To 15MY	-	2	Enquire
-	DD33062A00CB	SEAT TILT SWITCH	DD33062A00CB SEAT TILT SWITCH Dark Chrome, From 15MY	-	2	Enquire
-	AD434D9513AA	Foam, Squab	AD434D9513AA Foam, Squab Heated	-	2	Enquire
-	AD4314D696AB	Heating Element, Squab	AD4314D696AB Heating Element, Squab Element only	-	2	Enquire
-	CD3364573ABW	Cover Assembly, Front Seat Squab, LH	CD3364573ABW Cover Assembly, Front Seat Squab, LH Does Not Include Seat Back Leather	-	1	Enquire
-	CD339515AB	Foam, Cushion	CD339515AB Foam, Cushion Heated	-	2	Enquire
-	CD3314D698AB	Cooling Assy, Cushion	CD3314D698AB Cooling Assy, Cushion Heated	-	2	Enquire
-	AD43L60344BC	ASSY FRONT SEAT CUSHION FRAME NON HEIGHT	AD43L60344BC ASSY FRONT SEAT CUSHION FRAME NON HEIGHT Fixed Height	-	2	Enquire
-	CD33V604K40AB	Frame, Front Seat Cushion	CD33V604K40AB Frame, Front Seat Cushion Fixed Height with ISOfix	-	2	Enquire
1	CD3360008ABW	Front Seat Assembly Complete, Trimmed, RH	CD3360008ABW Front Seat Assembly Complete, Trimmed, RH Up To 15MY	-	1	Enquire
2	CD3360136AEW	ASY FRT ST SQB RH	CD3360136AEW ASY FRT ST SQB RH Up To 15MY	-	1	Enquire
3	CD3360050AAW	Cushion Assy, Front Seat Trimmed	CD3360050AAW Cushion Assy, Front Seat Trimmed -	-	2	Enquire
4	CD3364800ADW	FRT ST SQB FRAM MEM	CD3364800ADW FRT ST SQB FRAM MEM Includes Seat Back Leather	-	1	Enquire
5	CD33110002BA	Panel, Seat Back Extension Side, Inboard, RH	CD33110002BA Panel, Seat Back Extension Side, Inboard, RH -	-	1	Enquire
6	CD33110002AB	Panel, Seat Back Extension Side, Outboard, RH	CD33110002AB Panel, Seat Back Extension Side, Outboard, RH -	-	1	Enquire
7	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP -	-	10	Enquire
8	CD33M2D455AA	Vac Form, Seat Airbag, RH	CD33M2D455AA Vac Form, Seat Airbag, RH -	-	1	Enquire
9	CD33644B20AA	Panel, Seat Back Finisher, Outer	CD33644B20AA Panel, Seat Back Finisher, Outer Satin Chrome	-	2	Enquire
10	W502670S442	Screw, 4.2 x 16, Self Tapping	W502670S442 Screw, 4.2 x 16, Self Tapping -	-	8	Enquire
12	CD33600E68AAW	Panel, Seat Back Finisher, Inner	CD33600E68AAW Panel, Seat Back Finisher, Inner -	-	2	Enquire
13	AD33062A00BA	SEAT TILT SWITCH	AD33062A00BA SEAT TILT SWITCH Satin Chrome, Up To 15MY	-	2	Enquire
14	AD434D9513BA	FRONT SEAT SQUAB FOAM CLIMATE	AD434D9513BA FRONT SEAT SQUAB FOAM CLIMATE Cooled	-	2	Enquire
15	AD43600B70AC	Cooling Assy, Squab	AD43600B70AC Cooling Assy, Squab Element and Fans	-	2	Enquire
16	CD3364572ABW	Cover Assembly, Front Seat Squab, RH	CD3364572ABW Cover Assembly, Front Seat Squab, RH Does Not Include Seat Back Leather	-	1	Enquire
17	CD339515BC	Foam, Cushion	CD339515BC Foam, Cushion Cooled	-	2	Enquire
18	CD33600B68AB	Heating Element, Cushion	CD33600B68AB Heating Element, Cushion Cooled	-	2	Enquire
19	CD3362900ABW	Cover Assy, Front Seat Cushion	CD3362900ABW Cover Assy, Front Seat Cushion -	-	2	Enquire
20	AD43L60344AC	FRONT SEAT CUSHION FRAME HEIGHT ADJ	AD43L60344AC FRONT SEAT CUSHION FRAME HEIGHT ADJ Height Adjustable	-	2	Enquire
21	22AA653GP	PNL WHL ARCH LINER COVER LH	22AA653GP PNL WHL ARCH LINER COVER LH -	-	8	Enquire
22	AD4361538AA	BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO	AD4361538AA BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO -	-	4	Enquire
23	CD3314C249AE	SEAT ECU	CD3314C249AE SEAT ECU -	-	2	Enquire
24	701581	FIRTREE FLAT HEAD	701581 FIRTREE FLAT HEAD -	-	8	Enquire
26	AD4314C288AA	Sensor, passenger belt reminder	AD4314C288AA Sensor, passenger belt reminder -	-	1	Enquire
27	CD337410025	Clip, Metal, Seat Cover Retaining	CD337410025 Clip, Metal, Seat Cover Retaining -	-	A/R	Enquire
28	FD3360434BA	PUSHER BLOCK	FD3360434BA PUSHER BLOCK From 15MY	-	2	Enquire
29	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE From 15MY	-	2	Enquire
30	AD43600B66AA	ST CLMT ECU	AD43600B66AA ST CLMT ECU 1 per Cooled Seat	-	2	Enquire
