Aston Martin GT VANQUISH (2013-2018) - Body Structure - Ancillary Parts, Coupe 14.5MY, page 1

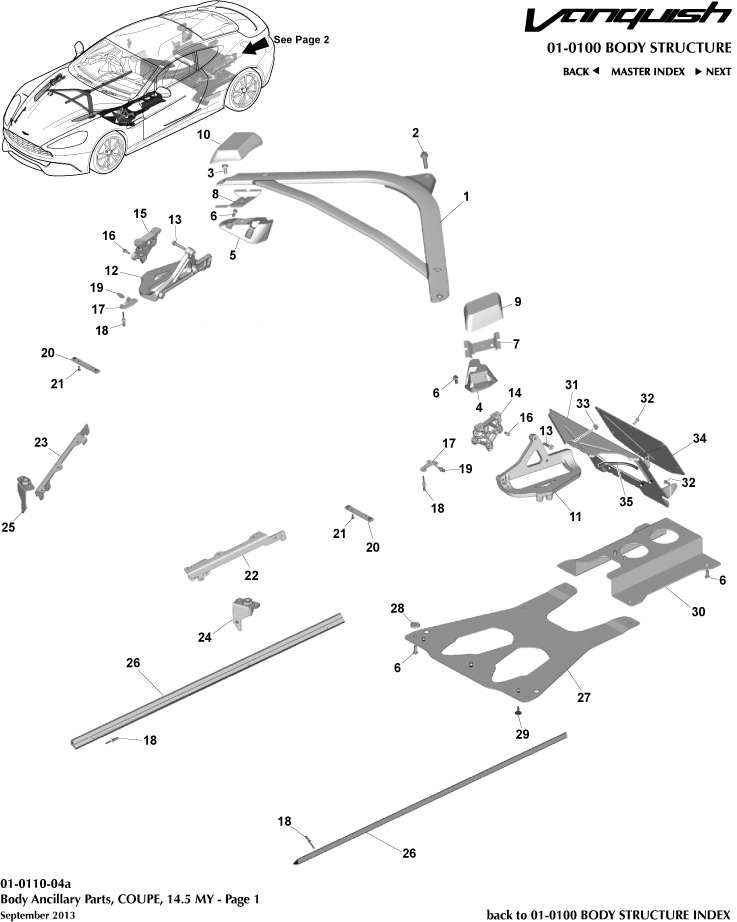

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD LHD	-	1	Enquire
1	DD43108A75BC	ASSY BRACE FRT CS	DD43108A75BC ASSY BRACE FRT CS -	-	1	Enquire
2	DG4300512AA	Screw (Taptite), M10 x 40 Hex Flange Head IN STOCK	DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head - IN STOCK	-	1	Enquire
3	702209	Bolt, M10 x 25, Torque Drive IN STOCK	702209 Bolt, M10 x 25, Torque Drive - IN STOCK	-	4	Enquire
4	GOED33108A87AA	Bracket, Front Cross Brace, LH	GOED33108A87AA Bracket, Front Cross Brace, LH -	-	1	Enquire
5	GOED33108A86AA	BRKT FRT CS BRA RH	GOED33108A86AA BRKT FRT CS BRA RH -	-	1	Enquire
6	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder - IN STOCK	-	8	Enquire
7	ED3318A009AA	HEX BLK BRK LH	ED3318A009AA HEX BLK BRK LH -	-	1	Enquire
8	ED3318A008AA	HEX BLK BRK RH	ED3318A008AA HEX BLK BRK RH -	-	1	Enquire
9	ED3310875AA	Hexcell Block Assy, LH	ED3310875AA Hexcell Block Assy, LH -	-	1	Enquire
10	ED3310874AA	Hexcell Block Assy, RH	ED3310874AA Hexcell Block Assy, RH -	-	1	Enquire
11	DG435341AA	Bracket, ECU Mounting, LH	DG435341AA Bracket, ECU Mounting, LH -	-	1	Enquire
12	DG435340AA	Bracket, ECU Mounting, RH	DG435340AA Bracket, ECU Mounting, RH -	-	1	Enquire
13	703108	BOLT M8x45 HEX FLG 8	703108 BOLT M8x45 HEX FLG 8 -	-	6	Enquire
14	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	DG4316A682AA Reinforcement, Hood Hinge on Body, LH -	-	1	Enquire
15	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	DG4316A681AA Reinforcement, Hood Hinge on Body, RH -	-	1	Enquire
17	DD3318178AA	Bracket, Gas Damper Mounting	DD3318178AA Bracket, Gas Damper Mounting -	-	2	Enquire
18	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	12	Enquire
20	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
21	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	4	Enquire
22	DG43043B20AA	Tube, Passenger Air Bag Initiator, LH	DG43043B20AA Tube, Passenger Air Bag Initiator, LH -	-	1	Enquire
23	DG43043B19AA	Tube, Passenger Air Bag Initiator, RH	DG43043B19AA Tube, Passenger Air Bag Initiator, RH -	-	1	Enquire
24	DG4313069AB	PNL HD/LP MNTG LH	DG4313069AB PNL HD/LP MNTG LH -	-	1	Enquire
25	DG4313068AB	PNL HD/LP MTNG RH	DG4313068AB PNL HD/LP MTNG RH -	-	1	Enquire
26	GOCD3320416AA	Reinforcement, Door to Sill	GOCD3320416AA Reinforcement, Door to Sill -	-	2	Enquire
27	GODG43111K36AC	Tunnel Reinforcement, Front	GODG43111K36AC Tunnel Reinforcement, Front -	-	1	Enquire
28	GODG431660AA	Spacer, Tunnel Reinforcement, Front	GODG431660AA Spacer, Tunnel Reinforcement, Front -	-	4	Enquire
29	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD -	-	2	Enquire
30	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre -	-	1	Enquire
31	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD RHD	-	1	Enquire
32	701553	Screw, M6 x 16, Pan Head IN STOCK	701553 Screw, M6 x 16, Pan Head - IN STOCK	-	12	Enquire
33	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE - IN STOCK	-	2	Enquire
35	3786191	EDGE PROTECTION STRIP (280mm)	3786191 EDGE PROTECTION STRIP (280mm) -	-	A/R	Enquire
