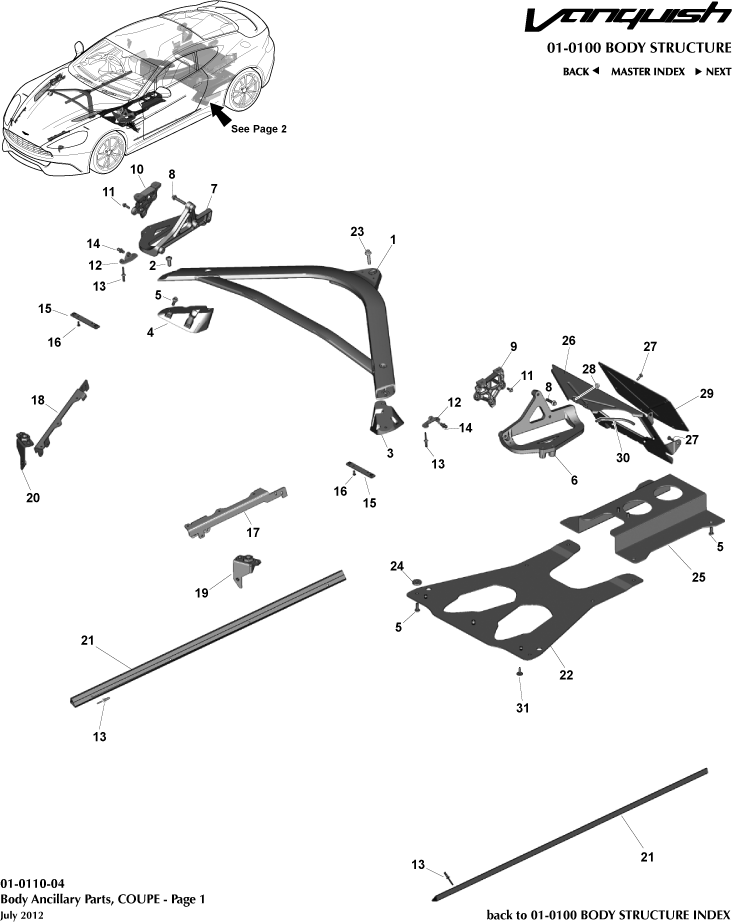

Aston Martin GT VANQUISH (2013-2018) - Body Structure - Ancillary Parts, Coupe, page 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD335341AA	BRACKET ECU	FD335341AA BRACKET ECU From 15MY	-	1	Enquire
-	FD335340AA	BRACKET ECU	FD335340AA BRACKET ECU From 15MY	-	1	Enquire
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD LHD	-	1	Enquire
1	DD43108A75DA	Brace Assembly, Front Cross	DD43108A75DA Brace Assembly, Front Cross -	-	1	Enquire
2	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	4	Enquire
3	GODG43108A87AD	Bracket, Front Cross Brace, LH	GODG43108A87AD Bracket, Front Cross Brace, LH -	-	1	Enquire
4	GODG43108A86AD	Bracket, Front Cross Brace, RH	GODG43108A86AD Bracket, Front Cross Brace, RH -	-	1	Enquire
5	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	8	Enquire
6	DG435341AA	Bracket, ECU Mounting, LH	DG435341AA Bracket, ECU Mounting, LH -	-	1	Enquire
7	DG435340AA	Bracket, ECU Mounting, RH	DG435340AA Bracket, ECU Mounting, RH -	-	1	Enquire
8	703108	BOLT M8x45 HEX FLG 8	703108 BOLT M8x45 HEX FLG 8 -	-	6	Enquire
9	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	DG4316A682AA Reinforcement, Hood Hinge on Body, LH -	-	1	Enquire
10	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	DG4316A681AA Reinforcement, Hood Hinge on Body, RH -	-	1	Enquire
12	DD3318178AA	Bracket, Gas Damper Mounting	DD3318178AA Bracket, Gas Damper Mounting -	-	2	Enquire
13	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	12	Enquire
15	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
16	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	4	Enquire
17	DG43043B20AA	Tube, Passenger Air Bag Initiator, LH	DG43043B20AA Tube, Passenger Air Bag Initiator, LH -	-	1	Enquire
18	DG43043B19AA	Tube, Passenger Air Bag Initiator, RH	DG43043B19AA Tube, Passenger Air Bag Initiator, RH -	-	1	Enquire
19	DG4313069AB	PNL HD/LP MNTG LH	DG4313069AB PNL HD/LP MNTG LH -	-	1	Enquire
20	DG4313068AB	PNL HD/LP MTNG RH	DG4313068AB PNL HD/LP MTNG RH -	-	1	Enquire
21	GOCD3320416AA	Reinforcement, Door to Sill	GOCD3320416AA Reinforcement, Door to Sill -	-	2	Enquire
22	GODG43111K36AC	Tunnel Reinforcement, Front	GODG43111K36AC Tunnel Reinforcement, Front -	-	1	Enquire
23	DG4300512AA	Screw (Taptite), M10 x 40 Hex Flange Head	DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head -	-	1	Enquire
24	GODG431660AA	Spacer, Tunnel Reinforcement, Front	GODG431660AA Spacer, Tunnel Reinforcement, Front -	-	4	Enquire
25	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre -	-	1	Enquire
26	4G43111C61AD	PNL DUMMY FLR FRT	4G43111C61AD PNL DUMMY FLR FRT RHD	-	1	Enquire
27	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	12	Enquire
28	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	2	Enquire
31	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD -	-	2	Enquire
