Rear Seats, Coupe

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Rear Seats, Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

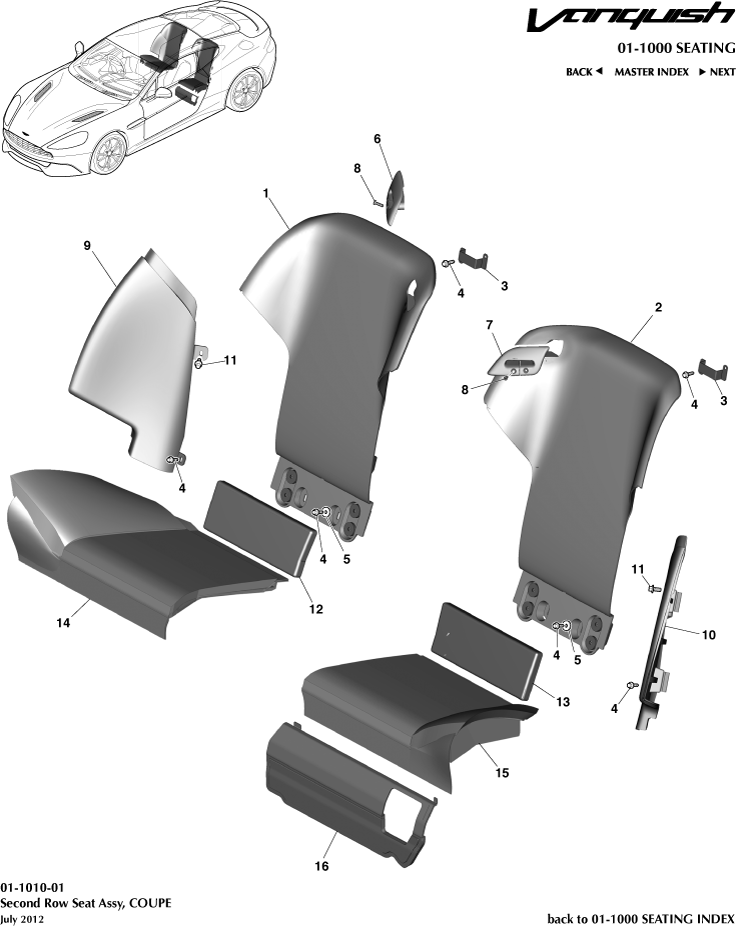

Rear Seats, Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33611B90ABW
Bezel, Rear Seatbelt, RH
Dark Chrome 		- 1 Enquire
- CD33611B91ABW
Bezel, Rear Seatbelt, LH
Dark Chrome 		- 1 Enquire
1 CD3360032ABW
Rear Seat Back Assy, RH
- 		- 1 Enquire
2 CD3360033ACW
Rear Seat Back Assy, LH
- 		- 1 Enquire
3 4G4341171AB
Bracket, Squab Rear Fixing
- 		- 2 Enquire
4 703026
Screw, M5 x 16, Hex Flange Head
- 		- 10 Enquire
5 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 4 Enquire
6 4G43611B90BA
Bezel, Rear Seatbelt, RH
Satin Chrome 		- 1 Enquire
7 4G43611B91BA
Bezel, Rear Seatbelt, LH
Satin Chrome 		- 1 Enquire
8 703076
Screw, M4 x 20, Flat Socket Countersunk
- 		- 4 Enquire
9 CD3360594AAW
Bolster Panel Assy, Rear Seat, RH
- 		- 1 Enquire
10 CD3360595AAW
Bolster Panel Assy, Rear Seat, LH
- 		- 1 Enquire
11 700606
Screw, M6 x 12, Hex Flange Head
- 		- 2 Enquire
12 CD3363846AAW
Lumbar Pad, Rear Seat, RH
- 		- 1 Enquire
13 CD3363847AAW
Lumbar Pad, Rear Seat, LH
- 		- 1 Enquire
14 CD3360080ACW
Cushion, Rear Seat, RH
- 		- 1 Enquire
15 CD3360081ACW
Cushion, Rear Seat, LH
- 		- 1 Enquire
16 CD3310K973ABW
Heel Board, Rear, LH
- 		- 1 Enquire
