Interior Trim & Ornamentation - Load Compartment Trim, Volante of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

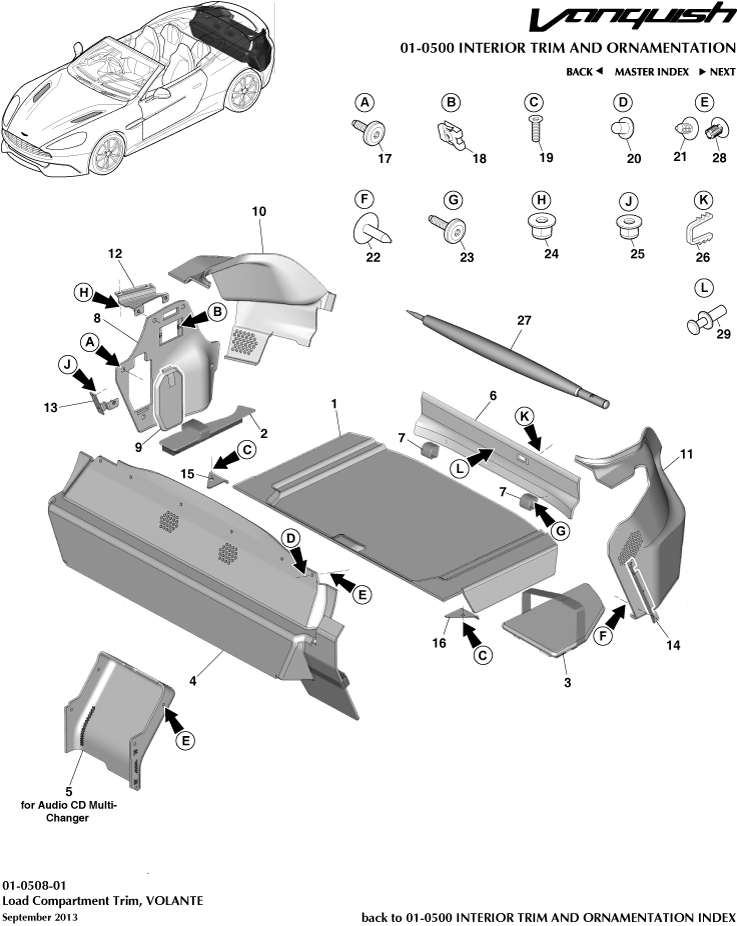

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Load Compartment Trim, Volante

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED3344866BCW	Floor Carpet, Load Compartment, Rear	ED3344866BCW Floor Carpet, Load Compartment, Rear With CD Multichanger	-	1	Enquire
-	ED33130A60BCW	Loadspace Carpet, Front Bulkhead	ED33130A60BCW Loadspace Carpet, Front Bulkhead With CD Multichanger	-	1	Enquire
--	703742	Fastener, Push In, 6.5 x 6.0 IN STOCK	703742 Fastener, Push In, 6.5 x 6.0 With CD Multichanger IN STOCK	-	11	Enquire
--	6G3329012BA	Fastener, Fir Tree, Alcantara Trimmed	6G3329012BA Fastener, Fir Tree, Alcantara Trimmed Ivory	-	13	Enquire
--	6G3329012CA	ALCANTARA TRIMMED FIR TREE - TAILORS GREY IN STOCK	6G3329012CA ALCANTARA TRIMMED FIR TREE - TAILORS GREY Tailors Grey IN STOCK	-	13	Enquire
--	6G3329012DA	ALCANTARA TRIMMED FIR TREE - SHARK BLUE	6G3329012DA ALCANTARA TRIMMED FIR TREE - SHARK BLUE Shark Blue	-	13	Enquire
--	6G3329012EA	ALCANTARA TRIMMED FIR TREE - ABSYNTHE GREEN	6G3329012EA ALCANTARA TRIMMED FIR TREE - ABSYNTHE GREEN Absynthe Green	-	13	Enquire
--	6G3329012FA	ALCANTARA TRIMMED FIR TREE - ARCTIC BLUE	6G3329012FA ALCANTARA TRIMMED FIR TREE - ARCTIC BLUE Arctic Blue	-	13	Enquire
--	6G3329012GA	ALCANTARA TRIMMED FIR TREE -CHANCELLOR RED	6G3329012GA ALCANTARA TRIMMED FIR TREE -CHANCELLOR RED Chancellor Red	-	13	Enquire
--	6G3329012HA	ALCANTARA TRIMMED FIR TREE - BLUE HAZE	6G3329012HA ALCANTARA TRIMMED FIR TREE - BLUE HAZE Blue Haze	-	13	Enquire
--	6G3329012JA	ALCANTARA TRIMMED FIR TREE - MOON SHADOW IN STOCK	6G3329012JA ALCANTARA TRIMMED FIR TREE - MOON SHADOW Moon Shadow IN STOCK	-	13	Enquire
--	22AA034GP	ASSY BRKT FNDR REINF LONGI LH	22AA034GP ASSY BRKT FNDR REINF LONGI LH Light Tan	-	13	Enquire
--	6G3329012LA	ALCANTARA TRIMMED FIR TREE - BITTER CHOCOLATE	6G3329012LA ALCANTARA TRIMMED FIR TREE - BITTER CHOCOLATE Bitter Chocolate	-	13	Enquire
1	ED3344866ABW	Floor Carpet, Load Compartment, Rear	ED3344866ABW Floor Carpet, Load Compartment, Rear Less CD Multichanger	-	1	Enquire
2	ED3313152AAW	Trim Assembly, Side Floor Panel, RH	ED3313152AAW Trim Assembly, Side Floor Panel, RH -	-	1	Enquire
3	ED3313153AAW	Trim Assembly, Side Floor Panel, LH	ED3313153AAW Trim Assembly, Side Floor Panel, LH -	-	1	Enquire
4	ED33454B04ACW	CRPT FLR L/C FRT	ED33454B04ACW CRPT FLR L/C FRT Less CD Multichanger	-	1	Enquire
5	ED3319C191ACW	Carpet, Load Compartment Audio Cover	ED3319C191ACW Carpet, Load Compartment Audio Cover With CD Multichanger	-	1	Enquire
6	ED33100A86AAW	Carpet Assembly, Latch Bracket	ED33100A86AAW Carpet Assembly, Latch Bracket -	-	1	Enquire
7	ED330936ABW	Retainer, Umbrella	ED330936ABW Retainer, Umbrella -	-	2	Enquire
8	00RA089	BOLT - M6X20 - HEX - WASHER - D20	00RA089 BOLT - M6X20 - HEX - WASHER - D20 -	-	1	Enquire
9	ED3345702AAW	Door and Strap Assembly, RH	ED3345702AAW Door and Strap Assembly, RH -	-	1	Enquire
10	ED33454K65ACW	Trim Assembly, Side Panel, RH	ED33454K65ACW Trim Assembly, Side Panel, RH -	-	1	Enquire
11	ED33454K64ADW	Trim Assembly, Side Panel, LH	ED33454K64ADW Trim Assembly, Side Panel, LH -	-	1	Enquire
12	ED33423A34AB	Bracket Assembly, Load Compartment Side Panel Rear, RH	ED33423A34AB Bracket Assembly, Load Compartment Side Panel Rear, RH -	-	1	Enquire
13	ED33423A35AB	Bracket Assembly, Angle, RH	ED33423A35AB Bracket Assembly, Angle, RH -	-	1	Enquire
14	CD33423A35AB	ANGLE BRACKETS LH	CD33423A35AB ANGLE BRACKETS LH -	-	1	Enquire
15	CD3317B048AB	FLOOR BRACKET RH	CD3317B048AB FLOOR BRACKET RH -	-	1	Enquire
16	CD3317B049AB	FLOOR BRACKET LH	CD3317B049AB FLOOR BRACKET LH -	-	1	Enquire
17	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20 IN STOCK	-	5	Enquire
19	703738	SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18	703738 SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 -	-	2	Enquire
20	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic -	-	6	Enquire
21	703742	Fastener, Push In, 6.5 x 6.0 IN STOCK	703742 Fastener, Push In, 6.5 x 6.0 Less CD Multichanger IN STOCK	-	6	Enquire
22	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	2	Enquire
23	5R13FA0036AA	Screw and Washer M6x28 Pan hd IN STOCK	5R13FA0036AA Screw and Washer M6x28 Pan hd - IN STOCK	-	2	Enquire
24	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking - IN STOCK	-	2	Enquire
25	703165	NUT M5 HEX FLG PLAS CHROME FREE IN STOCK	703165 NUT M5 HEX FLG PLAS CHROME FREE - IN STOCK	-	2	Enquire
26	4G43N623361AA	Clip, U Type, Emergency Handle	4G43N623361AA Clip, U Type, Emergency Handle -	-	1	Enquire
27	7G43700712BB	AML BLK STD UMBRELLA	7G43700712BB AML BLK STD UMBRELLA -	-	1	Enquire
28	6G3329012AA	ALCANTARA TRIMMED FIR TREE - OBSIDIAN BLACK IN STOCK	6G3329012AA ALCANTARA TRIMMED FIR TREE - OBSIDIAN BLACK Obsidian Black IN STOCK	-	13	Enquire
