Instrument and Console Panels - IP Trimmed Panels of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Instrument and Console Panels - IP Trimmed Panels

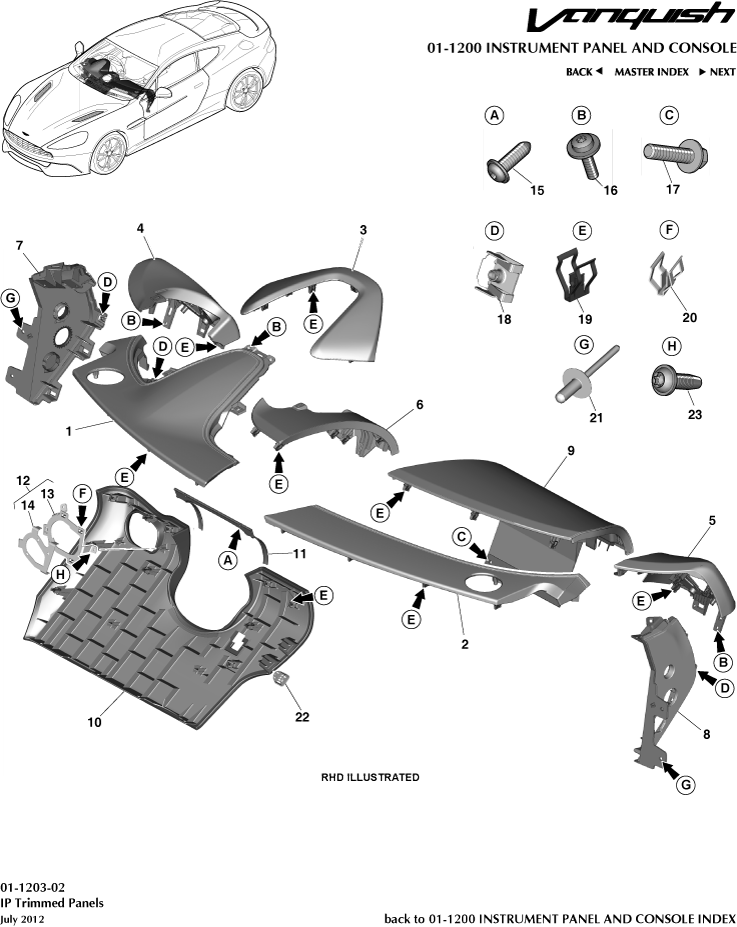

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33C043C54ACW	DRIVER UPPER LHD	CD33C043C54ACW DRIVER UPPER LHD Includes Items 18 and 19	-	1	Enquire
-	CD33C043C54CCW	PASS UP LHD	CD33C043C54CCW PASS UP LHD Includes Item 19	-	1	Enquire
-	CD33C04606BBW	BZL I/PNL CLUSTER OP	CD33C04606BBW BZL I/PNL CLUSTER OP Includes Item 19	-	1	Enquire
-	CD33C04635ABW	PASS UPR OUTER LHD	CD33C04635ABW PASS UPR OUTER LHD Includes Item 19	-	1	Enquire
-	CD33C04634ACW	DRIVER UPP OUTER LH	CD33C04634ACW DRIVER UPP OUTER LH Includes Item 19	-	1	Enquire
-	CD3302695ACW	DRVR UPR INNER LHD	CD3302695ACW DRVR UPR INNER LHD Includes Item 19	-	1	Enquire
-	CD33C044H58AEW	PASS A/BAG DOOR LHD	CD33C044H58AEW PASS A/BAG DOOR LHD Includes Item 19	-	1	Enquire
-	CD33C04325ADW	DRIVERS LOWER LHD	CD33C04325ADW DRIVERS LOWER LHD Includes Items 19 and 21	-	1	Enquire
-	DD332C356AB	Bracket Assy, Master Light Switch, LHD	DD332C356AB Bracket Assy, Master Light Switch, LHD Includes Item 20	-	1	Enquire
-	DD3311A678BC	Bracket, Master Light Switch, LHD	DD3311A678BC Bracket, Master Light Switch, LHD -	-	1	Enquire
-	DD3311A678DB	Bracket, Master Light Switch, LHD	DD3311A678DB Bracket, Master Light Switch, LHD -	-	1	Enquire
1	CD33C043C54BCW	DRIVER UPPER RHD	CD33C043C54BCW DRIVER UPPER RHD Includes Items 18 and 19	-	1	Enquire
2	CD33C043C54DCW	PASS UPPER RHD	CD33C043C54DCW PASS UPPER RHD Includes Item 19	-	1	Enquire
3	CD33C04606DBW	HD IP BZL TOP TRIM	CD33C04606DBW HD IP BZL TOP TRIM Includes Item 19	-	1	Enquire
4	CD33C04634BCW	DRIVER UPR INR RHD	CD33C04634BCW DRIVER UPR INR RHD Includes Item 19	-	1	Enquire
5	CD33C04635BCW	PASS UPR OUTER RHD	CD33C04635BCW PASS UPR OUTER RHD Includes Item 19	-	1	Enquire
6	CD3302695BCW	DRVR UPR INNER RHD	CD3302695BCW DRVR UPR INNER RHD Includes Item 19	-	1	Enquire
7	DD3304316AAW	End Panel Assy, RH	DD3304316AAW End Panel Assy, RH Includes Item 18	-	1	Enquire
8	DD3304317AAW	End Panel Assy, LH	DD3304317AAW End Panel Assy, LH Includes Item 18	-	1	Enquire
9	CD33C044H58BEW	PASS A/BAG DOOR RHD	CD33C044H58BEW PASS A/BAG DOOR RHD Includes Item 19	-	1	Enquire
10	CD33C04325BDW	DRIVER LOWER RHD	CD33C04325BDW DRIVER LOWER RHD Includes Items 19 and 21	-	1	Enquire
11	22AB205GP	ASSY PNL RR FENDER SUPPORT UPR RH	22AB205GP ASSY PNL RR FENDER SUPPORT UPR RH -	-	1	Enquire
12	DD332C356BC	Bracket Assy, Master Light Switch, RHD	DD332C356BC Bracket Assy, Master Light Switch, RHD Includes Item 20	-	1	Enquire
13	DD3311A678AC	Bracket, Master Light Switch, RHD	DD3311A678AC Bracket, Master Light Switch, RHD -	-	1	Enquire
14	DD3311A678CC	Bracket, Master Light Switch, RHD	DD3311A678CC Bracket, Master Light Switch, RHD -	-	1	Enquire
15	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping -	-	2	Enquire
16	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head -	-	13	Enquire
17	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head -	-	3	Enquire
18	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING -	-	3	Enquire
19	W700970S307	Clip, Push-on, 8.5 x 16.0 x 1.7	W700970S307 Clip, Push-on, 8.5 x 16.0 x 1.7 -	-	45	Enquire
21	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL -	-	4	Enquire
22	4G43R8200AA	Grille, Panel Assy Lower	4G43R8200AA Grille, Panel Assy Lower -	-	1	Enquire
23	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw -	-	3	Enquire
