Interior Trim & Ornamentation - Main Floor Trim, LHD of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Main Floor Trim, LHD

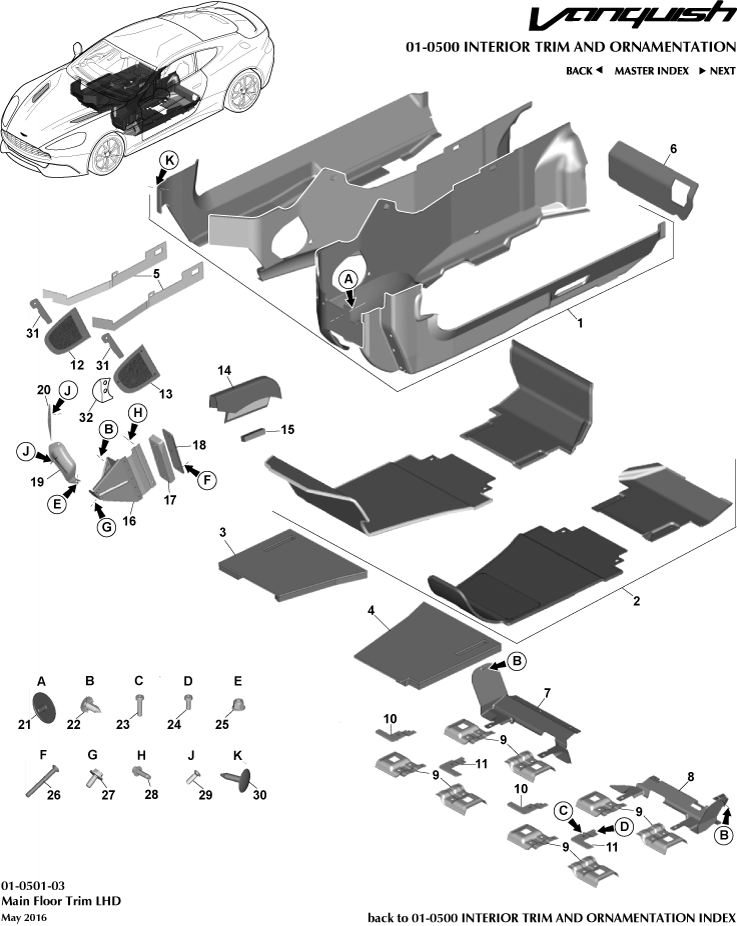

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33281B11AEW	KIT ASSY SD CRPT LHD	CD33281B11AEW KIT ASSY SD CRPT LHD Heavyweight, From 15MY	-	1	Enquire
-	CD33281B11BCW	Kit Assy, Side Carpet	CD33281B11BCW Kit Assy, Side Carpet Lightweight, Up To 15MY	-	1	Enquire
-	FD33281B11ABW	KIT ASSY SD CRPT LHD	FD33281B11ABW KIT ASSY SD CRPT LHD Lightweight, From 15MY	-	1	Enquire
-	CD338310017	Kit, Floor Carpets, LHD	CD338310017 Kit, Floor Carpets, LHD Lightweight	-	1	Enquire
-	CD3310K973ADW	Heel Board, Rear, LH	CD3310K973ADW Heel Board, Rear, LH Volante	-	1	Enquire
-	FD33100A90AA	RH RR FLR SPRT PNL	FD33100A90AA RH RR FLR SPRT PNL From 15MY	-	1	Enquire
-	FD33100A91AA	LH RR SUPT PANEL	FD33100A91AA LH RR SUPT PANEL From 15MY	-	1	Enquire
-	DD33311A76BA	Speaker Grille, Footwell, RH, Iridium	DD33311A76BA Speaker Grille, Footwell, RH, Iridium Includes Fixings	-	1	Enquire
-	DD33311A77BA	Speaker Grille, Footwell, LH, Iridium	DD33311A77BA Speaker Grille, Footwell, LH, Iridium Includes Fixings	-	1	Enquire
-	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest Black Pedals	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	A/R	Enquire
1	CD33281B11ADW	KIT ASSY SD CRPT LHD	CD33281B11ADW KIT ASSY SD CRPT LHD Heavyweight, Up To 15MY	-	1	Enquire
2	CD338310016	Kit, Floor Carpets, LHD	CD338310016 Kit, Floor Carpets, LHD Heavyweight	-	1	Enquire
3	DD33130B52BB	Support, Floor Carpet, RH	DD33130B52BB Support, Floor Carpet, RH -	-	1	Enquire
4	DD33130B53BB	Support, Floor Carpet, LH	DD33130B53BB Support, Floor Carpet, LH -	-	1	Enquire
5	DD33130W48AB	Backing Plate, ABS	DD33130W48AB Backing Plate, ABS -	-	2	Enquire
6	CD3310K973ACW	Heel Board, Rear, LH	CD3310K973ACW Heel Board, Rear, LH Coupe	-	1	Enquire
7	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH Up To 15MY	-	1	Enquire
8	8G43100A91AC	Support Panel, Rear Floor, LH	8G43100A91AC Support Panel, Rear Floor, LH Up To 15MY	-	1	Enquire
9	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	8	Enquire
10	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	2	Enquire
11	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	2	Enquire
12	DD33311A76AA	Speaker Grille, Footwell, RH, Black	DD33311A76AA Speaker Grille, Footwell, RH, Black Includes Fixings	-	1	Enquire
13	DD33311A77AA	Speaker Grille, Footwell, LH, Black	DD33311A77AA Speaker Grille, Footwell, LH, Black Includes Fixings	-	1	Enquire
14	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD -	-	1	Enquire
15	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
16	CD333N238BB	Bracket, Foot Rest	CD333N238BB Bracket, Foot Rest -	-	1	Enquire
17	CD33044J09AA	Energy Absorber, Foot Rest	CD33044J09AA Energy Absorber, Foot Rest -	-	1	Enquire
18	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY Silver Pedals	-	1	Enquire
19	DD3318449AB	Scuff Plate, Accelerator	DD3318449AB Scuff Plate, Accelerator -	-	1	Enquire
20	DD3319L525AA	Scuff Plate, Accelerator, Upper	DD3319L525AA Scuff Plate, Accelerator, Upper -	-	1	Enquire
21	697564	Retainer, Push On	697564 Retainer, Push On -	-	3	Enquire
25	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 -	-	1	Enquire
26	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
27	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free - IN STOCK	-	1	Enquire
28	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head - IN STOCK	-	3	Enquire
29	22AA762GP	ASSY BRKT LUGGAGE SUPPORT LWR RH	22AA762GP ASSY BRKT LUGGAGE SUPPORT LWR RH -	-	4	Enquire
30	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	1	Enquire
31	DD33130B14AB	Bracket, Carpet Support	DD33130B14AB Bracket, Carpet Support -	-	2	Enquire
32	GD33201A49AA	SHLD SPKR GRL PR LH	GD33201A49AA SHLD SPKR GRL PR LH 16MY on	-	1	Enquire
