Instrument and Console Panels - Centre Console Armrest, page1 of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

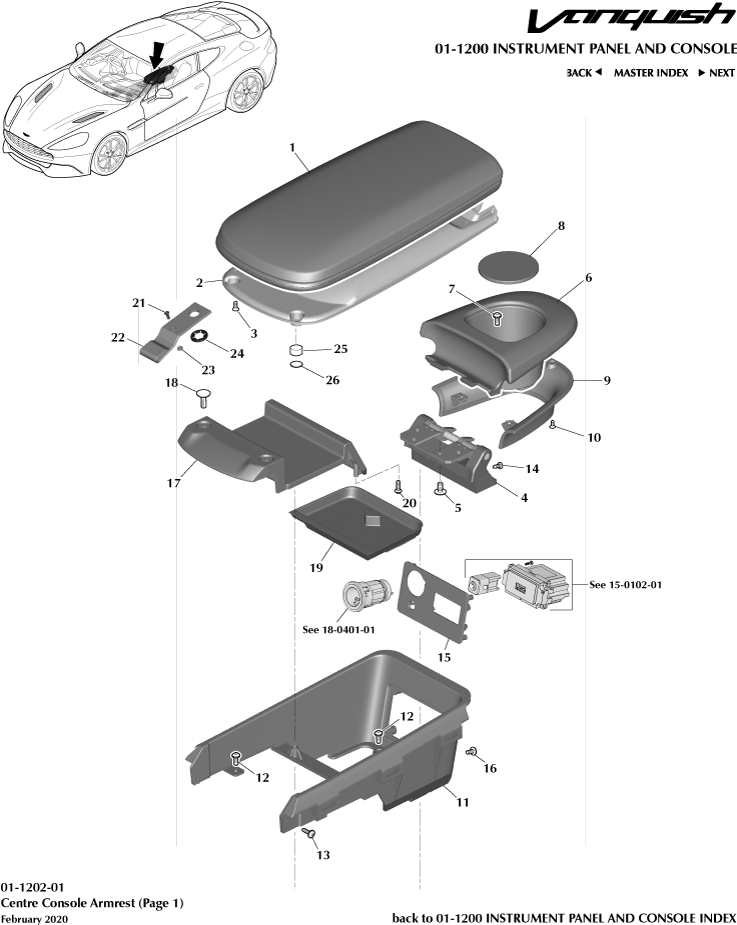

Aston Martin GT VANQUISH (2013-2018) - Instrument and Console Panels - Centre Console Armrest, page1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	13A4066CP	BRACKET - CANTRAIL TO DOOR HINGE - RH	13A4066CP BRACKET - CANTRAIL TO DOOR HINGE - RH RoW, 18.5MY on	-	1	Enquire
-	22AA675GP	ASSY BRKT RR FENDER ADJUSTMENT	22AA675GP ASSY BRKT RR FENDER ADJUSTMENT Federal	-	1	Enquire
-	13A5576CP	GASKET - SERVICE PANEL - DOOR LATCH - RH	13A5576CP GASKET - SERVICE PANEL - DOOR LATCH - RH Federal, 18.5MY on	-	1	Enquire
-	DD33045M19BA	Moulding, Lid Liner	DD33045M19BA Moulding, Lid Liner Federal	-	1	Enquire
-	13A5575CP	SERVICE PANEL - DOOR LATCH - RH	13A5575CP SERVICE PANEL - DOOR LATCH - RH 17MY on	-	1	Enquire
-	DD33045H74BAW	Stowage Console Assembly, Rear	DD33045H74BAW Stowage Console Assembly, Rear Federal	-	1	Enquire
-	CD33045K07AP1A01	BUMP STOP-12.7 x1.52	CD33045K07AP1A01 BUMP STOP-12.7 x1.52 -	-	2	Enquire
1	CD33045K07ADW	Armrest Stowage Assembly	CD33045K07ADW Armrest Stowage Assembly RoW	-	1	Enquire
2	CD33045M19AB	Moulding, Lid Liner	CD33045M19AB Moulding, Lid Liner RoW	-	1	Enquire
3	703725	SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL	703725 SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL -	-	4	Enquire
4	DD3347321AB	Hinge Assembly, Armrest	DD3347321AB Hinge Assembly, Armrest -	-	1	Enquire
5	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE -	-	4	Enquire
6	CD3367846ACW	RR CP/HLDR OTR PNL A	CD3367846ACW RR CP/HLDR OTR PNL A -	-	1	Enquire
7	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD -	-	2	Enquire
8	DD3329765AAW	Mat Assembly, Rear Cup Holder	DD3329765AAW Mat Assembly, Rear Cup Holder -	-	1	Enquire
9	DD33046B95ABW	Cup Holder, Rear Lower Assembly	DD33046B95ABW Cup Holder, Rear Lower Assembly -	-	1	Enquire
10	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK -	-	1	Enquire
11	DD33044H60AEW	RR STOW TRAY ASSY	DD33044H60AEW RR STOW TRAY ASSY Up to 17MY	-	1	Enquire
12	703170	SCREW 4x8 PAN T/H CHROME FREE	703170 SCREW 4x8 PAN T/H CHROME FREE -	-	4	Enquire
13	705464	Screw, 4.2 x 16, Washer Head, Self Tapping	705464 Screw, 4.2 x 16, Washer Head, Self Tapping -	-	2	Enquire
15	DD33296G02AB	AVX Plate, Centre Console, Rear	DD33296G02AB AVX Plate, Centre Console, Rear Part of item 11	-	1	Enquire
16	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP -	-	4	Enquire
17	DD33045H74ABW	Stowage Console Assembly, Rear	DD33045H74ABW Stowage Console Assembly, Rear RoW	-	1	Enquire
18	DD33487013AA	Cover Finisher	DD33487013AA Cover Finisher -	-	2	Enquire
19	CD33045M880AB	Mat, Armrest Stowage	CD33045M880AB Mat, Armrest Stowage -	-	1	Enquire
20	702289	SCREW M4x16 THREAD FORMING	702289 SCREW M4x16 THREAD FORMING -	-	2	Enquire
21	704779	Screw, M4 x 12, Flat Csk Skt Head	704779 Screw, M4 x 12, Flat Csk Skt Head -	-	1	Enquire
22	DD33044M10AA	Lat Console Armrest	DD33044M10AA Lat Console Armrest Federal	-	1	Enquire
23	W520400S	Nut, M4	W520400S Nut, M4 -	-	1	Enquire
24	DD33244487AA	Lock Washer	DD33244487AA Lock Washer -	-	1	Enquire
25	8G4323697AA	Magnet and Bumpstop Set	8G4323697AA Magnet and Bumpstop Set -	-	4	Enquire
