Interior Trim & Ornamentation - NVH Pads, Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - NVH Pads, Coupe

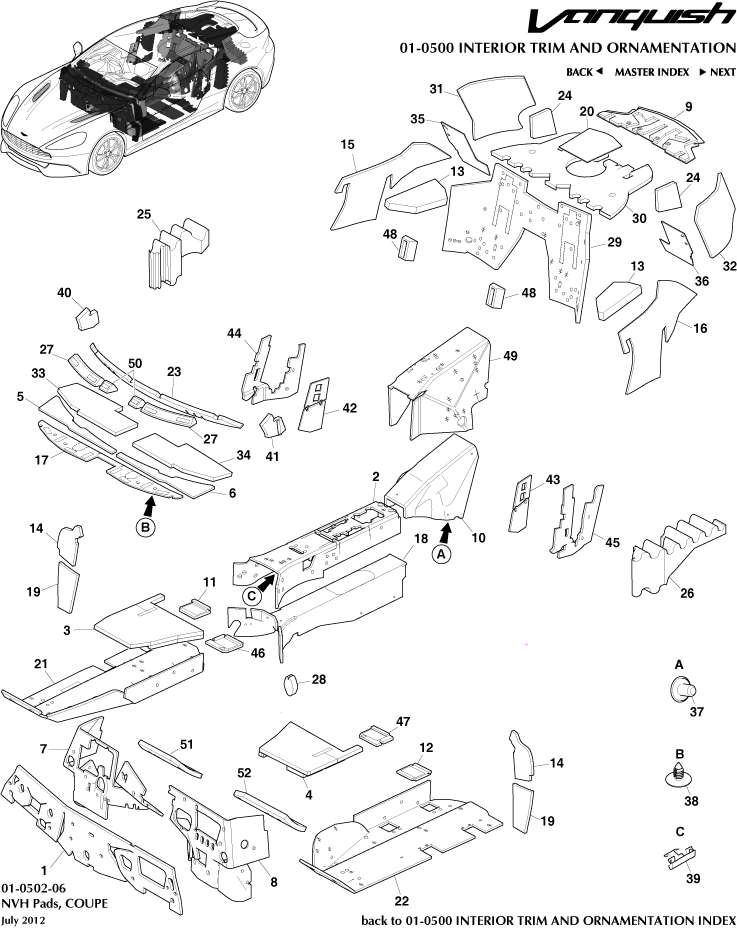

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33102B00AD	INS ENG HSG SND LHD	6G33102B00AD INS ENG HSG SND LHD LHD	-	1	Enquire
-	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD LHD	-	1	Enquire
-	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD LHD	-	1	Enquire
-	DD33002K05AC	DASH INR RH LHD	DD33002K05AC DASH INR RH LHD LHD	-	1	Enquire
-	22AB052GP	PNL FNDR FRT HEADLAMP MTG INR RH	22AB052GP PNL FNDR FRT HEADLAMP MTG INR RH LHD	-	1	Enquire
-	ED335416AC	NVH TNL RR INR	ED335416AC NVH TNL RR INR 14.5MY	-	1	Enquire
1	6G33102B00BD	INS ENG HSG SND RHD	6G33102B00BD INS ENG HSG SND RHD RHD	-	1	Enquire
2	DD3311446AD	INS FLR PAN GR SH LV	DD3311446AD INS FLR PAN GR SH LV -	-	1	Enquire
3	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD RHD	-	1	Enquire
4	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD RHD	-	1	Enquire
5	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH -	-	1	Enquire
6	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH -	-	1	Enquire
7	22AB256GP	ASSY BRKT LUGGAGE SUPPORT CTR LH	22AB256GP ASSY BRKT LUGGAGE SUPPORT CTR LH RHD	-	1	Enquire
8	22AB262GP	ASSY BRKT LUGGAGE SUPPORT CTR RH	22AB262GP ASSY BRKT LUGGAGE SUPPORT CTR RH RHD	-	1	Enquire
9	DD3342775AA	INS L/L UPPER	DD3342775AA INS L/L UPPER -	-	1	Enquire
10	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover -	-	1	Enquire
11	6G33114B32AB	Insulation Assembly, Front Floor Pan, RH	6G33114B32AB Insulation Assembly, Front Floor Pan, RH -	-	1	Enquire
12	6G33114B33AB	Insulation Assembly, Front Floor Pan, LH	6G33114B33AB Insulation Assembly, Front Floor Pan, LH -	-	1	Enquire
13	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	4G43F310A26AA Insulation, Sound, Quarter I/S Panel -	-	2	Enquire
14	DD3328112AA	NVH Foam Pad, Fender Upper	DD3328112AA NVH Foam Pad, Fender Upper -	-	2	Enquire
15	DD3327746AB	Sound Insulation, Rear Quarter, RH	DD3327746AB Sound Insulation, Rear Quarter, RH -	-	1	Enquire
16	DD3327747AB	Sound Insulation, Rear Quarter, LH	DD3327747AB Sound Insulation, Rear Quarter, LH -	-	1	Enquire
17	DD3300152AB	Insulation, Plenum, Engine Bay Side	DD3300152AB Insulation, Plenum, Engine Bay Side -	-	1	Enquire
18	4G43114B26AH	Insulation, Tunnel	4G43114B26AH Insulation, Tunnel -	-	1	Enquire
19	DD3328110AB	NVH Foam Pad Assembly, Fender Lower	DD3328110AB NVH Foam Pad Assembly, Fender Lower -	-	2	Enquire
20	DD33403D42AA	NVH Centre, Parcel Shelf	DD33403D42AA NVH Centre, Parcel Shelf -	-	1	Enquire
21	DD3354751AD	BAFFLE FLOOR RH	DD3354751AD BAFFLE FLOOR RH -	-	1	Enquire
22	DD3354752AB	Baffle, Floor, LH	DD3354752AB Baffle, Floor, LH -	-	1	Enquire
23	13A5840CP	COVER - LUGGAGE BIN TOE	13A5840CP COVER - LUGGAGE BIN TOE -	-	1	Enquire
24	DD33111A30AA	NVH, Aluminium Panel	DD33111A30AA NVH, Aluminium Panel -	-	2	Enquire
25	DD33C27746AA	Sound Insulation Panel, Rear Quarter, RH	DD33C27746AA Sound Insulation Panel, Rear Quarter, RH -	-	1	Enquire
26	DD33C27747AA	Sound Insulation Panel, Rear Quarter, LH	DD33C27747AA Sound Insulation Panel, Rear Quarter, LH -	-	1	Enquire
27	22AA048GP	PNL FNDR FRT HEADLAMP MTG RH	22AA048GP PNL FNDR FRT HEADLAMP MTG RH 2x Only When Pedestrian Impact System Fitted	-	3	Enquire
28	8G4304564AA	NVH, Autobox Clutch Pedal	8G4304564AA NVH, Autobox Clutch Pedal -	-	1	Enquire
29	DD33C311K66AE	INS RR PNL UPR SND	DD33C311K66AE INS RR PNL UPR SND -	-	1	Enquire
30	DD33C56158AA	INS PACKAGE TRIM	DD33C56158AA INS PACKAGE TRIM 2+2 Seating	-	1	Enquire
31	DD3345636AA	NVH, Sidewall, RH	DD3345636AA NVH, Sidewall, RH -	-	1	Enquire
32	DD3345637AA	NVH, Sidewall, LH	DD3345637AA NVH, Sidewall, LH -	-	1	Enquire
33	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH -	-	1	Enquire
34	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH -	-	1	Enquire
35	22AA044GP	PNL FNDR FRT HEADLAMP MTG LH	22AA044GP PNL FNDR FRT HEADLAMP MTG LH -	-	1	Enquire
36	22AA030GP	ASSY BRKT FRT FNDR MTG FRT RH	22AA030GP ASSY BRKT FRT FNDR MTG FRT RH -	-	1	Enquire
37	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic -	-	A/R	Enquire
38	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree -	-	A/R	Enquire
39	6G3334983AB	Clip, Edge, NVH Retainer	6G3334983AB Clip, Edge, NVH Retainer -	-	3	Enquire
40	00RB250	CLIP - BOWDEN CABLE	00RB250 CLIP - BOWDEN CABLE -	-	1	Enquire
41	22AA688GP	ASSY BRACKET SAB TO REAR FENDER RH	22AA688GP ASSY BRACKET SAB TO REAR FENDER RH -	-	1	Enquire
42	00RB173	STUD - CLIP - EXPANDING	00RB173 STUD - CLIP - EXPANDING -	-	1	Enquire
43	CG43D1161AC	Insulation, Rear Quarter Trim, LH	CG43D1161AC Insulation, Rear Quarter Trim, LH -	-	1	Enquire
44	DD33L27746AB	NVH, Rear Quarter Panel, Cabin, RH	DD33L27746AB NVH, Rear Quarter Panel, Cabin, RH -	-	1	Enquire
45	DD33L27747AB	NVH, Rear Quarter Panel, Cabin, LH	DD33L27747AB NVH, Rear Quarter Panel, Cabin, LH -	-	1	Enquire
46	6G33114A42AB	Insulation Assembly, Front Floor Pan, RH	6G33114A42AB Insulation Assembly, Front Floor Pan, RH -	-	1	Enquire
47	6G33114A43AB	Insulation Assembly, Front Floor Pan, LH	6G33114A43AB Insulation Assembly, Front Floor Pan, LH -	-	1	Enquire
48	13A6476CP	BODYSIDE EXTENSION - REAR - LOWER - LH	13A6476CP BODYSIDE EXTENSION - REAR - LOWER - LH 2+2 Seating	-	2	Enquire
49	DD335416AB	Cover, Rear Tunnel	DD335416AB Cover, Rear Tunnel -	-	1	Enquire
50	RY6315B484BA	REAR BUMPER HARNESS	RY6315B484BA REAR BUMPER HARNESS When Pedestrian Impact System Fitted	-	2	Enquire
51	AD4302282AB	FRT BLKHD LWR INS RH	AD4302282AB FRT BLKHD LWR INS RH 15MY	-	1	Enquire
52	13A3582CP	BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - RH	13A3582CP BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - RH 15MY	-	1	Enquire
