Body Structure - Body Dash & Cowl, Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Body Structure - Body Dash & Cowl, Coupe

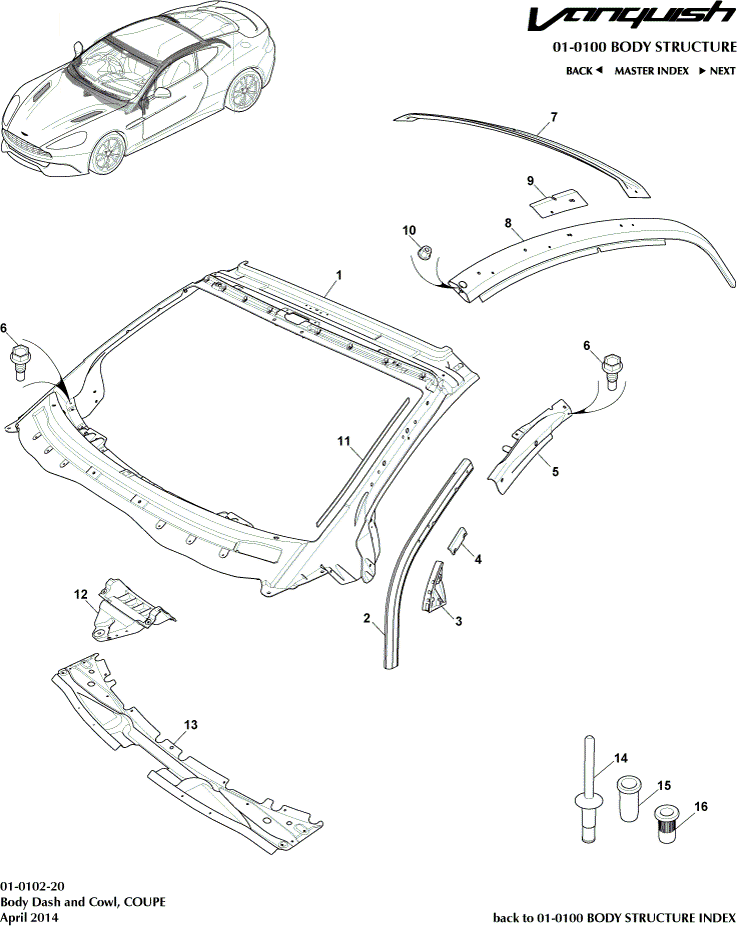

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG43C03014AC	Frame Assembly, Windshield	EG43C03014AC Frame Assembly, Windshield From 14MY,Structural. Cat A Only	-	1	Enquire
-	GOED33F02527AA	Reinforcement, Front Body Pillar, LH	GOED33F02527AA Reinforcement, Front Body Pillar, LH From 14.5MY,Structural. Cat A Only	-	1	Enquire
-	GOCD33F02526AB	Reinforcement, Front Body Pillar, RH	GOCD33F02526AB Reinforcement, Front Body Pillar, RH Up To 14.5MY,Structural. Cat A Only	-	1	Enquire
-	GOED33F02526AA	Reinforcement, Front Body Pillar, LH	GOED33F02526AA Reinforcement, Front Body Pillar, LH From 14.5MY,Structural. Cat A Only	-	1	Enquire
-	22AB236GP	SERVICE HATCH OIL FILTER FOAM SEAL	22AB236GP SERVICE HATCH OIL FILTER FOAM SEAL Structural. Cat A Only	-	1	Enquire
-	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK From 15MY,Structural. Cat A Only	-	1	Enquire
-	DG43C513A07BA	REINF RF SD RL RH	DG43C513A07BA REINF RF SD RL RH Structural. Cat A Only	-	1	Enquire
-	GOCD33C513A10AB	Cantrail to Roof Reinforcement, RH	GOCD33C513A10AB Cantrail to Roof Reinforcement, RH Structural. Cat A Only	-	1	Enquire
1	DG43C03014AF	Frame Assembly, Windshield	DG43C03014AF Frame Assembly, Windshield Up to 14MY,Structural. Cat A Only	-	1	Enquire
2	GOCD33F02527AB	Reinforcement, Front Body Pillar, LH	GOCD33F02527AB Reinforcement, Front Body Pillar, LH Up To 14.5MY,Structural. Cat A Only	-	1	Enquire
3	22AA126GP	SERVICE HATCH FOAM SEAL FRT	22AA126GP SERVICE HATCH FOAM SEAL FRT Structural. Cat A Only	-	1	Enquire
4	GOFD3302526AA	BDY PLR FRT REINF BL	GOFD3302526AA BDY PLR FRT REINF BL Structural. Cat A Only	-	2	Enquire
5	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 From 15MY,Structural. Cat A Only	-	1	Enquire
6	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural. Cat A Only	-	4	Enquire
7	GODG43C42220BA	Frame, Back Window, Upper	GODG43C42220BA Frame, Back Window, Upper Structural. Cat A Only	-	1	Enquire
8	DG43C513A08BA	REINF RF SD RL LH	DG43C513A08BA REINF RF SD RL LH Structural. Cat A Only	-	1	Enquire
9	GOCD33C513A11AB	Cantrail to Roof Reinforcement, LH	GOCD33C513A11AB Cantrail to Roof Reinforcement, LH Structural. Cat A Only	-	1	Enquire
10	22AA512GP	SERVICE HATCH RR MACHINED	22AA512GP SERVICE HATCH RR MACHINED Structural. Cat A Only	-	2	Enquire
11	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE Structural. Cat A Only	-	1	Enquire
12	GODD4371023AE	Cowl, Reinforcement Casting	GODD4371023AE Cowl, Reinforcement Casting Structural. Cat A Only	-	1	Enquire
13	GODG43F292650AC	Plenum, Lower	GODG43F292650AC Plenum, Lower Structural. Cat A Only	-	1	Enquire
15	6G3351081AA	RIVNUT M6	6G3351081AA RIVNUT M6 Structural. Cat A Only	-	A/R	Enquire
16	6G3354428AA	RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni	6G3354428AA RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni Structural. Cat A Only	-	A/R	Enquire
