Body Structure - Underbody, Volante of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Body Structure - Underbody, Volante

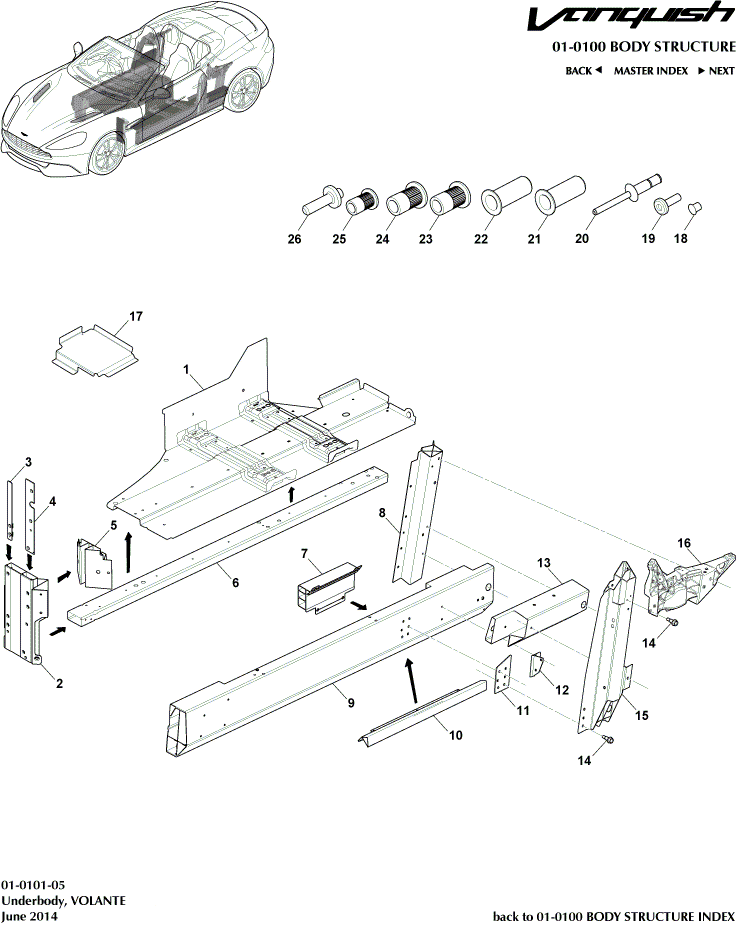

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH Vin Stamp Required.Structural Cat. A Only.	-	1	Enquire
-	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A Only	-	1	Enquire
-	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A Only	-	1	Enquire
-	DG43L24314AA	Pillar, Centre Body, Outer Rear, RH	DG43L24314AA Pillar, Centre Body, Outer Rear, RH Structural Cat. A Only	-	1	Enquire
-	22AA022MP	ASSY - MSO - DIFFUSER - VCF	22AA022MP ASSY - MSO - DIFFUSER - VCF Structural Cat. A Only.From 15MY To VIN K02469	-	1	Enquire
-	00RC034	WASHER - PLAIN - M12X28X2.7	00RC034 WASHER - PLAIN - M12X28X2.7 Structural Cat. A Only.From VIN K02470	-	1	Enquire
-	DG43L10116AD	Member, Floor Side, RH	DG43L10116AD Member, Floor Side, RH Structural Cat. A Only.Up To 15MY	-	1	Enquire
-	22AA571GP	BRKT DIFFUSER CENTRE LH	22AA571GP BRKT DIFFUSER CENTRE LH Structural Cat. A Only.From 15MY To VIN K02469	-	1	Enquire
-	00RC035	WASHER - PLAIN - M10X28X2.5	00RC035 WASHER - PLAIN - M10X28X2.5 Structural Cat. A Only.From VIN K02470	-	1	Enquire
-	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Structural Cat. A Only	-	1	Enquire
-	ED33101D06AA	Extrusion Member, Rear Floor Side Lower, RH	ED33101D06AA Extrusion Member, Rear Floor Side Lower, RH Structural Cat. A Only	-	1	Enquire
-	GD33L24313AA	PLR CTR BODY LH	GD33L24313AA PLR CTR BODY LH Structural Cat. A Only.From 15MY	-	1	Enquire
-	DG43L24312AC	Pillar, Centre Body, RH	DG43L24312AC Pillar, Centre Body, RH Structural Cat. A Only.Up To 15MY	-	1	Enquire
-	22AA574GP	BRKT DIFFUSER SIDE RH	22AA574GP BRKT DIFFUSER SIDE RH Structural Cat. A Only.From 15MY	-	1	Enquire
-	ED33L243A61AE	REINF CTR BDY UPR	ED33L243A61AE REINF CTR BDY UPR From 15MY,Structural Cat. A Only	-	1	Enquire
-	00RA242	STUD - M8X1.25X35	00RA242 STUD - M8X1.25X35 Up To 15MY,Structural Cat. A Only	-	1	Enquire
-	ED33L243A60AE	REINF CTR BDY UPR	ED33L243A60AE REINF CTR BDY UPR From 15MY,Structural Cat. A Only	-	1	Enquire
1	4G431610880	PANEL FLOOR LH	4G431610880 PANEL FLOOR LH Structural Cat. A Only	-	1	Enquire
2	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A Only	-	1	Enquire
3	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A Only	-	2	Enquire
4	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A Only	-	1	Enquire
5	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural Cat. A Only	-	2	Enquire
7	GOFD33270A50AC	EXT SIDE IMPT PSHR B	GOFD33270A50AC EXT SIDE IMPT PSHR B From 15MY	-	2	Enquire
8	DG43L24315AA	Pillar, Centre Body, Outer Rear, LH	DG43L24315AA Pillar, Centre Body, Outer Rear, LH Structural Cat. A Only	-	1	Enquire
9	ED33L10117AA	Member, Floor Side, LH	ED33L10117AA Member, Floor Side, LH Structural Cat. A Only.Up To 15MY	-	1	Enquire
10	22AC193GP	GUIDE - VANE FRONT - RH INT	22AC193GP GUIDE - VANE FRONT - RH INT From 15MY	-	2	Enquire
11	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Structural Cat. A Only	-	1	Enquire
12	00RA568	BOLT - M6X20 - HEX	00RA568 BOLT - M6X20 - HEX Structural Cat. A Only	-	1	Enquire
13	ED33101D07AA	Extrusion Member, Rear Floor Side Lower, LH	ED33101D07AA Extrusion Member, Rear Floor Side Lower, LH Structural Cat. A Only	-	1	Enquire
15	DG43L24313AC	Pillar, Centre Body, LH	DG43L24313AC Pillar, Centre Body, LH Structural Cat. A Only.Up To 15MY	-	1	Enquire
16	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Up To 15MY,Structural Cat. A Only	-	1	Enquire
19	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	A/R	Enquire
20	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	A/R	Enquire
21	6G3351025AA	RIVNUT M5	6G3351025AA RIVNUT M5 -	-	A/R	Enquire
22	6G3351081AA	RIVNUT M6	6G3351081AA RIVNUT M6 -	-	A/R	Enquire
23	6G3356694AA	RIVNUT M8	6G3356694AA RIVNUT M8 -	-	A/R	Enquire
24	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni -	-	A/R	Enquire
25	6G3354428AA	RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni	6G3354428AA RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni -	-	A/R	Enquire
26	6G3368855AB	Self Piercing Stud, M6 x 19	6G3368855AB Self Piercing Stud, M6 x 19 -	-	A/R	Enquire
