Aston Martin GT VANQUISH (2013-2018) - Body Structure - Ancillary Parts, Volante, page 1

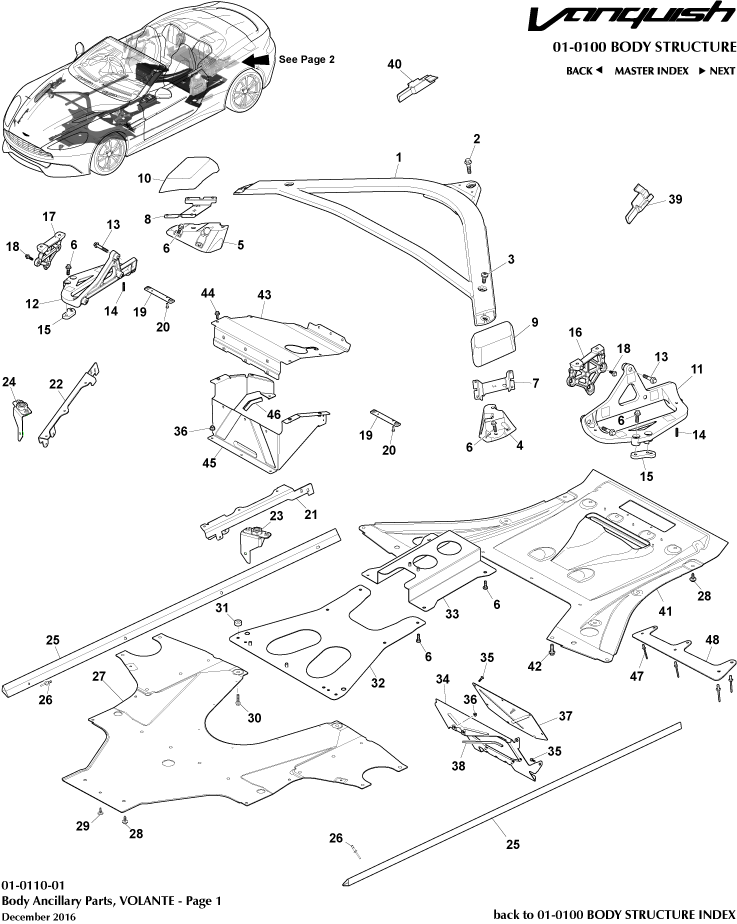

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD335341AA	BRACKET ECU	FD335341AA BRACKET ECU From 15MY.	-	1	Enquire
-	FD335340AA	BRACKET ECU	FD335340AA BRACKET ECU From 15MY	-	1	Enquire
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD LHD	-	1	Enquire
-	FD33L17C857AB	SHIELD-RR BMPR OPG	FD33L17C857AB SHIELD-RR BMPR OPG From 15MY, Also Order New Flip, Item 48	-	1	Enquire
1	DD43108A75DA	Brace Assembly, Front Cross	DD43108A75DA Brace Assembly, Front Cross -	-	1	Enquire
2	DG4300512AA	Screw (Taptite), M10 x 40 Hex Flange Head IN STOCK	DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head - IN STOCK	-	1	Enquire
3	702209	Bolt, M10 x 25, Torque Drive IN STOCK	702209 Bolt, M10 x 25, Torque Drive - IN STOCK	-	4	Enquire
4	GOED33108A87AA	Bracket, Front Cross Brace, LH	GOED33108A87AA Bracket, Front Cross Brace, LH -	-	1	Enquire
5	GOED33108A86AA	BRKT FRT CS BRA RH	GOED33108A86AA BRKT FRT CS BRA RH -	-	1	Enquire
6	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder - IN STOCK	-	12	Enquire
7	ED3318A009AB	HEX BLK BRK LH	ED3318A009AB HEX BLK BRK LH -	-	1	Enquire
8	ED3318A008AB	HEX BLK BRK RH	ED3318A008AB HEX BLK BRK RH -	-	1	Enquire
9	ED3310875AA	Hexcell Block Assy, LH	ED3310875AA Hexcell Block Assy, LH -	-	1	Enquire
10	ED3310874AA	Hexcell Block Assy, RH	ED3310874AA Hexcell Block Assy, RH -	-	1	Enquire
11	DG435341AA	Bracket, ECU Mounting, LH	DG435341AA Bracket, ECU Mounting, LH Up To 15MY	-	1	Enquire
12	DG435340AA	Bracket, ECU Mounting, RH	DG435340AA Bracket, ECU Mounting, RH Up To 15MY	-	1	Enquire
13	703108	BOLT M8x45 HEX FLG 8	703108 BOLT M8x45 HEX FLG 8 -	-	6	Enquire
15	DG43F27A06AA	Plate, Mounting	DG43F27A06AA Plate, Mounting -	-	2	Enquire
16	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	DG4316A682AA Reinforcement, Hood Hinge on Body, LH -	-	1	Enquire
17	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	DG4316A681AA Reinforcement, Hood Hinge on Body, RH -	-	1	Enquire
19	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
20	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	4	Enquire
21	DG43043B20AA	Tube, Passenger Air Bag Initiator, LH	DG43043B20AA Tube, Passenger Air Bag Initiator, LH -	-	1	Enquire
22	DG43043B19AA	Tube, Passenger Air Bag Initiator, RH	DG43043B19AA Tube, Passenger Air Bag Initiator, RH -	-	1	Enquire
23	DG4313069AB	PNL HD/LP MNTG LH	DG4313069AB PNL HD/LP MNTG LH -	-	1	Enquire
24	DG4313068AB	PNL HD/LP MTNG RH	DG4313068AB PNL HD/LP MTNG RH -	-	1	Enquire
25	GOCD3320416AA	Reinforcement, Door to Sill	GOCD3320416AA Reinforcement, Door to Sill -	-	2	Enquire
26	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	8	Enquire
27	9G4311262BA	Reinforcement Assembly, Floor Pan Front	9G4311262BA Reinforcement Assembly, Floor Pan Front -	-	1	Enquire
28	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head IN STOCK	7G33108256AA Screw, M8 x 21mm, Hex Flange Head - IN STOCK	-	30	Enquire
29	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD -	-	3	Enquire
30	700229	Bolt, M8 x 35, Hex Flange Head	700229 Bolt, M8 x 35, Hex Flange Head -	-	2	Enquire
31	GODG431660AA	Spacer, Tunnel Reinforcement, Front	GODG431660AA Spacer, Tunnel Reinforcement, Front -	-	2	Enquire
32	GODG43111K36AC	Tunnel Reinforcement, Front	GODG43111K36AC Tunnel Reinforcement, Front -	-	1	Enquire
33	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre -	-	1	Enquire
34	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD RHD	-	1	Enquire
36	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE - IN STOCK	-	5	Enquire
38	DAC402716AA	Edge Protection Strip, 170mm	DAC402716AA Edge Protection Strip, 170mm -	-	1	Enquire
39	22AA651GP	UPPER TRIM TAILGATE MACHINED	22AA651GP UPPER TRIM TAILGATE MACHINED -	-	1	Enquire
40	22AB326GP	TAILGATE COOLING AIR DUCT RH	22AB326GP TAILGATE COOLING AIR DUCT RH -	-	1	Enquire
41	AD33L17C857BB	SHIELD-RR BMPR OPG	AD33L17C857BB SHIELD-RR BMPR OPG Up to 15MY, Includes Flip, item 48.	-	1	Enquire
42	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) IN STOCK	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10 IN STOCK	-	2	Enquire
43	ED3310N660AA	Panel, Battery Cover	ED3310N660AA Panel, Battery Cover -	-	1	Enquire
45	ED3367518AA	Panel, Rear Seat Heel Board, RH	ED3367518AA Panel, Rear Seat Heel Board, RH -	-	1	Enquire
46	4G4318K261AB	STP-DCT PROT	4G4318K261AB STP-DCT PROT -	-	1	Enquire
47	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET From 15MY	-	6	Enquire
48	HD3344210AA	SPLR ASY RR	HD3344210AA SPLR ASY RR From 15MY	-	1	Enquire
