Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Main Floor Trim, RHD

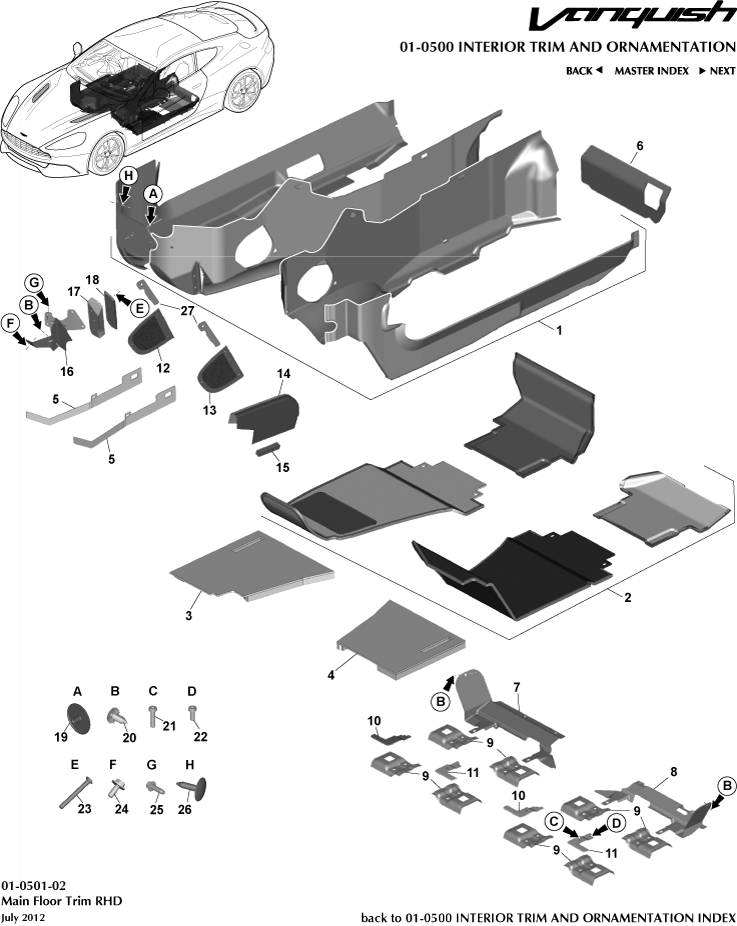

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD33281B10AEW	KIT ASSY SD CRPT RHD	CD33281B10AEW KIT ASSY SD CRPT RHD Heavyweight, From 15MY	-	1	Enquire
-	CD33281B10BCW	Kit Assy, Side Carpet	CD33281B10BCW Kit Assy, Side Carpet Lightweight Up To 15MY	-	1	Enquire
-	FD33281B10ABW	KIT ASSY SD CRPT RHD	FD33281B10ABW KIT ASSY SD CRPT RHD Lightweight From 15MY	-	1	Enquire
-	CD338310015	Kit, Floor Carpets, RHD	CD338310015 Kit, Floor Carpets, RHD Lightweight	-	1	Enquire
-	CD3310K973ADW	Heel Board, Rear, LH	CD3310K973ADW Heel Board, Rear, LH Volante	-	1	Enquire
-	FD33100A90AA	RH RR FLR SPRT PNL	FD33100A90AA RH RR FLR SPRT PNL From 15MY	-	1	Enquire
-	FD33100A91AA	LH RR SUPT PANEL	FD33100A91AA LH RR SUPT PANEL From 15MY	-	1	Enquire
-	DD33311A76BA	Speaker Grille, Footwell, RH, Iridium	DD33311A76BA Speaker Grille, Footwell, RH, Iridium Includes Fixings	-	1	Enquire
-	DD33311A77BA	Speaker Grille, Footwell, LH, Iridium	DD33311A77BA Speaker Grille, Footwell, LH, Iridium Includes Fixings	-	1	Enquire
-	CD3312021CA	Cover Plate, Foot Rest, RH	CD3312021CA Cover Plate, Foot Rest, RH Black Pedals	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	A/R	Enquire
1	CD33281B10ADW	KIT ASSY SD CRPT RHD	CD33281B10ADW KIT ASSY SD CRPT RHD Heavyweight, Up To 15MY	-	1	Enquire
2	CD338310014	Kit, Floor Carpets, RHD	CD338310014 Kit, Floor Carpets, RHD Heavyweight	-	1	Enquire
3	DD33130B52AB	Support, Floor Carpet, RH	DD33130B52AB Support, Floor Carpet, RH -	-	1	Enquire
4	DD33130B53AB	Support, Floor Carpet, LH	DD33130B53AB Support, Floor Carpet, LH -	-	1	Enquire
5	DD33130W48AB	Backing Plate, ABS	DD33130W48AB Backing Plate, ABS -	-	2	Enquire
6	CD3310K973ACW	Heel Board, Rear, LH	CD3310K973ACW Heel Board, Rear, LH Coupe	-	1	Enquire
7	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH Up To 15MY	-	1	Enquire
8	8G43100A91AC	Support Panel, Rear Floor, LH	8G43100A91AC Support Panel, Rear Floor, LH Up To 15MY	-	1	Enquire
9	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	8	Enquire
10	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	2	Enquire
11	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	2	Enquire
12	DD33311A76AA	Speaker Grille, Footwell, RH, Black	DD33311A76AA Speaker Grille, Footwell, RH, Black Includes Fixings	-	1	Enquire
13	DD33311A77AA	Speaker Grille, Footwell, LH, Black	DD33311A77AA Speaker Grille, Footwell, LH, Black Includes Fixings	-	1	Enquire
14	4G43831236ABW	HANDBRAKE GAITER ASSY RHD	4G43831236ABW HANDBRAKE GAITER ASSY RHD -	-	1	Enquire
15	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
16	CD333N234AA	Bracket, Foot Rest	CD333N234AA Bracket, Foot Rest -	-	1	Enquire
17	CD33044J08AA	Energy Absorber, Foot Rest	CD33044J08AA Energy Absorber, Foot Rest -	-	1	Enquire
18	9G3312021AA	Cover Plate, Foot Rest, RH	9G3312021AA Cover Plate, Foot Rest, RH Silver Pedals	-	1	Enquire
19	697564	Retainer, Push On	697564 Retainer, Push On -	-	3	Enquire
21	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head -	-	4	Enquire
22	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
23	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
24	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
25	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	4	Enquire
26	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	2	Enquire
27	DD33130B14AB	Bracket, Carpet Support	DD33130B14AB Bracket, Carpet Support -	-	2	Enquire
