Front End Structure - Front Wings

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Front End Structure - Front Wings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

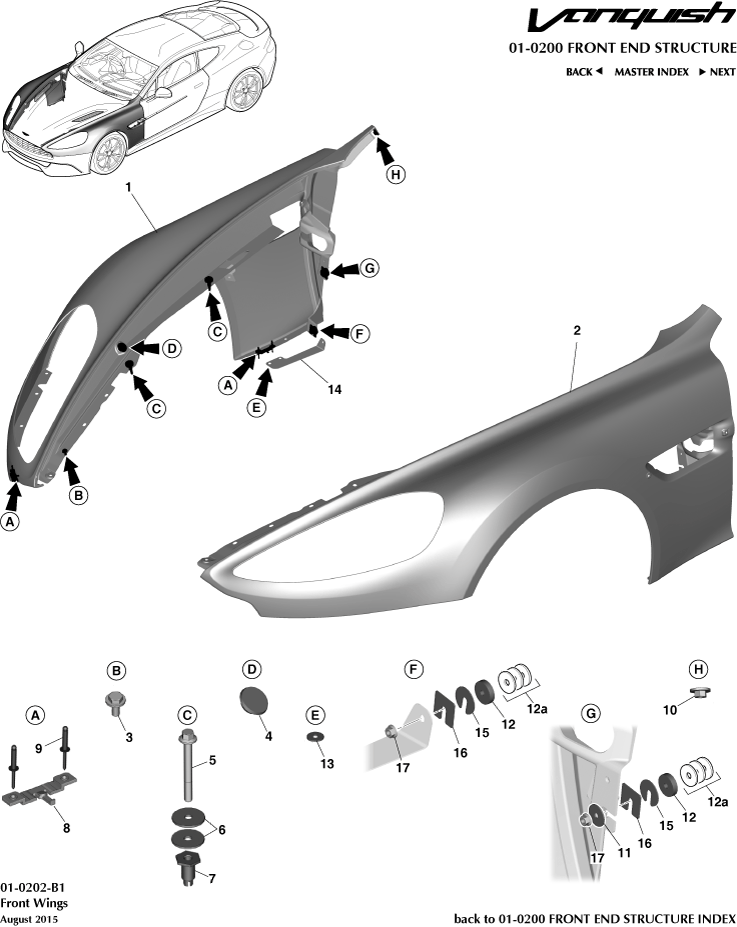

Front End Structure - Front Wings of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- W500302S443
Black Bolt M6x40
For Body Repair 		- 6 Enquire
- 6G3343422AA
Black Washer 8.6x30x3.3mm
For Body Repair 		- 6 Enquire
- CD33A9N649AB
Stiffener, Fender Profile, LH
- 		- 1 Enquire
1 CD3316006AC
PNL ASY FRT FNDR RH
- 		- 1 Enquire
2 CD3316007AC
PNL ASY FRT FNDR LH
- 		- 1 Enquire
3 703151
Screw M6x16 Washer Hex HD Chrome Free
- 		- 2 Enquire
4 4G43301347AA
BLACK TPR BODY PLUG 20mm
- 		- 2 Enquire
5 703198
Bolt, M6 x 40, Chrome Free
- 		- 6 Enquire
6 CG43106258AA
Washer 6.0 I/D 24 O/D X 2.5 THK
- 		- 12 Enquire
8 4G43023A50BA
EXTERIOR FENDER CLIP
- 		- 4 Enquire
9 701580PK
Rivet Dome Head (Pack of 20)
Pack of 20 		- 8 Enquire
10 702944
Nut, M6, Hex Flanged Head
- 		- 2 Enquire
11 697810PK
WSHR-M6x25 SSBLK(10)
Pack of 10 		- 2 Enquire
12 CD335435AA
FENDER SPACER-6 mm
Up to 16MY 		- 4 Enquire
12a 4G4316C694ABPK3
WASHER-NYLON(PACK 3)
From 16MY 		- 4 Enquire
13 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 2 Enquire
14 CD33A9N648AB
Stiffener, Fender Profile, RH
- 		- 1 Enquire
15 CD333N186AA
Spacer, Fender, 1mm
- 		- 4 Enquire
16 CD333N187AA
Spacer, Fender, 1.5mm
- 		- 4 Enquire
17 702944
Nut, M6, Hex Flanged Head
- 		- 4 Enquire
