Wipers & Washers - Washer Bottle

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Wipers & Washers - Washer Bottle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

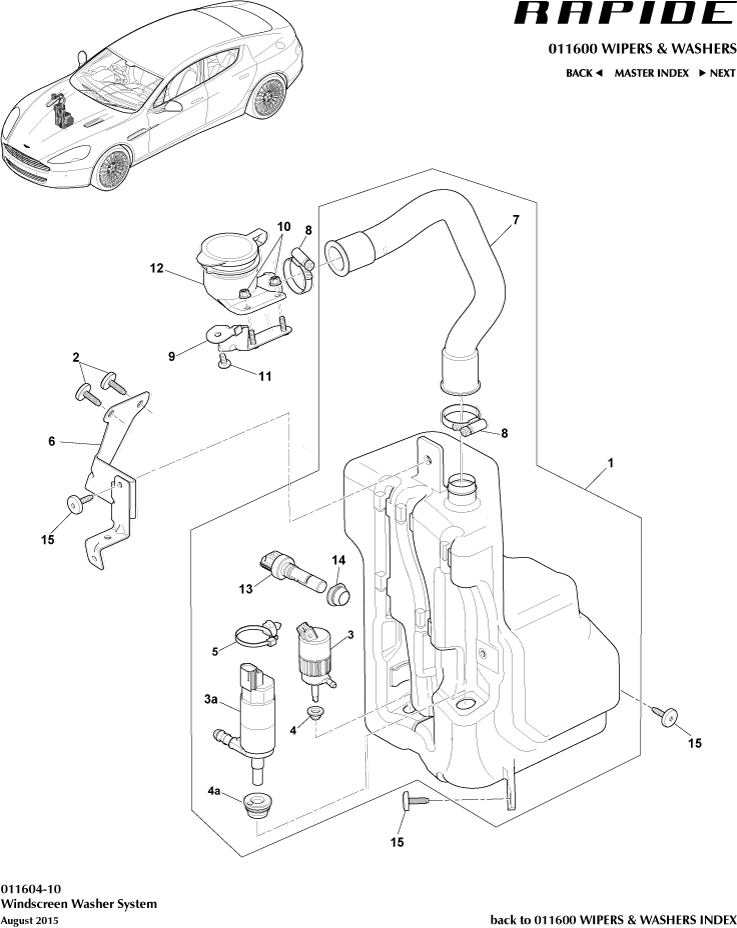

Wipers & Washers - Washer Bottle of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G3317B613APIA001
WASH RESERVOIR ONLY
With headlamp wash
ARRIVING SOON 		- 1 Enquire
- DG4317C625AD
Bracket, Windshield Washer Filler Neck
From VIN F03109, Rapide S 		- 1 Enquire
1 6G3317B613BA
RESERVOIR & MOTOR ASSY WITH HEADLAMP WASH
No longer available. Please use individual parts listed 		- 1 Enquire
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 6 Enquire
3 4G430110304
Motor & Pump, Windscreen Washer
- 		- 1 Enquire
3a 4G430110305
Pump Headlight Wash
- 		- 1 Enquire
4 1X4317673AA
Grommet, Sealing Windscreen Wash Pump
- 		- 1 Enquire
4a 1X4313K188AA
Grommet, Sealing Headlamp Pump
- 		- 1 Enquire
5 6G333710501
STRAP & CLIP 5.45 x 6 x 0.9
Headlamp wash pump 		- 1 Enquire
6 4G4317614AB
Bracket Assembly, Windshield Washer Reservoir Mounting
- 		- 1 Enquire
7 4G4313K175BA
Washer Reservoir Filler Neck Assembly
- 		- 1 Enquire
8 701562
Clamp, Worm Drive 30-45mm
- 		- 2 Enquire
9 4G4317C625AC
Bracket, Filler Neck
Up To VIN F03108 		- 1 Enquire
10 702295
Nut, M5, Hex Flange Head
- 		- 2 Enquire
11 703266
Screw M6 x 10 Pan Head Torx
- 		- 1 Enquire
12 6G3313K175AA
ASY FLLR NECK&BLUE C
NOT part of item 1 		- 1 Enquire
13 4G433710236
Water Low Level Sensor
Includes item 14 		- 1 Enquire
14 4G433710237
Seal, Low Level Sensor
No longer available 		- N/A Enquire
