Interior Trim & Ornamentation - Main Floor Trim, LHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Main Floor Trim, LHD

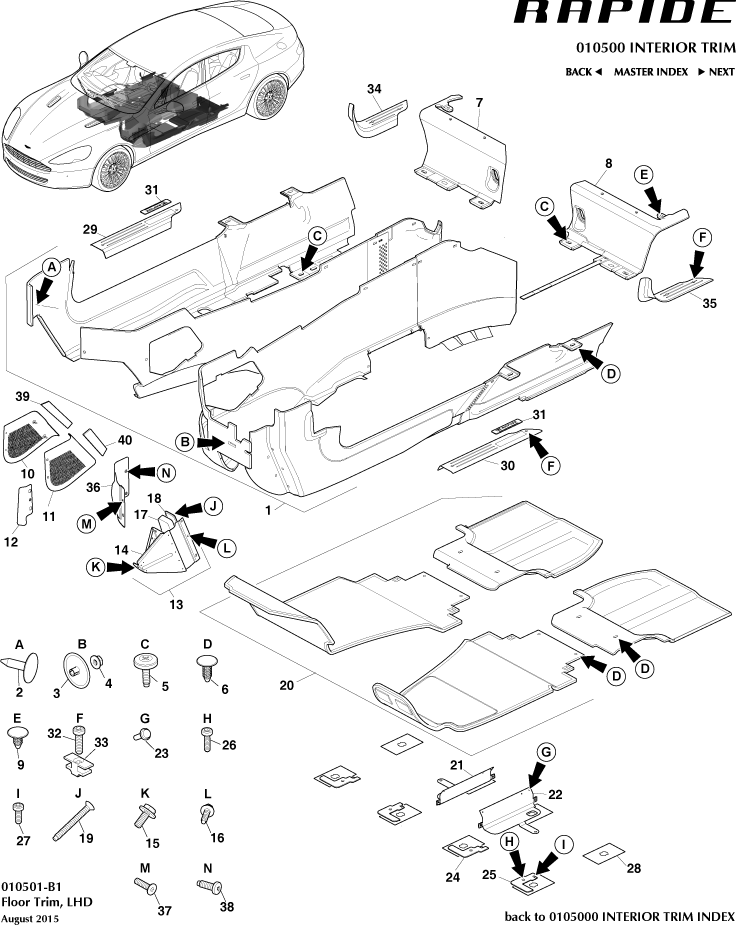

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD43281B11ABW	KIT ASSY SD CRPT LHD	FD43281B11ABW KIT ASSY SD CRPT LHD From 15MY	-	1	Enquire
-	FD43281B11GA	KIT ASSY SD CRPT LHD	FD43281B11GA KIT ASSY SD CRPT LHD Black. From 17.5MY	-	1	Enquire
-	61278889719	Cell supervision circuit	61278889719 Cell supervision circuit Black. From 17.5MY	-	1	Enquire
-	SY9Y2L202PA	DISTRIBUTOR SOL 1	SY9Y2L202PA DISTRIBUTOR SOL 1 Black. From 17.5MY	-	1	Enquire
-	GD43311A76CC	FOOTWELL SPKR GRL RH	GD43311A76CC FOOTWELL SPKR GRL RH with fixings, ASK	-	1	Enquire
-	HD43311A76CA	FOOTWELL SPKR GRL RH	HD43311A76CA FOOTWELL SPKR GRL RH with fixings, Black. 17MY on	-	1	Enquire
-	GD43311A77CC	FOOTWELL SPKR GRL LH	GD43311A77CC FOOTWELL SPKR GRL LH with fixings, ASK	-	1	Enquire
-	HD43311A77CA	FOOTWELL SPKR GRL LH	HD43311A77CA FOOTWELL SPKR GRL LH with fixings, Black. 17MY on	-	1	Enquire
-	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest Rapide S Option	-	1	Enquire
-	AD43281B13GA	KIT ASY FLR CRPT LHD	AD43281B13GA KIT ASY FLR CRPT LHD Black. From 17.5MY	-	1	Enquire
-	SY9Y14B326AB	DCDC GND STRP	SY9Y14B326AB DCDC GND STRP AMR	-	1	Enquire
-	SY9Y10174AA	FRNT WNG MAIN PLNE	SY9Y10174AA FRNT WNG MAIN PLNE AMR	-	1	Enquire
-	AD438010005	SILL NAME PLATE FRONT PERSONALISED RAPIDE	AD438010005 SILL NAME PLATE FRONT PERSONALISED RAPIDE -	-	2	Enquire
-	BD43132A51AA	NW PLATE FRT SILL	BD43132A51AA NW PLATE FRT SILL -	-	2	Enquire
-	SY9Y3600JCW	STEERING WHEEL	SY9Y3600JCW STEERING WHEEL Rapide S	-	2	Enquire
-	ED43132A51AA	NM PLAT FRT SILL	ED43132A51AA NM PLAT FRT SILL Rapide S, Centenary Edition	-	2	Enquire
-	SY9YC025B38FAW	A PILLAR ASSY RH FED	SY9YC025B38FAW A PILLAR ASSY RH FED 16MY, Rapide	-	2	Enquire
-	SY9YC27847CC	PNL BDYSD LH ROW GC	SY9YC27847CC PNL BDYSD LH ROW GC 16MY, Rapide, China Edition	-	2	Enquire
-	HDA3132A51CA	NM PLT FRT SILL	HDA3132A51CA NM PLT FRT SILL Rapide S 17.5MY Shadow Edition	-	2	Enquire
-	KD43132A51AA	NM PLT FRT SILL	KD43132A51AA NM PLT FRT SILL Rapide AMR 19MY	-	2	Enquire
-	83305B7B7D9	Stepped drill	83305B7B7D9 Stepped drill AMR	-	1	Enquire
-	SY53120609BB	DB12 DUP OWN FRA	SY53120609BB DB12 DUP OWN FRA AMR	-	1	Enquire
-	6G3303837AA	BUMPON SQUARE BLOCK	6G3303837AA BUMPON SQUARE BLOCK Lower console to carpet	-	A/R	Enquire
1	AD43281B11ACW	KIT ASSY SD CRPT LHD	AD43281B11ACW KIT ASSY SD CRPT LHD Up To 15MY	-	1	Enquire
2	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) -	-	3	Enquire
3	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35 -	-	2	Enquire
4	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
6	SY9Y454B62AB	SIDE PDC ACES PNL RH	SY9Y454B62AB SIDE PDC ACES PNL RH -	-	24	Enquire
7	AD43130A34ACW	CRPT ASY FLR RR RHS	AD43130A34ACW CRPT ASY FLR RR RHS -	-	1	Enquire
8	AD43130A35ACW	CRPT ASY FLR RR LHS	AD43130A35ACW CRPT ASY FLR RR LHS -	-	1	Enquire
9	SY9Y454B62AB	SIDE PDC ACES PNL RH	SY9Y454B62AB SIDE PDC ACES PNL RH -	-	5	Enquire
10	AD43311A76BA	FOOTWELL SPKR GRL RH	AD43311A76BA FOOTWELL SPKR GRL RH with fixings, B&O	-	1	Enquire
11	AD43311A77BA	FOOTWELL SPKR GRL LH	AD43311A77BA FOOTWELL SPKR GRL LH with fixings, B&O	-	1	Enquire
12	9D33201A49AA	Sheild, Speaker Grille Protection LH	9D33201A49AA Sheild, Speaker Grille Protection LH -	-	1	Enquire
13	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY -	-	1	Enquire
14	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest -	-	1	Enquire
15	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
16	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	3	Enquire
17	SY9Y14A272BB	P2.5 INVERTER AC CAB	SY9Y14A272BB P2.5 INVERTER AC CAB -	-	1	Enquire
18	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY -	-	1	Enquire
19	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
20	AD438310115	CARPET KT LHD-RAPIDE	AD438310115 CARPET KT LHD-RAPIDE -	-	1	Enquire
21	AD43605B28AC	ATNL MNT LWF SCF PLT	AD43605B28AC ATNL MNT LWF SCF PLT -	-	1	Enquire
22	AD43605B29AC	TNL MNT LWR SCF PLT	AD43605B29AC TNL MNT LWR SCF PLT -	-	1	Enquire
23	4G432705AA	Rivet Plastic	4G432705AA Rivet Plastic -	-	4	Enquire
24	AD43666A41AB	CARPET FINISHER LHS COMMON	AD43666A41AB CARPET FINISHER LHS COMMON -	-	2	Enquire
25	AD43666A40AB	CARPET FINISHER RHS COMMON	AD43666A40AB CARPET FINISHER RHS COMMON -	-	2	Enquire
27	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
28	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	8	Enquire
29	AD43132A12AAW	PLT FRNT DR SCF RH	AD43132A12AAW PLT FRNT DR SCF RH -	-	1	Enquire
30	AD43132A13AAW	PLT FRT DR SCF LH	AD43132A13AAW PLT FRT DR SCF LH -	-	1	Enquire
31	AD438010004	NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE	AD438010004 NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY-RAPIDE -	-	2	Enquire
32	HY5347124AJ	PANEL TRUNK FLOOR	HY5347124AJ PANEL TRUNK FLOOR Silver, Pack of 2	-	4	Enquire
33	83195B77F71	Twin Power Turbo Additive Petrol	83195B77F71 Twin Power Turbo Additive Petrol -	-	8	Enquire
34	83195A53167	Antifr./corros.inhibitor Frostox HT-12	83195A53167 Antifr./corros.inhibitor Frostox HT-12 -	-	1	Enquire
35	SY9Y8N502AB	BASE BRKT - EPUMP RH	SY9Y8N502AB BASE BRKT - EPUMP RH -	-	1	Enquire
36	4G4318449BC	SCF PLT ACCEL FIN	4G4318449BC SCF PLT ACCEL FIN -	-	1	Enquire
37	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	1	Enquire
38	701554	Screw, M5 x 12, Pan Hd	701554 Screw, M5 x 12, Pan Hd -	-	3	Enquire
39	SY9Y10578AA	OUTER AIR TRIP EXT R	SY9Y10578AA OUTER AIR TRIP EXT R 16MY	-	1	Enquire
40	SY83C237898AB	RR DR HDL CMN SAT	SY83C237898AB RR DR HDL CMN SAT 16MY	-	1	Enquire
