Rear Bumper of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Rear Bumper

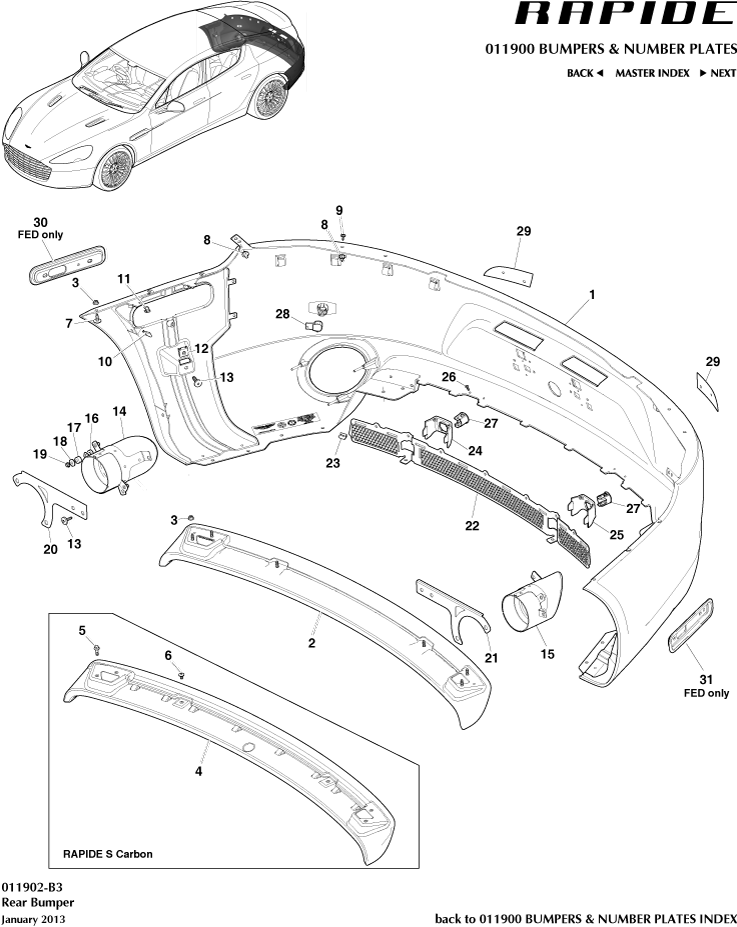

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4317K835BG	COVER ASSY REAR BUMPER FED PDC	AD4317K835BG COVER ASSY REAR BUMPER FED PDC -	-	1	Enquire
-	AD4317K835CB	COVER ASSY REAR BUMPER WORLD PDC WITH CAMERA	AD4317K835CB COVER ASSY REAR BUMPER WORLD PDC WITH CAMERA -	-	1	Enquire
-	AD4317K835DB	COVER ASSY REAR BUMPER FED PDC WITH CAMERA	AD4317K835DB COVER ASSY REAR BUMPER FED PDC WITH CAMERA -	-	1	Enquire
-	DD4317K835AA	COVER ASY REAR BUMP	DD4317K835AA COVER ASY REAR BUMP Rapide S	-	1	Enquire
-	DD4317K835BA	COVER ASSY RR BMPR	DD4317K835BA COVER ASSY RR BMPR Rapide S	-	1	Enquire
-	DD4317K835CA	COVER ASSY BUMP RR	DD4317K835CA COVER ASSY BUMP RR Rapide S	-	1	Enquire
-	DD4317K835DA	COVER ASSY RR BMPR	DD4317K835DA COVER ASSY RR BMPR Rapide S	-	1	Enquire
-	FD435K238BA	TAIL PIPE EMBELISHER	FD435K238BA TAIL PIPE EMBELISHER Black	-	1	Enquire
-	FD435K239BA	TAIL PIPE EMBELISHER	FD435K239BA TAIL PIPE EMBELISHER Black	-	1	Enquire
1	AD4317K835AG	COVER ASSY REAR BUMPER WORLD PDC	AD4317K835AG COVER ASSY REAR BUMPER WORLD PDC -	-	1	Enquire
2	AD4333612AC	DIFFUSER REAR ASSY	AD4333612AC DIFFUSER REAR ASSY -	-	1	Enquire
3	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	6	Enquire
4	DD4333612AA	DIFFUSER REAR ASSY	DD4333612AA DIFFUSER REAR ASSY Rapide S Option	-	1	Enquire
5	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd Rapide S Option	-	4	Enquire
6	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE Rapide S Option	-	2	Enquire
8	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) -	-	6	Enquire
9	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	4	Enquire
10	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) -	-	4	Enquire
11	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) -	-	4	Enquire
12	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) - ARRIVING SOON	-	2	Enquire
13	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) -	-	10	Enquire
14	AD435K238AE	TAIL PIPE EMBELISHER RH	AD435K238AE TAIL PIPE EMBELISHER RH Bright	-	1	Enquire
15	AD435K239AE	TAIL PIPE EMBELISHER LH	AD435K239AE TAIL PIPE EMBELISHER LH Bright	-	1	Enquire
16	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) -	-	6	Enquire
17	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) -	-	6	Enquire
18	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 -	-	6	Enquire
19	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	6	Enquire
20	AD435N203AA	EXHAUST TAILPIPE TRIM MOUNTING TO UNDERBODY RH	AD435N203AA EXHAUST TAILPIPE TRIM MOUNTING TO UNDERBODY RH -	-	1	Enquire
21	AD435N202KA	EXHAUST TAILPIPE TRIM MOUNTING TO UNDERBODY LH	AD435N202KA EXHAUST TAILPIPE TRIM MOUNTING TO UNDERBODY LH -	-	1	Enquire
22	AD4301950AC	MESH REAR CENTRE LOWER	AD4301950AC MESH REAR CENTRE LOWER -	-	1	Enquire
23	4G4317F773AB	RET GRILLE BUMPER	4G4317F773AB RET GRILLE BUMPER -	-	12	Enquire
24	AD4315A861AA	BRACKET PARKING AID SENSOR INNER RH	AD4315A861AA BRACKET PARKING AID SENSOR INNER RH -	-	1	Enquire
25	AD4315A864AA	BRACKET PARKING AID SENSOR INNER LH	AD4315A864AA BRACKET PARKING AID SENSOR INNER LH -	-	1	Enquire
26	65125B86C89	Head Unit High 5	65125B86C89 Head Unit High 5 -	-	4	Enquire
27	8D333710004	Bracket, Park Aid Sensor Inner	8D333710004 Bracket, Park Aid Sensor Inner -	-	2	Enquire
29	AD4317A849AA	REFLECTOR PLINTH	AD4317A849AA REFLECTOR PLINTH -	-	2	Enquire
30	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	1	Enquire
31	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	1	Enquire
