Interior Trim & Ornamentation - Rear Door Trim Panel of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

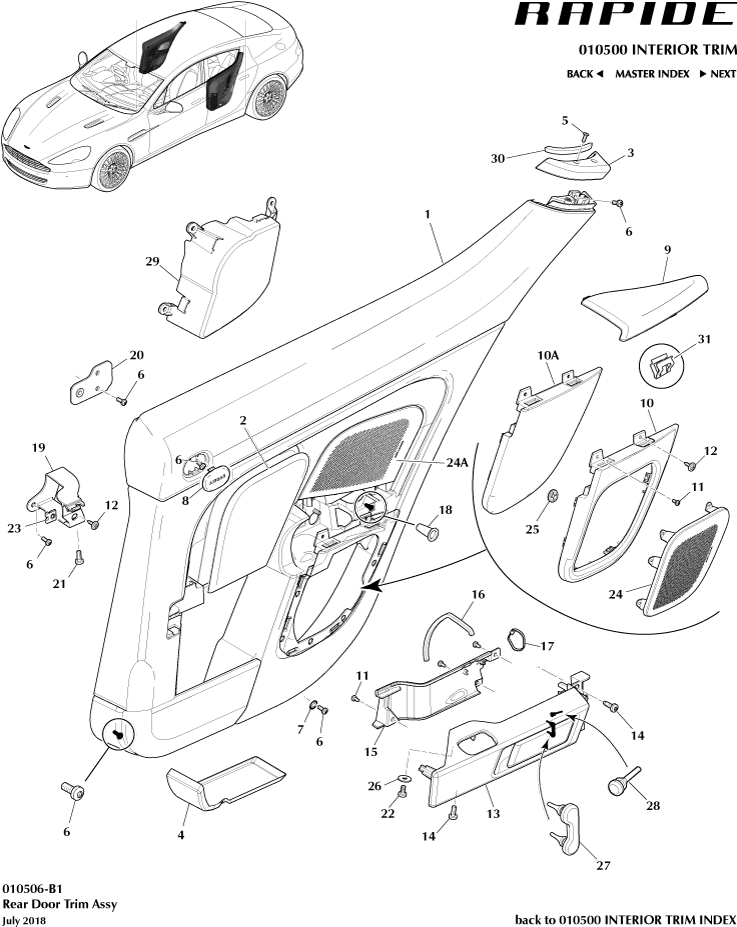

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Rear Door Trim Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4323949ADW	PNL ASY RR DR TR COM	AD4323949ADW PNL ASY RR DR TR COM With Leather Insert (Item 2)	-	1	Enquire
-	AD4323948BBW	PNL ASSY REAR DOOR T COMP RHS	AD4323948BBW PNL ASSY REAR DOOR T COMP RHS Less Wood Insert (Item 2)	-	1	Enquire
-	AD4323949BBW	PANEL ASSY REAR DOOR TRIM COMP LHS	AD4323949BBW PANEL ASSY REAR DOOR TRIM COMP LHS Less Wood Insert (Item 2)	-	1	Enquire
-	KD4323948AAW	PNL ASY RR DR TR COM	KD4323948AAW PNL ASY RR DR TR COM 19MY, AMR	-	1	Enquire
-	KD4323949AAW	PNL ASY RR DR TR COM	KD4323949AAW PNL ASY RR DR TR COM 19MY, AMR	-	1	Enquire
-	AD438710078	DOOR INSERT SET- RR 2 PCE-PIANO BLACK RAPIDE	AD438710078 DOOR INSERT SET- RR 2 PCE-PIANO BLACK RAPIDE Piano Black Veneer	-	1	Enquire
-	AD438710080	DOOR INSERT SET- RR 2 PCE-MAHOGANY RAPIDE	AD438710080 DOOR INSERT SET- RR 2 PCE-MAHOGANY RAPIDE Mahogany Veneer	-	1	Enquire
-	AD438710082	DOOR INSERT SET- RR 2 PCE-TAMO ASH RAPIDE	AD438710082 DOOR INSERT SET- RR 2 PCE-TAMO ASH RAPIDE Tamo Ash Veneer	-	1	Enquire
-	AD438710084	DOOR INSERT SET- RR 2 PCE-BAMBOO RAPIDE	AD438710084 DOOR INSERT SET- RR 2 PCE-BAMBOO RAPIDE Bamboo Veneer	-	1	Enquire
-	FD438710153	DR INSERT SET-T/CB R	FD438710153 DR INSERT SET-T/CB R From 15MY, Carbon Twill	-	1	Enquire
-	SY9Y2C374CA	DSC ASY VNT FR RH	SY9Y2C374CA DSC ASY VNT FR RH From 15MY, Carbon Cuprum	-	1	Enquire
-	51215B8DE09	Retrofit, Black door handles	51215B8DE09 Retrofit, Black door handles From 15MY, Piano Ice Mocha	-	1	Enquire
-	AD4323887AAW	INS ASY DR TR LH RR	AD4323887AAW INS ASY DR TR LH RR Leather Trimmed	-	1	Enquire
-	AD4323886AAW	INS ASY DR TR RH RR	AD4323886AAW INS ASY DR TR RH RR Leather Trimmed	-	1	Enquire
-	7129905865	ISA screw	7129905865 ISA screw AMR	-	1	Enquire
-	AD4323787AB	PNL ASY RR DR FNSHR UPR LHS	AD4323787AB PNL ASY RR DR FNSHR UPR LHS -	-	1	Enquire
-	54345B8DD04	Retrofit, RR31 coloured starlight, LCI	54345B8DD04 Retrofit, RR31 coloured starlight, LCI AMR	-	1	Enquire
-	54345B8C729	Retrofit, RR25 coloured starlight	54345B8C729 Retrofit, RR25 coloured starlight -	-	1	Enquire
-	11155A94CD7	Suction pipe	11155A94CD7 Suction pipe AMR	-	2	Enquire
-	KD4324006AAW	PAD DR A/REST RR RHS	KD4324006AAW PAD DR A/REST RR RHS 19MY, AMR	-	1	Enquire
-	AD4324007AAW	PAD DR A/REST RR LHS	AD4324007AAW PAD DR A/REST RR LHS -	-	1	Enquire
-	KD4324007AAW	PAD DR A/REST RR LHS	KD4324007AAW PAD DR A/REST RR LHS 19MY, AMR	-	1	Enquire
-	KD4324004AAW	PAD DR A/REST	KD4324004AAW PAD DR A/REST Bang and Olufsen. 19MY, AMR	-	1	Enquire
-	13625B3C193	Cable channel, NOx	13625B3C193 Cable channel, NOx Bang and Olufsen	-	1	Enquire
-	KD4324005AAW	PAD DR A/REST	KD4324005AAW PAD DR A/REST Bang and Olufsen. 19MY, AMR	-	1	Enquire
-	54345B8C733	Retrofit, RR31 coloured starlight, LCI	54345B8C733 Retrofit, RR31 coloured starlight, LCI ASK Audio	-	1	Enquire
-	703756	WASHER-M4 PLAIN	703756 WASHER-M4 PLAIN Not Drawn, 2 per Fixing.	-	8	Enquire
-	AD43J489BA	WASHER LEXAN	AD43J489BA WASHER LEXAN Not Drawn, 1 per Fixing	-	4	Enquire
-	DD4322616AA	ASY INSIDE RLSE HNDL	DD4322616AA ASY INSIDE RLSE HNDL Piano Black	-	1	Enquire
-	FD4322616CD	ASY INSIDE RLSE HNDL	FD4322616CD ASY INSIDE RLSE HNDL Ice Mocha	-	1	Enquire
-	AD4322617AD	ASY INSIDE RLSE HNDL	AD4322617AD ASY INSIDE RLSE HNDL Iridium	-	1	Enquire
-	DD4322617AA	ASY INSIDE RLSE HNDL	DD4322617AA ASY INSIDE RLSE HNDL Piano Black	-	1	Enquire
-	FD4322617CD	ASY INSIDE RLSE HNDL	FD4322617CD ASY INSIDE RLSE HNDL Ice Mocha	-	1	Enquire
-	AD4324245AB	REAR DOOR GRAB INSERT LEFT HAND	AD4324245AB REAR DOOR GRAB INSERT LEFT HAND -	-	1	Enquire
-	AD4314C927AA	REAR DOOR GRAB BMOUNTING BRACKET LH	AD4314C927AA REAR DOOR GRAB BMOUNTING BRACKET LH -	-	1	Enquire
-	AD4312A957AA	REAR DOOR GRAB MOUNTING BRACKET LHS	AD4312A957AA REAR DOOR GRAB MOUNTING BRACKET LHS -	-	1	Enquire
-	DD4318994DA	RR DR TR LWR SPK B&O	DD4318994DA RR DR TR LWR SPK B&O With B&O	-	1	Enquire
-	AD4318995AB	RR DR TRM LWR SPK GR	AD4318995AB RR DR TRM LWR SPK GR With B&O	-	1	Enquire
-	DD4318995DA	RR DR TRM LWR SPK GR	DD4318995DA RR DR TRM LWR SPK GR With B&O	-	1	Enquire
-	54345B8DCE8	Retrofit, RR25 coloured starlight	54345B8DCE8 Retrofit, RR25 coloured starlight With ASK, 19MY on	-	1	Enquire
-	GD43238A49AB	INS RR DR LH	GD43238A49AB INS RR DR LH ASK Audio	-	1	Enquire
1	AD4323948ADW	PNL ASY RR DR TR COM	AD4323948ADW PNL ASY RR DR TR COM With Leather Insert (Item 2)	-	1	Enquire
2	AD438710076	DOOR INSERT SET- RR 2 PCE-WALNUT RAPIDE	AD438710076 DOOR INSERT SET- RR 2 PCE-WALNUT RAPIDE Walnut Veneer	-	1	Enquire
3	AD4323786AB	PNL ASY RR DR FINSHR UPR RHS	AD4323786AB PNL ASY RR DR FINSHR UPR RHS -	-	1	Enquire
4	61355B4A6B2	Sensor rain/light/solar/misting over HUD	61355B4A6B2 Sensor rain/light/solar/misting over HUD -	-	1	Enquire
5	704779	Screw, M4 x 12, Flat Csk Skt Head	704779 Screw, M4 x 12, Flat Csk Skt Head -	-	2	Enquire
6	702084	Screw, M5 x 12, Pan Head	702084 Screw, M5 x 12, Pan Head per Door panel	-	8	Enquire
7	6G33100063AA	PUSH ON FIX 6MM	6G33100063AA PUSH ON FIX 6MM per Door panel	-	1	Enquire
8	AD4323747AAW	Insert, AIRBAG	AD4323747AAW Insert, AIRBAG per Door panel	-	1	Enquire
9	51215B8DE23	Retrofit, Black door handles	51215B8DE23 Retrofit, Black door handles -	-	1	Enquire
10	83125B5ED66	cleaning fluid with antifreeze	83125B5ED66 cleaning fluid with antifreeze Bang and Olufsen	-	1	Enquire
10A	SY9Y9K103AA	VENT PIPE V CLAMP	SY9Y9K103AA VENT PIPE V CLAMP ASK Audio	-	1	Enquire
11	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE per Door panel	-	4	Enquire
12	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) per Door panel	-	1	Enquire
13	AD4322616AD	ASY INSIDE RLSE HNDL	AD4322616AD ASY INSIDE RLSE HNDL Iridium	-	1	Enquire
14	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV 2 per Door panel	-	4	Enquire
15	AD4324244AB	RR DR GRAB INSRT RHS	AD4324244AB RR DR GRAB INSRT RHS -	-	1	Enquire
16	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS per Door panel	-	1	Enquire
17	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm per Door panel	-	1	Enquire
18	SY9Y2K004AA	DIRT SHIELD FRONT RH	SY9Y2K004AA DIRT SHIELD FRONT RH per Door panel	-	1	Enquire
19	54345B8DCE4	Retrofit, RR21/22 coloured starlight	54345B8DCE4 Retrofit, RR21/22 coloured starlight -	-	1	Enquire
20	AD4312A956AA	RR DOOR GRAB MOUNTIN BRACKET RHS	AD4312A956AA RR DOOR GRAB MOUNTIN BRACKET RHS -	-	1	Enquire
21	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV per Door panel	-	1	Enquire
22	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head per Door panel	-	1	Enquire
23	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per Door panel	-	1	Enquire
24	AD4318994AB	RR DR TR LWR SPK B&0	AD4318994AB RR DR TR LWR SPK B&0 With B&O	-	1	Enquire
24A	7129904066	ISA screw	7129904066 ISA screw With ASK, 19MY on	-	1	Enquire
25	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On per Door panel	-	7	Enquire
26	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 2 per Door panel, Pack of 20	-	4	Enquire
27	ED43226A28AA	BUMP STOP	ED43226A28AA BUMP STOP 1 per handle	-	2	Enquire
28	4G436910112	BUFFER-GLOVE BOX DR	4G436910112 BUFFER-GLOVE BOX DR 1 Per Handle	-	2	Enquire
29	GD43238A48AB	INS RR DR RH	GD43238A48AB INS RR DR RH ASK Audio	-	1	Enquire
30	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE -	-	2	Enquire
31	706114	CLIP-DOOR TRIM PADS	706114 CLIP-DOOR TRIM PADS -	-	A/R	Enquire
