Body Exterior Trim & Ornamentation - Sill Applique, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Body Exterior Trim & Ornamentation - Sill Applique, 'AMR'

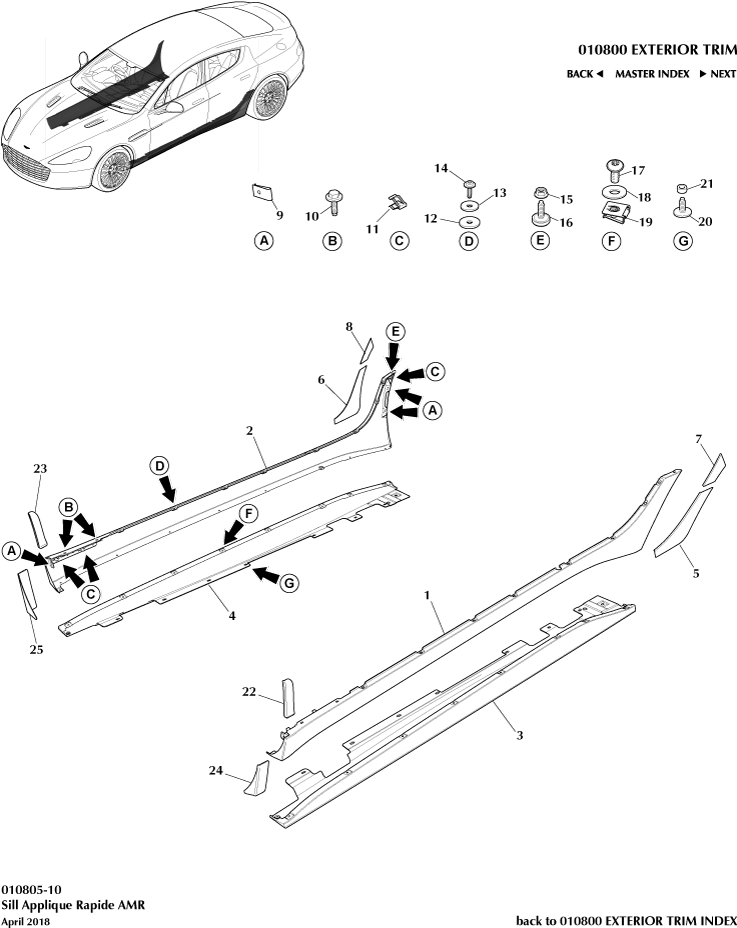

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	KD4310611BA	SILL BLADE LH	KD4310611BA SILL BLADE LH With Graphic	-	1	Enquire
-	KD4310610BA	SILL BLADE RH	KD4310610BA SILL BLADE RH With Graphic	-	1	Enquire
-	KD4310625BA	SILL REAR TAPE LH	KD4310625BA SILL REAR TAPE LH Matt	-	1	Enquire
-	KD4310624BA	SILL REAR TAPE RH	KD4310624BA SILL REAR TAPE RH Matt	-	1	Enquire
-	KD4310631BA	REAR QTR TAPE LH	KD4310631BA REAR QTR TAPE LH Matt	-	1	Enquire
-	KD4310630BA	REAR QTR TAPE RH	KD4310630BA REAR QTR TAPE RH Matt	-	1	Enquire
-	KD4310627BA	FR FNDR PT FLM MT LH	KD4310627BA FR FNDR PT FLM MT LH Matt	-	1	Enquire
-	KD4310626BA	FR FDR PNT FLM MT RH	KD4310626BA FR FDR PNT FLM MT RH Matt	-	1	Enquire
-	KD4310633BA	FR SL BLD FILM MT LH	KD4310633BA FR SL BLD FILM MT LH Matt	-	1	Enquire
-	KD4310632BA	FR SL BLD FILM MT RH	KD4310632BA FR SL BLD FILM MT RH Matt	-	1	Enquire
1	KD4310609AA	SILL APPLIQUE LH	KD4310609AA SILL APPLIQUE LH -	-	1	Enquire
2	KD4310608AA	SILL APPLIQUE RH	KD4310608AA SILL APPLIQUE RH -	-	1	Enquire
3	KD4310611AA	SILL BLADE LH	KD4310611AA SILL BLADE LH -	-	1	Enquire
4	KD4310610AA	SILL BLADE RH	KD4310610AA SILL BLADE RH -	-	1	Enquire
5	KD4310625AA	SILL REAR TAPE LH	KD4310625AA SILL REAR TAPE LH Gloss	-	1	Enquire
6	KD4310624AA	SILL REAR TAPE RH	KD4310624AA SILL REAR TAPE RH Gloss	-	1	Enquire
7	KD4310631AA	REAR QTR TAPE LH	KD4310631AA REAR QTR TAPE LH Gloss	-	1	Enquire
8	KD4310630AA	REAR QTR TAPE RH	KD4310630AA REAR QTR TAPE RH Gloss	-	1	Enquire
9	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	6	Enquire
10	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	4	Enquire
11	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	6	Enquire
12	8G336078574AA	Flat Washer, Nylon, 22.2 x 12.9 x 1.5	8G336078574AA Flat Washer, Nylon, 22.2 x 12.9 x 1.5 -	-	14	Enquire
13	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK -	-	14	Enquire
14	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head -	-	14	Enquire
15	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	2	Enquire
16	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
18	4G4316C694ABPK	Washer Nylon M6 (Pack of 10)	4G4316C694ABPK Washer Nylon M6 (Pack of 10) Pack of 10	-	18	Enquire
19	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	18	Enquire
20	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD -	-	12	Enquire
21	AD435144AA	SPACER - SILL APPLIQUE	AD435144AA SPACER - SILL APPLIQUE -	-	12	Enquire
22	KD4310627AA	FR FDR PNT FLM GL LH	KD4310627AA FR FDR PNT FLM GL LH Gloss	-	1	Enquire
23	KD4310626AA	FT FDR PNT FLM GL RH	KD4310626AA FT FDR PNT FLM GL RH Gloss	-	1	Enquire
24	KD4310633AA	FR SL BLD FILM GL LH	KD4310633AA FR SL BLD FILM GL LH Gloss	-	1	Enquire
25	KD4310632AA	FR SL BLD FILM GL RH	KD4310632AA FR SL BLD FILM GL RH Gloss	-	1	Enquire
