Body Structure - Rear Wheel Arches

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Rear Wheel Arches

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
Body Structure - Rear Wheel Arches of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DD4354279D44AA
REAR W/A LNER INF RH
With 30mm Gurney Flap Around Tyre 		- 1 Enquire
- DD4354279D45AA
REAR W/A LNER INF LH
With 30mm Gurney Flap Around Tyre 		- 1 Enquire
1 AD4354279D22AD
REAR WHEELARCH LINER RH
- 		- 1 Enquire
2 AD4354279D23AD
REAR WHEELARCH LINER LH
- 		- 1 Enquire
3 AD4354279D44AA
REAR WHEELARCH INFILL PNL RH
Less 30mm Gurney Flap Around Tyre 		- 1 Enquire
4 AD4354279D45AA
REAR WHEELARCH INFILL PNL LH
Less 30mm Gurney Flap Around Tyre 		- 1 Enquire
5 AD4316586AA
ASSY REAR WHEELARCH LINER FIXING BRACKET
- 		- 2 Enquire
6 AD4316586CA
REAR WHEEL ARCH LINER FIXING BRACKET UPPER LH
- 		- 1 Enquire
7 702514
SCREW M6 x 14 PAN HEAD
Rapide S, Qty 28 		- 32 Enquire
8 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
ARRIVING SOON 		- 14 Enquire

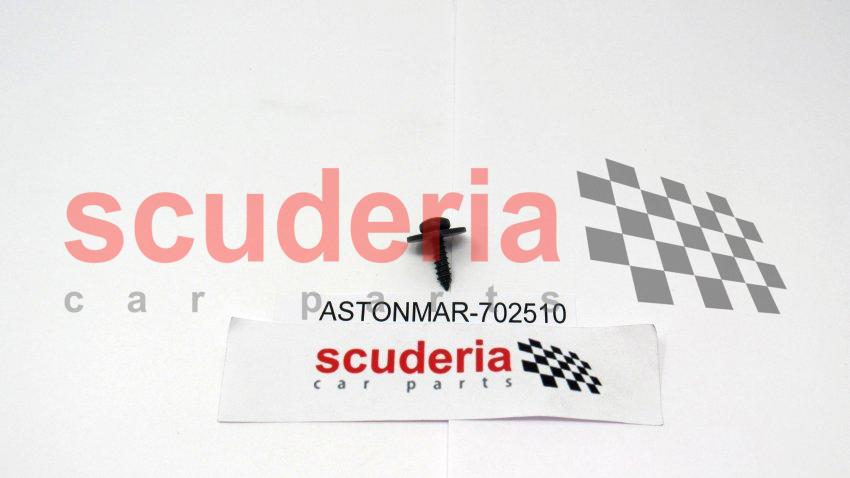

9 702510
SCREW & WSHR
- 		- 8 Enquire
10 704327
Nut and Washer, M6, Hex Flange Head
- 		- 2 Enquire
11 51435B808E0
Retrofit, illuminated treadplate Spectre
19MY, AMR 		- 1 Enquire
12 83215B5A209
Group LL-04 0W-30
19MY, AMR 		- 1 Enquire
