Instrument and Console Panels - Centre Stack Trim Panel of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Centre Stack Trim Panel

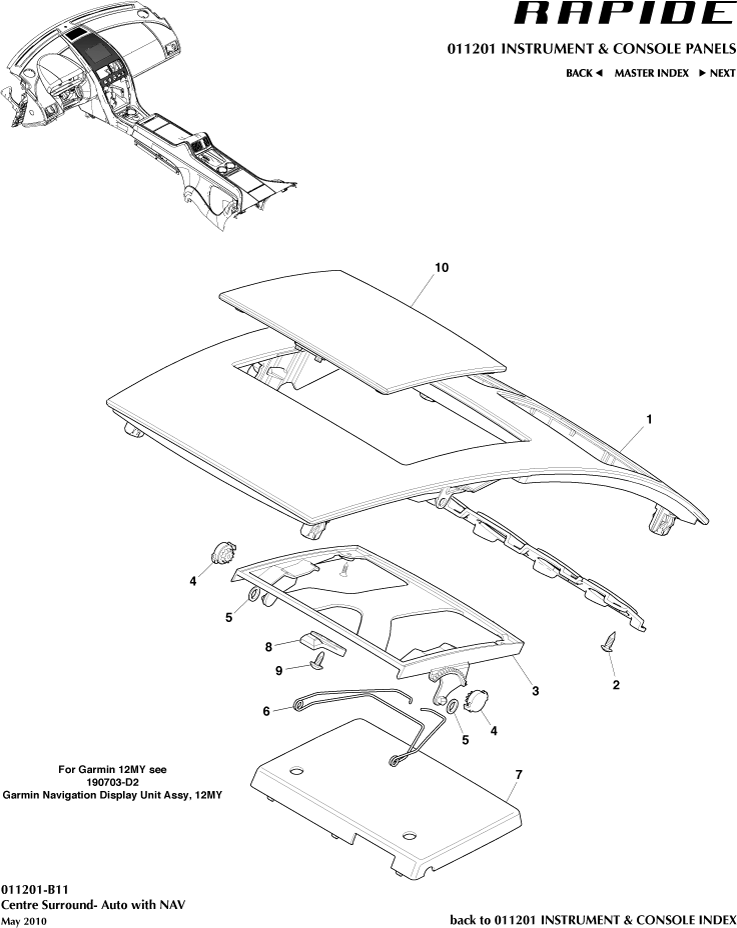

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD43045H43AA	NAV SURROUND ASSY AUTO NEXUS ALLOY	CD43045H43AA NAV SURROUND ASSY AUTO NEXUS ALLOY Nexus alloy, 12MY	-	1	Enquire
-	52102212282	Headrest kit, Bespoke logo	52102212282 Headrest kit, Bespoke logo Double apex alloy	-	1	Enquire
-	CG43045H43CA	VENEER NAV SURROUND ASSY AUTO NEW WOOD	CG43045H43CA VENEER NAV SURROUND ASSY AUTO NEW WOOD Double apex alloy, 12MY	-	1	Enquire
-	9G43045J10AA	NAV SURROUND - WALNU	9G43045J10AA NAV SURROUND - WALNU Walnut	-	1	Enquire
-	CG43045J10AB	NAV SURROUND -WALNUT	CG43045J10AB NAV SURROUND -WALNUT Walnut, 12MY	-	1	Enquire
-	9G43045J10BA	NAV SURROUND - MAH	9G43045J10BA NAV SURROUND - MAH Mahogany	-	1	Enquire
-	CG43045J10BB	NAV SURROUND -MAH	CG43045J10BB NAV SURROUND -MAH Mahogany, 12MY	-	1	Enquire
-	9G43045J10CA	NAV SURROUND - BAMBO	9G43045J10CA NAV SURROUND - BAMBO Bamboo	-	1	Enquire
-	CG43045J10CB	NAV SURROUND -BAMBO	CG43045J10CB NAV SURROUND -BAMBO Bamboo, 12MY	-	1	Enquire
-	9G43045J10NA	VNR NAV AUTO/BLACK	9G43045J10NA VNR NAV AUTO/BLACK Piano black	-	1	Enquire
-	22AA722GP	MLDG BASE DOOR MIRROR COVER LWR LH	22AA722GP MLDG BASE DOOR MIRROR COVER LWR LH Piano black, 12MY	$21.68	1
-	9G43045J10SA	NAV SURROUND - ASH	9G43045J10SA NAV SURROUND - ASH Tamo ash	-	1	Enquire
-	CG43045J10SB	NAV SURROUND - ASH	CG43045J10SB NAV SURROUND - ASH Tamo ash, 12MY	-	1	Enquire
-	AD43047A04AA	BEZL ASSY I/PNL AUTO NEXUS ALLOY	AD43047A04AA BEZL ASSY I/PNL AUTO NEXUS ALLOY Nexus alloy	-	1	Enquire
-	9G43045J10GA	BZL ASY I/PNL CTRL	9G43045J10GA BZL ASY I/PNL CTRL Walnut	-	1	Enquire
-	9G43045J10HA	BZL ASY I/PNL CTRL	9G43045J10HA BZL ASY I/PNL CTRL Mahogany	-	1	Enquire
-	9G43045J10JA	BZL ASY I/PNL CTRL	9G43045J10JA BZL ASY I/PNL CTRL Bamboo	-	1	Enquire
-	9G43045J10RA	BZL ASY I/PNL CONTR	9G43045J10RA BZL ASY I/PNL CONTR Piano black	-	1	Enquire
-	9G43045J10VA	BZL ASY I/PNL CONTR	9G43045J10VA BZL ASY I/PNL CONTR Tamo ash	-	1	Enquire
-	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK -	-	2	Enquire
-	703024	Screw M4x3/8 Csk	703024 Screw M4x3/8 Csk -	-	2	Enquire
-	AG43045G37AA	DOOR CONSOLE NAV	AG43045G37AA DOOR CONSOLE NAV Double apex alloy	-	1	Enquire
1	AD43045H43AA	NAV SURROUND ASSY AUTO NEXUS ALLOY	AD43045H43AA NAV SURROUND ASSY AUTO NEXUS ALLOY Nexus alloy	-	1	Enquire
2	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head -	-	6	Enquire
3	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	6G3318C917AB BRACKET - NAVIGATION MOUNTING -	-	1	Enquire
4	6G3338392AA	SPINDLE DAMPER	6G3338392AA SPINDLE DAMPER -	-	2	Enquire
5	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	6G338979AA WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK -	-	2	Enquire
6	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	6G3319363AE SPRING TORSION 100 x 75 x 1.8 -	-	1	Enquire
7	6G3310E901AC	NAVIGATION DISPLAY TOP COVER	6G3310E901AC NAVIGATION DISPLAY TOP COVER -	-	1	Enquire
8	6G3314163AB	LOCATOR	6G3314163AB LOCATOR -	-	1	Enquire
9	6G33104101AB	M4 THRD FORM SCREW	6G33104101AB M4 THRD FORM SCREW -	-	1	Enquire
10	AD43045G37AA	DOOR CONSOLE NAV NEXUS ALLOY	AD43045G37AA DOOR CONSOLE NAV NEXUS ALLOY Nexus alloy	-	1	Enquire
