Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Centre Stack Trim Panel, 'AMR'

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

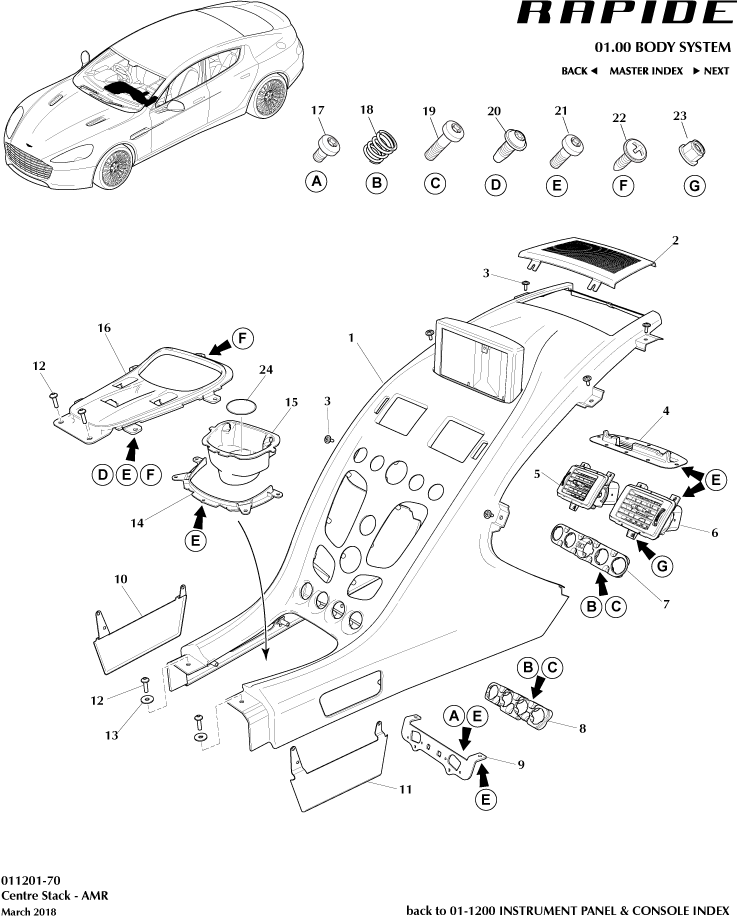

Instrument and Console Panels - Centre Stack Trim Panel, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 KD4355210AB
PNL CNSL ASSY
- 		- 1 Enquire
2 9D33C046A26AC
Grille Assy, Centre Speaker, Instrument Panel
- 		- 1 Enquire
3 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10 		- 6 Enquire
4 11241020771
Connecting rod bolt
- 		- 1 Enquire
5 GD2Y046B31AA
RGSTR ASY I/PNL A/C
- 		- 1 Enquire
6 GD2Y046B30AA
RGSTR ASY I/PNL A/C
- 		- 1 Enquire
7 DD3314A462AB
Switch Carrier, PRND & Starter Button
- 		- 1 Enquire
8 DD3314A462BB
LOWER SWITCH CARRIER
- 		- 1 Enquire
9 61137562743
Cable strap bracket
- 		- 1 Enquire
10 KD43130B15AA
CRPT BRKT MTG LH
- 		- 1 Enquire
11 KD43130B14AA
CRPT BRKT MTG RH
- 		- 1 Enquire
12 FD4310512FAA
M5X20 FLNC PN HD
- 		- 4 Enquire
13 697517
WASHER M6 LGE OD BLK
- 		- 2 Enquire
14 64115B6B582
Control unit air conditioning sys.
- 		- 1 Enquire
15 51165B79BB0
Interior mirror EC / LED / GTO
- 		- 1 Enquire
16 KD4306250AD
TRNKT TRY BZL ASY
- 		- 1 Enquire
17 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10
Pack of 10 		- 4 Enquire
18 DD3311A090AB
Compression Spring, Centre Stack Veneer
- 		- 14 Enquire
19 DD330863AA
Screw, M4 x12, Pan Hd, Patch Lock
- 		- 18 Enquire
20 703027
SCREW M4x10 PAN HD TORX S/TAP
- 		- 2 Enquire
21 703175
SCREW M4 x 10 PAN TORX CHROME FREE
- 		- 22 Enquire
22 4G4351757AA
Screw M4 Self Tap M4 (Mini C Rail)
- 		- 10 Enquire
23 700986PK
Nut-M4 HEX FLG Pack of 20
Pack of 20 		- 2 Enquire
24 AD43040K60AA
CP/HLDR INSRT BASE
- 		- 1 Enquire
