Instrument and Console Panels - Rear Console, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Rear Console, 'AMR'

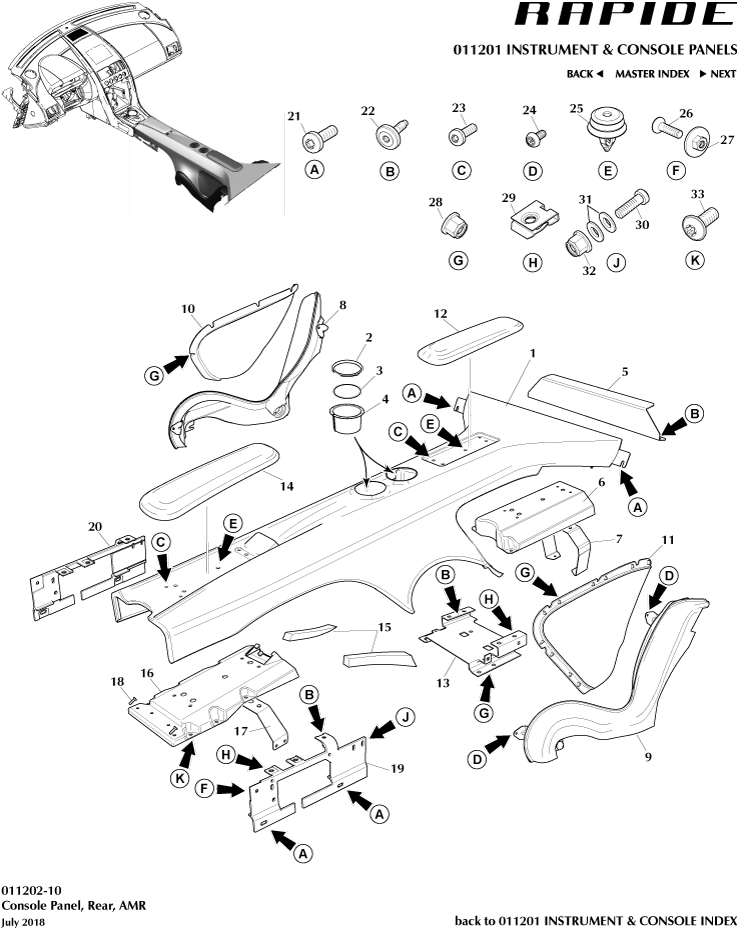

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y5B539AB	RIDE HEIGHT BKT CTRL	SY9Y5B539AB RIDE HEIGHT BKT CTRL Leather	-	1	Enquire
-	SY9Y5A744AA	SUSP ROCKER RH	SY9Y5A744AA SUSP ROCKER RH Leather	-	1	Enquire
1	KD4367446AD	PNL ASY RR CNSL	KD4367446AD PNL ASY RR CNSL -	-	1	Enquire
2	KD4329745AA	CUPHOLDER FINISHER	KD4329745AA CUPHOLDER FINISHER -	-	2	Enquire
3	AD43040K60AA	CP/HLDR INSRT BASE	AD43040K60AA CP/HLDR INSRT BASE -	-	2	Enquire
4	64509871511	Sound insulation	64509871511 Sound insulation -	-	2	Enquire
5	12379489826	Exciter cable	12379489826 Exciter cable -	-	1	Enquire
6	51249450098	Bowden cable, emergency unlocking	51249450098 Bowden cable, emergency unlocking -	-	1	Enquire
7	SY9Y3G592BA	INTERIOR FDM	SY9Y3G592BA INTERIOR FDM -	-	1	Enquire
8	51337433399	Foam seal	51337433399 Foam seal -	-	1	Enquire
9	51237259691	Actuator, left	51237259691 Actuator, left -	-	1	Enquire
10	SY9Y5G068AB	BRKT P2.5INV FT RHS	SY9Y5G068AB BRKT P2.5INV FT RHS Alcantara	-	1	Enquire
11	11258485797	Repair kit piston rings	11258485797 Repair kit piston rings Alcantara	-	1	Enquire
12	KD4367442ABW	ARMREST ASSY RR CNSL	KD4367442ABW ARMREST ASSY RR CNSL -	-	1	Enquire
13	12371029163	Pressure compensation element	12371029163 Pressure compensation element -	-	1	Enquire
14	7147282845	Expanding rivet	7147282845 Expanding rivet -	-	1	Enquire
15	CG43403D62AA	Seal, Upper Panel, Air Vent	CG43403D62AA Seal, Upper Panel, Air Vent -	-	2	Enquire
16	SY9Y70290KA	315 KEY DARK SERV	SY9Y70290KA 315 KEY DARK SERV -	-	1	Enquire
17	81315B75BE1	Magnetic holder	81315B75BE1 Magnetic holder -	-	1	Enquire
18	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black -	-	2	Enquire
19	KD43046A57AA	CNSL BRKT ASY FRT LH	KD43046A57AA CNSL BRKT ASY FRT LH -	-	1	Enquire
20	KD43046A56AA	CNSL BRKT ASY FRT RH	KD43046A56AA CNSL BRKT ASY FRT RH -	-	1	Enquire
21	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	2	Enquire
22	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	10	Enquire
23	700242	SCREW M5 X 16 PAN HEAD BLACK	700242 SCREW M5 X 16 PAN HEAD BLACK -	-	8	Enquire
25	702587	PLASTIC TRIM PIN 8.0mm x 1.5	702587 PLASTIC TRIM PIN 8.0mm x 1.5 -	-	8	Enquire
26	700242	SCREW M5 X 16 PAN HEAD BLACK	700242 SCREW M5 X 16 PAN HEAD BLACK -	-	2	Enquire
27	707262	NUT & WSHER M5	707262 NUT & WSHER M5 -	-	2	Enquire
28	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	12	Enquire
29	702945	M6 J NUT	702945 M6 J NUT -	-	12	Enquire
30	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	6G33SS106209AB Bolt, M6 x 20, Skt Hd -	-	4	Enquire
31	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL -	-	8	Enquire
32	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	4	Enquire
33	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX -	-	4	Enquire
