Body Structure - Upper Body Frame of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Upper Body Frame

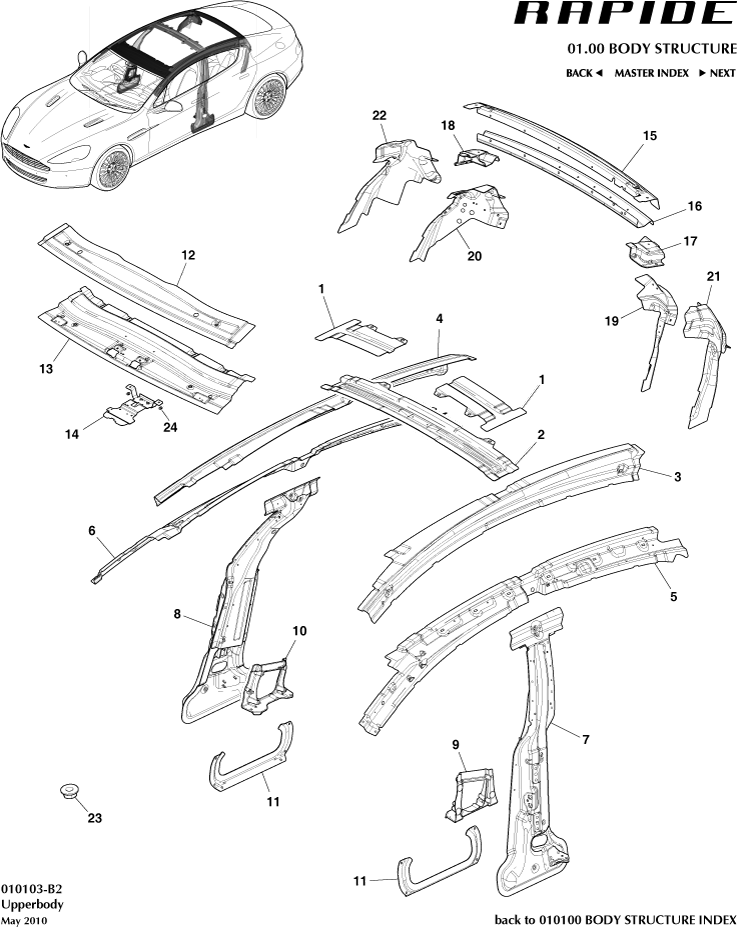

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	36115B8E763	Set wheel & winter tyre, style 767	36115B8E763 Set wheel & winter tyre, style 767 Rapide S 14.5MY,Structural. Cat A only	-	1	Enquire
-	ED43F513A31AA	RL RF SD INNR LH	ED43F513A31AA RL RF SD INNR LH Rapide S 14.5MY,Structural. Cat A only	-	1	Enquire
-	36115B8E763	Set wheel & winter tyre, style 767	36115B8E763 Set wheel & winter tyre, style 767 Rapide S 14.5MY,Structural. Cat A only	-	1	Enquire
-	DD43C17727BB	BRKT RR VIEW MIRR MT	DD43C17727BB BRKT RR VIEW MIRR MT Rapide S	-	1	Enquire
-	DD43F6392208AA	REAR HEADER LOWER	DD43F6392208AA REAR HEADER LOWER Rapide S,Structural. Cat A only	-	1	Enquire
-	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	A/R	Enquire
1	GOAD43F670309AA	ROOF BOW CLOSER	GOAD43F670309AA ROOF BOW CLOSER Structural. Cat A only	-	2	Enquire
2	GOAD43F70700AA	PNL ROOF BOW	GOAD43F70700AA PNL ROOF BOW Structural. Cat A only	-	1	Enquire
3	GOAD43F513A09AB	REINF RF SD RL LH	GOAD43F513A09AB REINF RF SD RL LH Structural. Cat A only	-	1	Enquire
4	GOAD43F513A08AB	REINF ROOF SIDE RAIL RH	GOAD43F513A08AB REINF ROOF SIDE RAIL RH Structural. Cat A only	-	1	Enquire
5	GOAD43F513A31AF	RL RF SD INNR LH	GOAD43F513A31AF RL RF SD INNR LH Structural. Cat A only	-	1	Enquire
6	GOAD43F513A30AF	RL RF SD INR RH	GOAD43F513A30AF RL RF SD INR RH Structural. Cat A only	-	1	Enquire
7	AD43D279K03AA	B PILLAR ASSY LH SERVICE	AD43D279K03AA B PILLAR ASSY LH SERVICE Service Assembly,Structural. Cat A only	-	1	Enquire
8	AD43D279K02AA	B PILLAER ASSY RH SERVICE	AD43D279K02AA B PILLAER ASSY RH SERVICE Service Assembly,Structural. Cat A only	-	1	Enquire
9	GOAD4324313BA	PLR CTR BDY LH	GOAD4324313BA PLR CTR BDY LH Structural. Cat A only	-	1	Enquire
10	GOAD4324312BA	PLR CTR BDY RH	GOAD4324312BA PLR CTR BDY RH Structural. Cat A only	-	1	Enquire
11	GOAD43F2658AA	RETENTION RING B/C PILLAR	GOAD43F2658AA RETENTION RING B/C PILLAR Structural. Cat A only	-	2	Enquire
12	51135B8F485	Retrofit, Black pack, RR21 LCI	51135B8F485 Retrofit, Black pack, RR21 LCI Structural. Cat A only	-	1	Enquire
13	SY9Y6068BB	TRANSMISSION MOUNT	SY9Y6068BB TRANSMISSION MOUNT Structural. Cat A only	-	1	Enquire
14	AD43C17727AB	BRACKET REAR VIEW MIRROR MOUNTING	AD43C17727AB BRACKET REAR VIEW MIRROR MOUNTING -	-	1	Enquire
15	SY9Y9L274AB	TNL CASSETTE GRD STP	SY9Y9L274AB TNL CASSETTE GRD STP Structural. Cat A only	-	1	Enquire
16	12515B3B404	Add. wiring harness, temperature sensor	12515B3B404 Add. wiring harness, temperature sensor Structural. Cat A only	-	1	Enquire
17	52102183076	Headrest kit, Bespoke tattoo	52102183076 Headrest kit, Bespoke tattoo Structural. Cat A only	-	1	Enquire
18	GOAD43F40364AA	C PILL RR HDR CSTG RH	GOAD43F40364AA C PILL RR HDR CSTG RH Structural. Cat A only	-	1	Enquire
19	AD43F410A83AC	Reinforcement, C Pillar LH	AD43F410A83AC Reinforcement, C Pillar LH Structural. Cat A only	-	1	Enquire
20	AD43F410A82AC	Reinforcement, C Pillar RH	AD43F410A82AC Reinforcement, C Pillar RH Structural. Cat A only	-	1	Enquire
21	SY9Y9294AB	CABLE TIE 460 X 7.6	SY9Y9294AB CABLE TIE 460 X 7.6 Structural. Cat A only	-	1	Enquire
22	SY9Y23944IBW	DOOR ASSY TRIM RH	SY9Y23944IBW DOOR ASSY TRIM RH Structural. Cat A only	-	1	Enquire
23	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	4	Enquire
24	699733	WASHER M6 ST STL	699733 WASHER M6 ST STL Rapide S 14MY	-	2	Enquire
