Body Structure - Ancillary Parts of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Ancillary Parts

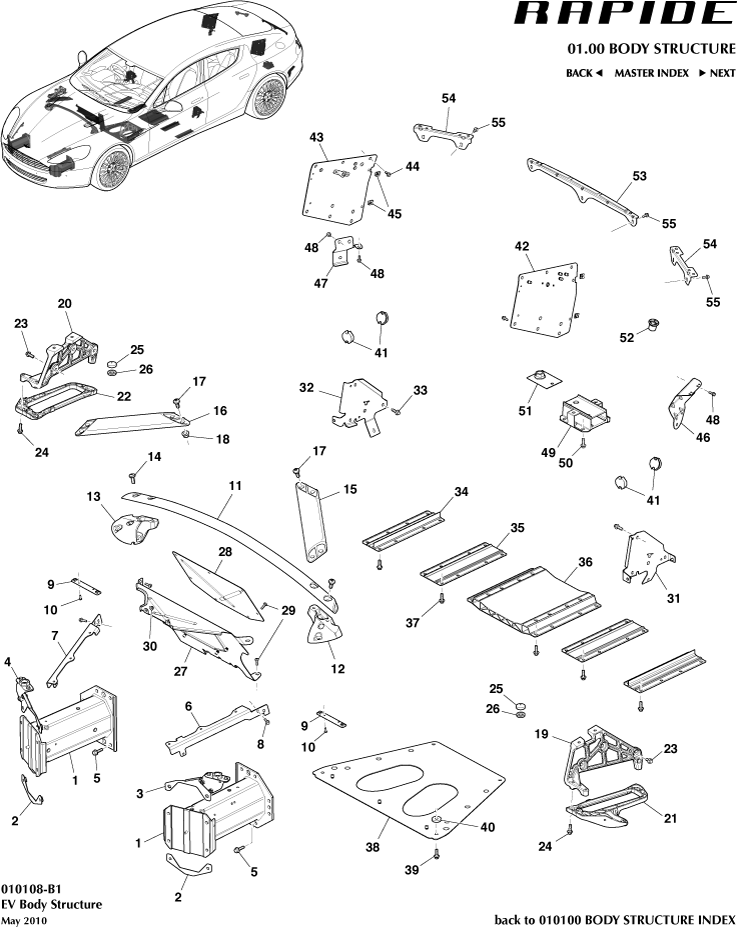

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G43111C60GD	Panel, Dummy Floor Front, LHD	9G43111C60GD Panel, Dummy Floor Front, LHD LHD	-	1	Enquire
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	-	A/R	Enquire
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	-	A/R	Enquire
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN Structural Cat. A only	-	2	Enquire
2	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH	-	2	Enquire
3	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH	-	1	Enquire
4	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH	-	1	Enquire
5	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	12	Enquire
6	4G43043B20AB	TUB PASS AIR BAG INT	4G43043B20AB TUB PASS AIR BAG INT	-	1	Enquire
7	4G43043B19AB	TUB PASS AIR BAG INT	4G43043B19AB TUB PASS AIR BAG INT	-	1	Enquire
8	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
9	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket	-	2	Enquire
10	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8	-	4	Enquire
14	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	4	Enquire
15	P04G43F00199AF	REINF BDY FRT CS BAR	P04G43F00199AF REINF BDY FRT CS BAR	-	1	Enquire
16	P04G43F00198AF	REINF BDY FRT CS BAR	P04G43F00198AF REINF BDY FRT CS BAR	-	1	Enquire
17	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	8	Enquire
18	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10)	-	4	Enquire
19	AD4316799AB	BRACKET HOD HINGE SUPPORT LH	AD4316799AB BRACKET HOD HINGE SUPPORT LH	-	1	Enquire
20	AD4316798AB	BRACKET HOD HINGE SUPPORT RH	AD4316798AB BRACKET HOD HINGE SUPPORT RH	-	1	Enquire

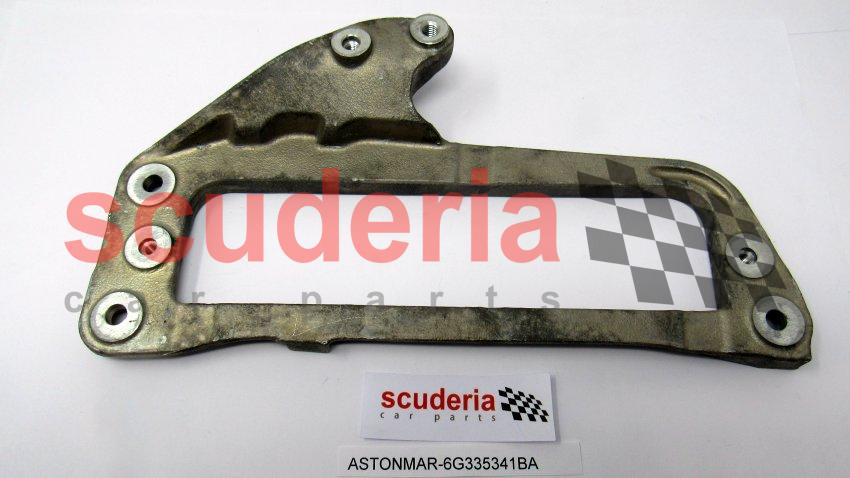

21	6G335341BA	Bracket, ECU Mounting, LH	6G335341BA Bracket, ECU Mounting, LH	-	1	Enquire
22	6G335340BA	Bracket, ECU Mounting, RH	6G335340BA Bracket, ECU Mounting, RH	-	1	Enquire
23	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
24	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
25	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
26	4G4316740AB	PAD - HOOD ON COWL	4G4316740AB PAD - HOOD ON COWL	-	2	Enquire
27	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD RHD	-	1	Enquire
28	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front	-	1	Enquire
29	61315A9D334	Switch, trailer coupling	61315A9D334 Switch, trailer coupling	-	10	Enquire
30	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	2	Enquire
31	SY9Y04792ABW	IP MAIN ASSEMBLY LHD	SY9Y04792ABW IP MAIN ASSEMBLY LHD	-	1	Enquire
32	SY9Y20123PC	DOOR ASSY LH	SY9Y20123PC DOOR ASSY LH	-	1	Enquire
34	GOAD43F28406AA	UNDERFLR RE CLS PLT	GOAD43F28406AA UNDERFLR RE CLS PLT	-	2	Enquire
35	GOAD43F8741AA	UNDERFLOOR REINF CLOSING PLATE	GOAD43F8741AA UNDERFLOOR REINF CLOSING PLATE	-	2	Enquire
36	GOAD43F110023AA	TNL REINF EXTR	GOAD43F110023AA TNL REINF EXTR	-	1	Enquire
37	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	48	Enquire
38	AD43F111K36AA	TUNNEL REINFORCEMENT FRONT	AD43F111K36AA TUNNEL REINFORCEMENT FRONT	-	1	Enquire
39	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
40	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER	-	4	Enquire
41	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	-	A/R	Enquire
42	83305B5FCF7	Tension plate	83305B5FCF7 Tension plate	-	1	Enquire
43	84105B76FA7	Telematic Communication Box 4	84105B76FA7 Telematic Communication Box 4	-	1	Enquire
44	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	12	Enquire
45	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
46	AD43F17B863AA	REAR BUMPER SIDE BRACKET LH	AD43F17B863AA REAR BUMPER SIDE BRACKET LH	-	1	Enquire
47	AD43F17B862AA	REAR BUMPER SIDE BRACKET RH	AD43F17B862AA REAR BUMPER SIDE BRACKET RH	-	1	Enquire
48	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	5	Enquire
49	SY9Y5G221AC	HEAT SHIELD INTERMED	SY9Y5G221AC HEAT SHIELD INTERMED	-	1	Enquire
50	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
51	22AA708GP	SEAL BELT DOOR INR RH	22AA708GP SEAL BELT DOOR INR RH	-	1	Enquire
52	SY9Y14025BB	FRT DR TR LINK RHS P	SY9Y14025BB FRT DR TR LINK RHS P	-	1	Enquire
53	AD43F17B681AA	REAR BUMPER CENTRE BRACKET	AD43F17B681AA REAR BUMPER CENTRE BRACKET	-	1	Enquire
54	AD43F17B930AA	REAR BUMPER OUTER BRACKET	AD43F17B930AA REAR BUMPER OUTER BRACKET	-	1	Enquire
55	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	7	Enquire
