Aston Martin GT RAPIDE (2010-2019) - Body Structure - Body Dash & Cowl

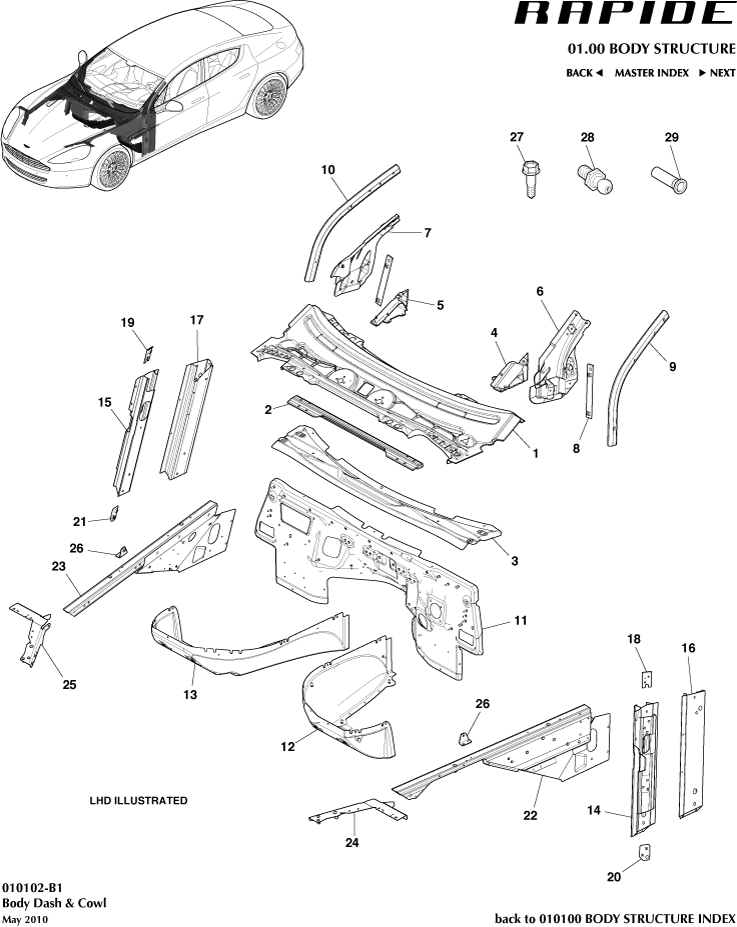

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9YF21410AA	FRONT DOOR GLASS RHS	SY9YF21410AA FRONT DOOR GLASS RHS Structural Cat. A only	-	1	Enquire
-	SY9YSE6C524BA	VCT UNIT-INLET	SY9YSE6C524BA VCT UNIT-INLET Structural Cat. A only	-	1	Enquire
-	AD43F01760BC	PNL DH UPPER RHD	AD43F01760BC PNL DH UPPER RHD Structural Cat. A only	-	1	Enquire
1	61355B5EBF9	Seat module	61355B5EBF9 Seat module Structural Cat. A only	-	1	Enquire
2	6G3310414AB	MBR FRT CS AT DH	6G3310414AB MBR FRT CS AT DH Structural Cat. A only	-	1	Enquire
3	36115B8E769	Set, wheel & winter tyre style 994	36115B8E769 Set, wheel & winter tyre style 994 Structural Cat. A only	-	1	Enquire
4	GOAD43F8875AA	Casting, Plenum Interface LH	GOAD43F8875AA Casting, Plenum Interface LH Structural Cat. A only	-	1	Enquire
5	61355B6CEC1	Body Domain Controller BDC	61355B6CEC1 Body Domain Controller BDC Structural Cat. A only	-	1	Enquire
6	SY9Y500B84AA	RADAR COVER	SY9Y500B84AA RADAR COVER Structural Cat. A only	-	1	Enquire
7	AD43A02570AA	A PILLAR LOWER CASTING RH	AD43A02570AA A PILLAR LOWER CASTING RH Structural Cat. A only	-	1	Enquire
9	SY9Y5B540AA	RIDE HEIGHT BKT CTRL	SY9Y5B540AA RIDE HEIGHT BKT CTRL Structural Cat. A only	-	1	Enquire
10	11155B4D319	Ball pin	11155B4D319 Ball pin Structural Cat. A only	-	1	Enquire
11	AD43F01760AD	PNL DH UPR LHD	AD43F01760AD PNL DH UPR LHD Structural Cat. A only	-	1	Enquire
12	AD43F01613AA	PNL DH SD LH	AD43F01613AA PNL DH SD LH Structural Cat. A only	-	1	Enquire
13	SY9Y120609AA	AM003 DUP OWN ENG	SY9Y120609AA AM003 DUP OWN ENG Structural Cat. A only	-	1	Enquire
14	GOAD43F02661AA	PLR FRT BDY LWR FRT LH	GOAD43F02661AA PLR FRT BDY LWR FRT LH Structural Cat. A only	-	1	Enquire
15	GOAD43F02660AA	PLR FRT BDY LWR FRT RH	GOAD43F02660AA PLR FRT BDY LWR FRT RH Structural Cat. A only	-	1	Enquire
16	GOAD43F02663AA	Pillar, External Front Body Lower LH	GOAD43F02663AA Pillar, External Front Body Lower LH Structural Cat. A only	-	1	Enquire
17	GOAD43F02662AA	EXT FRT BDY PLR RH	GOAD43F02662AA EXT FRT BDY PLR RH Structural Cat. A only	-	1	Enquire
18	34322333206	Hose clamp	34322333206 Hose clamp Structural Cat. A only	-	1	Enquire
19	AD43F71490AA	Nutplate, A Post Hinge Upper RH	AD43F71490AA Nutplate, A Post Hinge Upper RH Structural Cat. A only	-	1	Enquire
20	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
21	6G3315110AA	NUTPLATE A POST LWR	6G3315110AA NUTPLATE A POST LWR Structural Cat. A only	-	1	Enquire
22	AD4316B247AA	FENDER FRONT UPPER ASSY LH SERVICE	AD4316B247AA FENDER FRONT UPPER ASSY LH SERVICE Service Assy,Structural Cat. A only	-	1	Enquire
23	AD4316B246AA	FENDER FRNT UPPER REINF ASSY RH SERVIC	AD4316B246AA FENDER FRNT UPPER REINF ASSY RH SERVIC Service Assy,Structural Cat. A only	-	1	Enquire
24	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH Structural Cat. A only	-	1	Enquire
25	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH Structural Cat. A only	-	1	Enquire
26	AD43F18178AB	BRACKET GAS DAMPER MOUNTING	AD43F18178AB BRACKET GAS DAMPER MOUNTING -	-	2	Enquire
27	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	4	Enquire
28	1R12640101AA	Ball Stud	1R12640101AA Ball Stud -	-	2	Enquire
29	SY9Y3600GCW	STEERING WHEEL	SY9Y3600GCW STEERING WHEEL 2 per tube,Structural Cat. A only	-	4	Enquire
