Aston Martin GT RAPIDE (2010-2019) - Handles & Locks Mechanisms - Front Door Latch

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

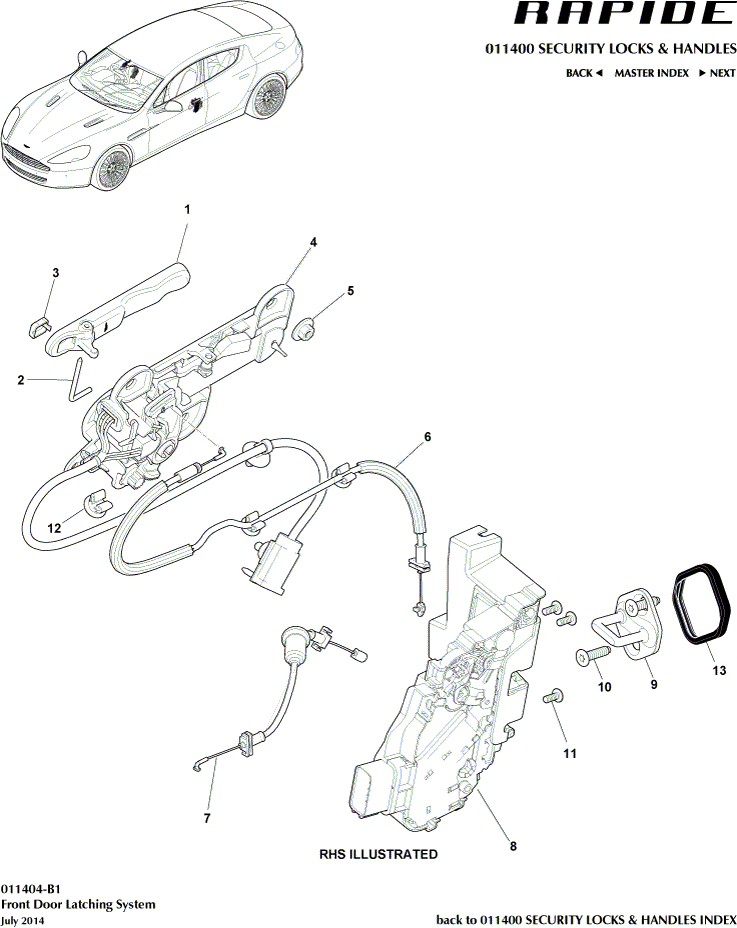

Handles & Locks Mechanisms - Front Door Latch of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3322405AC
Handle Blade Assy, LH
Carbon 		- 1 Enquire
- CD3322404AC
Handle Blade Assy, RH
Carbon 		- 1 Enquire
- 4G43224A72AH
DUMMY LIGHT LENS
From F052826 		- 2 Enquire
- AD43F218A01BB
CABLE ASSY DR I/S
From VIN F05171. 1 per latch 		- 2 Enquire
- 6G436510234
LT ASSY FRT DR DB LK
- 		- 1 Enquire
1 SY9Y9142DA
HTS BRKT
Standard 		- 2 Enquire
2 4G43224A68AA
Pivot Pin, Outside Handle
- 		- 2 Enquire
3 4G43224A72AG
DUMMY LIGHT LENS
Up To VIN F05825 		- 2 Enquire
4 7G43226A28AE
HANDLE DOOR EXT FRT
- 		- 2 Enquire
6 AD43221A00AA
CBL ASSY DR OS H
1 per door handle 		- 2 Enquire
7 AD43F218A01BA
CABLE ASY DR I/S
Up to VIN F05170. 1 per latch 		- 2 Enquire
8 6G436510233
LT ASSY FRT DR DB LK
- 		- 1 Enquire
9 AD436510001
Striker, Front Door
1 per latch 		- 2 Enquire
10 AD43AA0231AA
SCREW M8x34 CSK FLAT TORX - STAINLESS
2 per striker 		- 4 Enquire
11 703746
SCREW-M6x16 PAN TORX
3 per latch assy 		- 6 Enquire
12 704443
Clip, Plastic, 5 x 6.5 x 2
- 		- 1 Enquire
13 FD43278H42AA
DOOR STRIKER SEAL
From 15MY 		- 2 Enquire
