Body Sealing - Dynamic Weatherstrips

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Body Sealing - Dynamic Weatherstrips

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

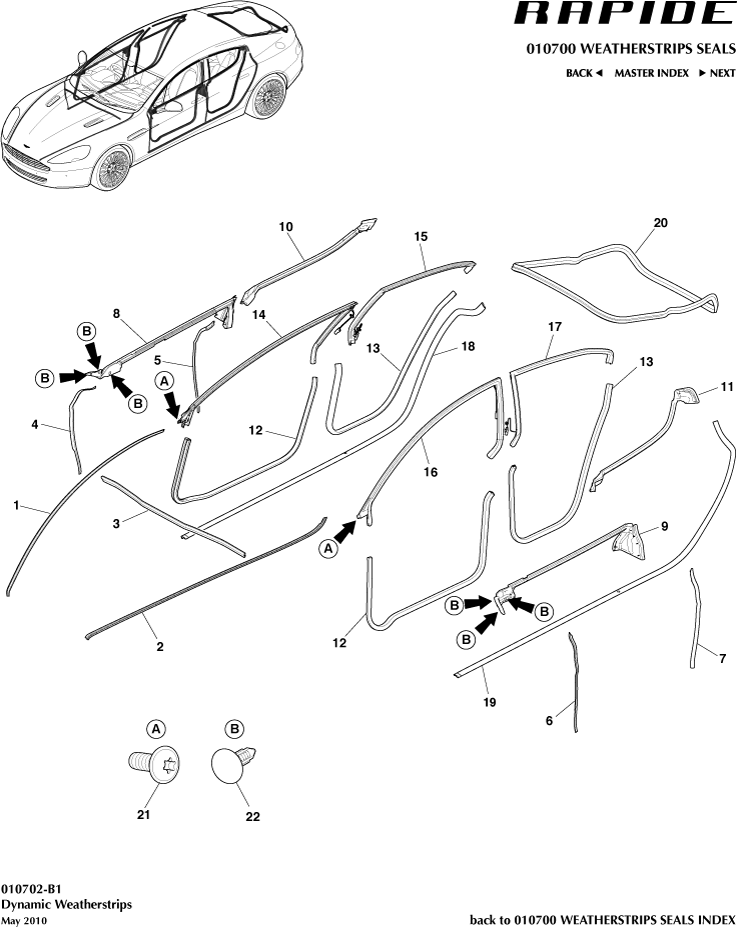

Body Sealing - Dynamic Weatherstrips of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3316K816AA
Weatherstrip Extrusion, Bonnet Rear
Rapide S 		- 1 Enquire
- ED43F20708EA
RHF DOOR PRIM ASSY
From VIN F04731 		- 1 Enquire
- ED43F20708FA
DR PRIM SEAL ASY-RHR
From VIN F04728 		- 1 Enquire
- ED43F20709EA
LHF DOOR PRIM ASSY
From VIN F04691 		- 1 Enquire
1 4G4316A014AF
Weatherstrip, Bonnet RH
- 		- 1 Enquire
2 4G4316A015AF
Weatherstrip, Bonnet LH
- 		- 1 Enquire
3 4G4316K816AC
WEATHERSTRIP EXTRUSION HOOD REAR
- 		- 1 Enquire
4 AD43F20556AB
DR MARGIN SEAL FRT
- 		- 1 Enquire
5 ED43F20556BA
WSTRIP MGIN RR DR RH
- 		- 1 Enquire
6 AD43F20557AB
DR MARGIN SEAL FRT
- 		- 1 Enquire
7 ED43F20557BA
WSTRIP MGIN RR DR LH
- 		- 1 Enquire
8 ED43F20570AA
DOOR WAIST SEAL INR
- 		- 1 Enquire
9 ED43F20571AA
DR WAIST SEAL INR LH
- 		- 1 Enquire
10 ED43F20572AA
WSTRIP INR RR DR RH
- 		- 1 Enquire
11 ED43F20573AA
WSTRIP INR RR DR LH
- 		- 1 Enquire
12 ED43F20708CB
WEATHERSTRIP PRIMED LOWER FRONT
Un-flocked Texture 		- 2 Enquire
13 ED43F20708DB
WSTRIP PRIM LWR RR
Un-flocked Texture 		- 2 Enquire
14 AD43F20708EB
RHF DOOR PRIM ASSY
Up to VIN F04730 		- 1 Enquire
15 AD43F20708FB
RHR DOOR PRIM ASSY
Up to VIN F04727 		- 1 Enquire
16 AD43F20709EB
LHF DOOR PRIM ASSY
Up to VIN F04690 		- 1 Enquire
17 ED43F20709FA
LHR DOOR PRIM ASSY
- 		- 1 Enquire
18 ED43F25324BA
MRGN SL LWR RR RH
- 		- 1 Enquire
19 ED43F25325BA
MRGN SL LWR RR LH
- 		- 1 Enquire
20 AD43F43720AC
W/STRIP LUGGAGE COMP
- 		- 1 Enquire
21 703746
SCREW-M6x16 PAN TORX
- 		- 2 Enquire
22 702213
Pin, Push-in
- 		- 6 Enquire
