Body Sealing - Soft Sealing

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Body Sealing - Soft Sealing

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

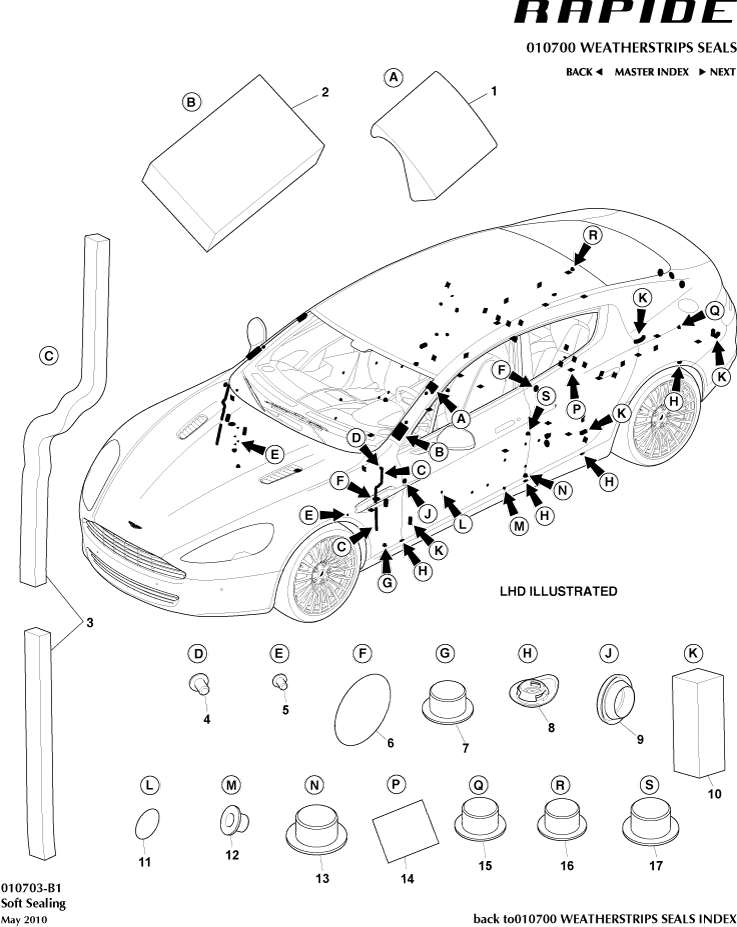

Body Sealing - Soft Sealing of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 AD4328110AA
BAFFLE FOAM 10x15 mm
- 		- A/R Enquire
4 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic
- 		- 2 Enquire
5 4G43N811191AA
Rubber Plug, 7mm, Black Thermoplastic
- 		- 5 Enquire
6 4G43L20220AA
Seal Patch, Large 50mm
- 		- 12 Enquire
7 6G33N806457AA
Rubber Plug, 20mm, Black Thermoplastic
- 		- 2 Enquire
9 6G332273AA
GROMMET - P/BRAKE CABLE 25mm
- 		- 2 Enquire
10 7147255757
Self-locking hex bolt
- 		- A/R Enquire
11 4G43L20222AA
Small Seal Patch for Door Mod
- 		- 26 Enquire
12 6G3325919AA
Rubber Plug, 12mm, Black Thermoplastic
- 		- 2 Enquire
13 6G33N804814AA
Rubber Plug, 24mm, Black Thermoplastic
- 		- 2 Enquire
14 6G43F78410AA
Sealing Pad, Al Butyl, 35 x 35
- 		- 41 Enquire
15 4G43N808070AA
Rubber Plug, 19mm, Black Thermoplastic
- 		- 2 Enquire
16 4G43N804138AA
Rubber Plug, 18mm, Black Thermoplastic
- 		- 1 Enquire
17 6G33N804263AA
Rubber Plug, 22mm, Black Thermoplastic
- 		- 1 Enquire
