Rear Bumper, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Rear Bumper, 'AMR'

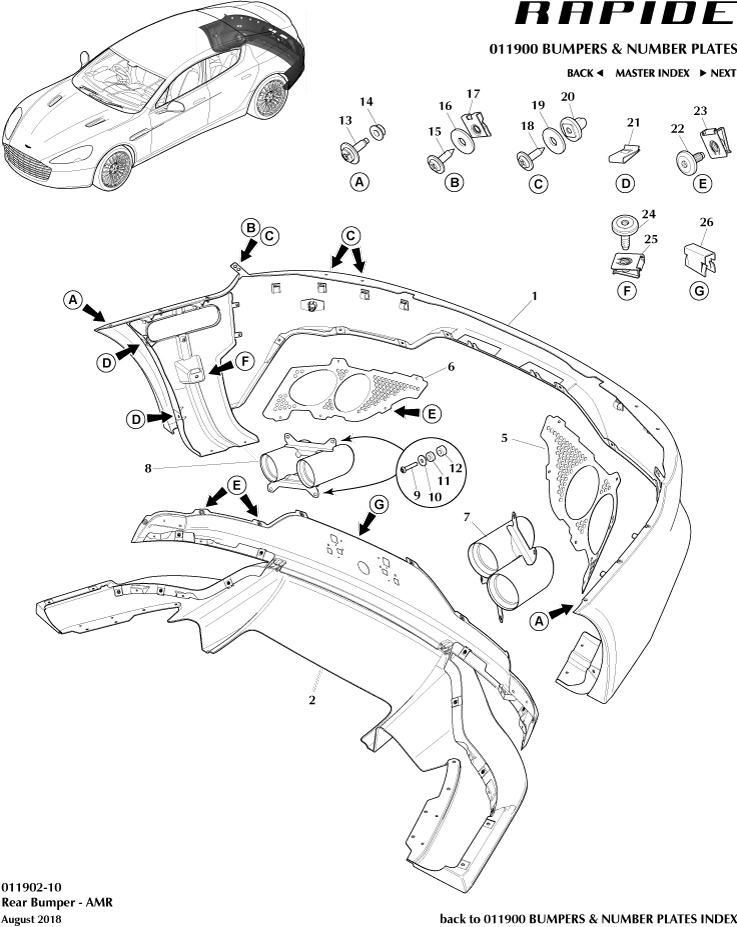

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	KD4317K835BB	CVR ASSY RR BMPR	KD4317K835BB CVR ASSY RR BMPR Federal	-	1	Enquire
-	KD4317E955BB	DIF RR BMPR ASY	KD4317E955BB DIF RR BMPR ASY With Graphic	-	1	Enquire
1	KD4317K835AB	CVR ASY RR BMPR	KD4317K835AB CVR ASY RR BMPR RoW	-	1	Enquire
2	KD4317E955AC	DIF RR BMPR ASY ROW	KD4317E955AC DIF RR BMPR ASY ROW -	-	1	Enquire
5	KD4301949AA	MESH RR DIF LH	KD4301949AA MESH RR DIF LH -	-	1	Enquire
6	KD4301948AA	MESH RR DIF RH	KD4301948AA MESH RR DIF RH -	-	1	Enquire
7	KD435K239BA	EXHAUST Q FIN LH BLK	KD435K239BA EXHAUST Q FIN LH BLK Black	-	1	Enquire
8	KD435K238BA	TAIL PIPE EMBELISHER	KD435K238BA TAIL PIPE EMBELISHER Black	-	1	Enquire
9	61125A8D627	Cable set rear bumper	61125A8D627 Cable set rear bumper -	-	8	Enquire
10	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK -	-	8	Enquire
11	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) Pack of 10	-	8	Enquire
12	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) Pack of 10	-	8	Enquire
13	703743	SCREW &WASHER M6x18	703743 SCREW &WASHER M6x18 -	-	2	Enquire
14	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	2	Enquire
15	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	2	Enquire
16	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
17	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 -	-	2	Enquire
18	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	2	Enquire
19	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
20	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) Pack of 10	-	2	Enquire
21	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	4	Enquire
22	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD -	-	10	Enquire
23	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	10	Enquire
24	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
25	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
26	8D3360302BB	Clip, Fir Tree, Flat Head	8D3360302BB Clip, Fir Tree, Flat Head -	-	5	Enquire
