Interior Trim & Ornamentation - B Pillar Trim of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - B Pillar Trim

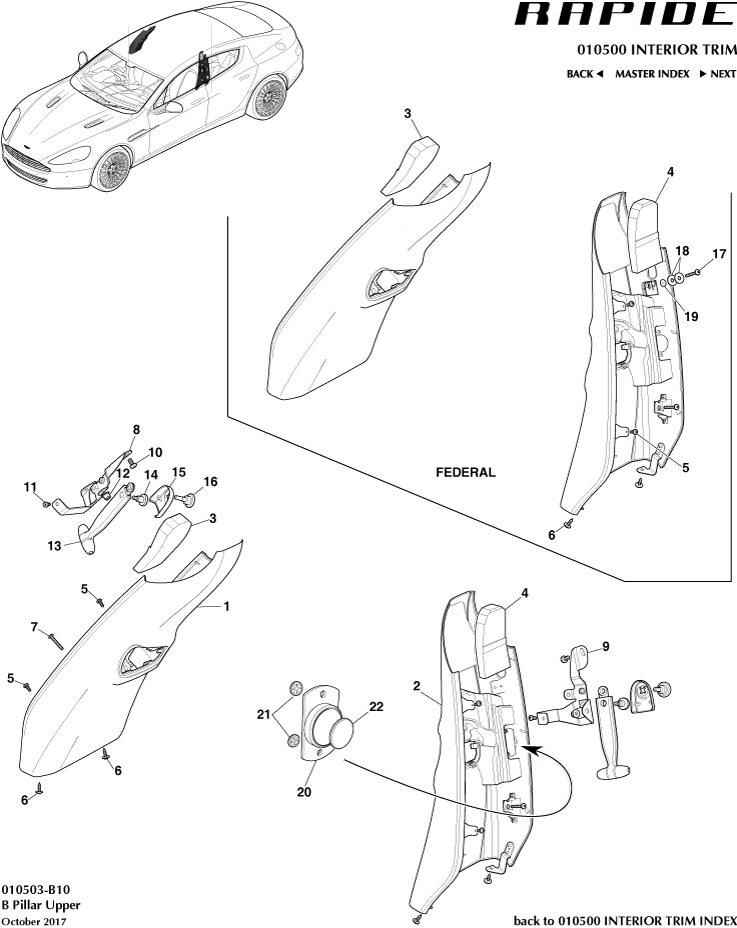

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y3N240AC	BRKT ASY PSNGR LHD	SY9Y3N240AC BRKT ASY PSNGR LHD Federal	-	1	Enquire
-	KD4324396AAW	B POST UPPER TRIM RH	KD4324396AAW B POST UPPER TRIM RH AMR, RoW with Grab Handle	-	1	Enquire
-	SY9Y2L202QA	BRACKET FUEL TANK	SY9Y2L202QA BRACKET FUEL TANK AMR, Federal with Grab Handle	-	1	Enquire
-	36115B8E780	Kit, wheel & winter tyre style 994	36115B8E780 Kit, wheel & winter tyre style 994 AMR, Less Grab Handle	-	1	Enquire
-	AD4324397BBW	PNL ASY BD SD CTR LH	AD4324397BBW PNL ASY BD SD CTR LH Federal	-	1	Enquire
-	KD4324397AAW	B POST UPR TRM ASSLH	KD4324397AAW B POST UPR TRM ASSLH AMR, RoW with Grab Handle	-	1	Enquire
-	54345B8DCF5	Retrofit, RR31 coloured starlight, LCI	54345B8DCF5 Retrofit, RR31 coloured starlight, LCI AMR, Federal with Grab Handle	-	1	Enquire
-	SY9Y3K186AD	KNL ASY - FRT WHL RH	SY9Y3K186AD KNL ASY - FRT WHL RH AMR, Less Grab Handle	-	1	Enquire
-	KD4318576AAW	GRAB ASSY	KD4318576AAW GRAB ASSY AMR	-	2	Enquire
-	KD4318565BA	FIN GRAB HNDL	KD4318565BA FIN GRAB HNDL AMR, 1 per handle	-	2	Enquire
-	KD4318564BAW	COAT HOOK	KD4318564BAW COAT HOOK AMR	-	2	Enquire
1	AD4324396ABW	PNL ASY BDY SD CTR PNL UPR TR RH	AD4324396ABW PNL ASY BDY SD CTR PNL UPR TR RH RoW	-	1	Enquire
2	54345B8DD03	Retrofit, RR31 Coloured starlight	54345B8DD03 Retrofit, RR31 Coloured starlight RoW	-	1	Enquire
3	SY9Y3200AC	STR GR ASY ELEC LHD	SY9Y3200AC STR GR ASY ELEC LHD -	-	1	Enquire
4	SY9Y3G592BB	INTERIOR FDM	SY9Y3G592BB INTERIOR FDM -	-	1	Enquire
5	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head 2 per panel	-	4	Enquire
6	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) 2 per panel	-	4	Enquire
7	SY9Y391108AA	O RING 4MM X 17MM	SY9Y391108AA O RING 4MM X 17MM 1 per panel	-	2	Enquire
8	AD43313A68AD	BRACKET BODY PILLAR UPPER REAR	AD43313A68AD BRACKET BODY PILLAR UPPER REAR -	-	1	Enquire
9	AD43313A67AD	BRACKET BODY PILLAR UPPER REAR	AD43313A67AD BRACKET BODY PILLAR UPPER REAR -	-	1	Enquire
10	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head 1 per bracket	-	2	Enquire
11	704619	Screw, M5 x 10, Tri Lobe	704619 Screw, M5 x 10, Tri Lobe 1 per bracket	-	2	Enquire
12	703614	Nut, M6	703614 Nut, M6 1 per bracket	-	2	Enquire
13	SY9Y31112HCW	RR QTR UPR ASY RH	SY9Y31112HCW RR QTR UPR ASY RH -	-	2	Enquire
14	SY9Y23945XBW	DOOR ASSY TRIM LH	SY9Y23945XBW DOOR ASSY TRIM LH 1 per handle	-	2	Enquire
15	AD4318565ABW	FIN GRAB HNDL	AD4318565ABW FIN GRAB HNDL 1 per handle	-	2	Enquire
16	AD4318564ACW	COAT HOOK	AD4318564ACW COAT HOOK -	-	2	Enquire
17	SY9Y391108AA	O RING 4MM X 17MM	SY9Y391108AA O RING 4MM X 17MM Federal 2 per panel	-	4	Enquire
18	SY9Y2C029AA	DIRT SHIELD REAR LH	SY9Y2C029AA DIRT SHIELD REAR LH Federal 2 per panel	-	4	Enquire
19	SY9Y31112ICW	RR QTR UPR ASY RH	SY9Y31112ICW RR QTR UPR ASY RH Federal 1 per panel	-	2	Enquire
20	AD4341848AA	FLG FLR TOP HAT MAG	AD4341848AA FLG FLR TOP HAT MAG -	-	2	Enquire
21	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On -	-	4	Enquire
22	AD4303724AA	STOPPER PAD	AD4303724AA STOPPER PAD -	-	2	Enquire
