Instrument and Console Panels - Rear Console of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Rear Console

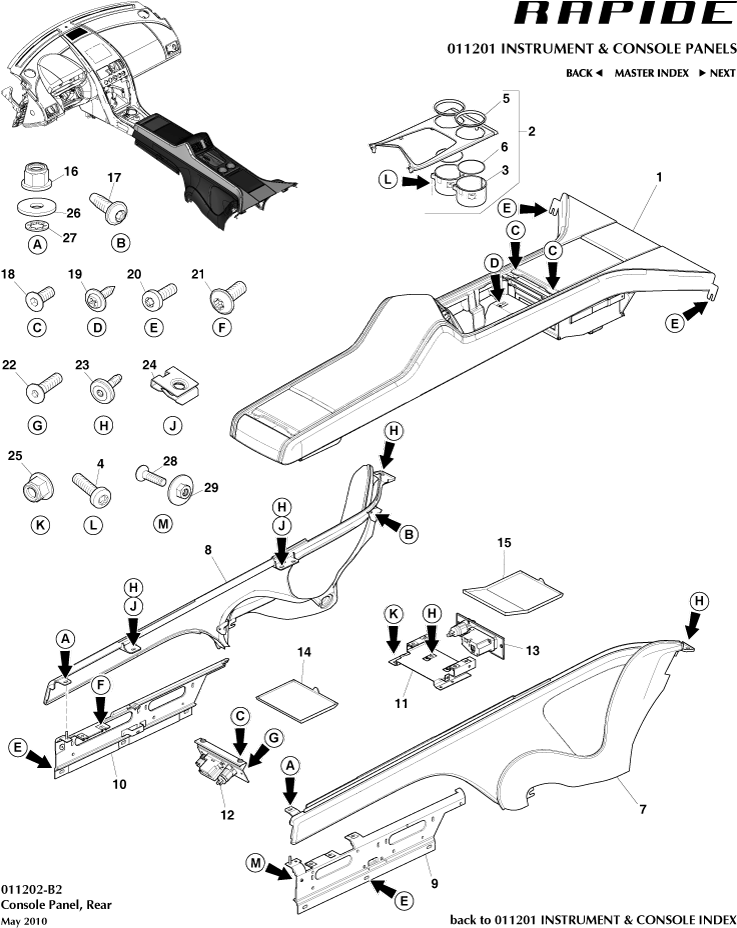

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD43045C76AAW	UPPR CNSL ASSY COMP	FD43045C76AAW UPPR CNSL ASSY COMP Piano Black Air Vent	-	1	Enquire
-	FD43045C76BAW	UPPR CNSL ASSY COMP	FD43045C76BAW UPPR CNSL ASSY COMP Ice Mocha Air Vent	-	1	Enquire
-	HY53130B14BA	CAB CRPT BRKT RHD	HY53130B14BA CAB CRPT BRKT RHD Roll 50m	-	A/R	Enquire
-	61445B4FD85	Adapter charging cable	61445B4FD85 Adapter charging cable From 15MY	-	1	Enquire
-	FD43046A56AB	CNSL BRKT ASY FRT RH	FD43046A56AB CNSL BRKT ASY FRT RH From 15MY	-	1	Enquire
1	AD43045C76AHW	UPPR CNSLASSY COMP	AD43045C76AHW UPPR CNSLASSY COMP Iridium Air Vent	-	1	Enquire
2	AD4304463AAW	REAR CONSOLE PLATE FINISHER ASSY	AD4304463AAW REAR CONSOLE PLATE FINISHER ASSY -	-	1	Enquire
3	CD4313560AAW	CP/HLDR ASSY	CD4313560AAW CP/HLDR ASSY -	-	2	Enquire
4	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW 3 per Cup Holder	-	6	Enquire
5	AD4329745AA	CUPHOLDER FINISHER	AD4329745AA CUPHOLDER FINISHER -	-	2	Enquire
6	AD43040K60AA	CP/HLDR INSRT BASE	AD43040K60AA CP/HLDR INSRT BASE -	-	2	Enquire
7	AD43047K63AEW	CNSL LWR SD ASY LHS	AD43047K63AEW CNSL LWR SD ASY LHS -	-	1	Enquire
8	AD43047K64AEW	CNSL LWR SD ASY RHS	AD43047K64AEW CNSL LWR SD ASY RHS -	-	1	Enquire
9	AD43046A57AF	CNSL BRKT ASY FRT LH	AD43046A57AF CNSL BRKT ASY FRT LH Up To 15MY	-	1	Enquire
10	AD43046A56AF	CNSL BRKT ASY FRT RH	AD43046A56AF CNSL BRKT ASY FRT RH Up To 15MY	-	1	Enquire
11	SY9Y6A003BB	ENGINE MOUNT	SY9Y6A003BB ENGINE MOUNT -	-	1	Enquire
12	AD43045L26AD	PLT ASY CNSL PNL FRT	AD43045L26AD PLT ASY CNSL PNL FRT Less Switches	-	1	Enquire
13	65775A67847	Sensor door	65775A67847 Sensor door -	-	1	Enquire
14	AD43047A03AB	INSRT CNSL STWG FRONT	AD43047A03AB INSRT CNSL STWG FRONT -	-	1	Enquire
15	12525A681A2	Heat protection bag	12525A681A2 Heat protection bag -	-	1	Enquire
16	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head -	-	8	Enquire
17	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw -	-	2	Enquire
18	703725	SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL	703725 SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL -	-	4	Enquire
19	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	2	Enquire
20	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	8	Enquire
21	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	4	Enquire
22	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black Black	-	4	Enquire
23	6G33FA0115AB	Screw & Washer, M6 x 20, Torx Hd	6G33FA0115AB Screw & Washer, M6 x 20, Torx Hd -	-	10	Enquire
25	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	8	Enquire
26	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	8	Enquire
27	704620	Washer, Internal Shakeproof, M6	704620 Washer, Internal Shakeproof, M6 -	-	8	Enquire
28	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	2	Enquire
29	13A5572CP	SERVICE PANEL - DOOR LATCH - LH	13A5572CP SERVICE PANEL - DOOR LATCH - LH -	-	2	Enquire
